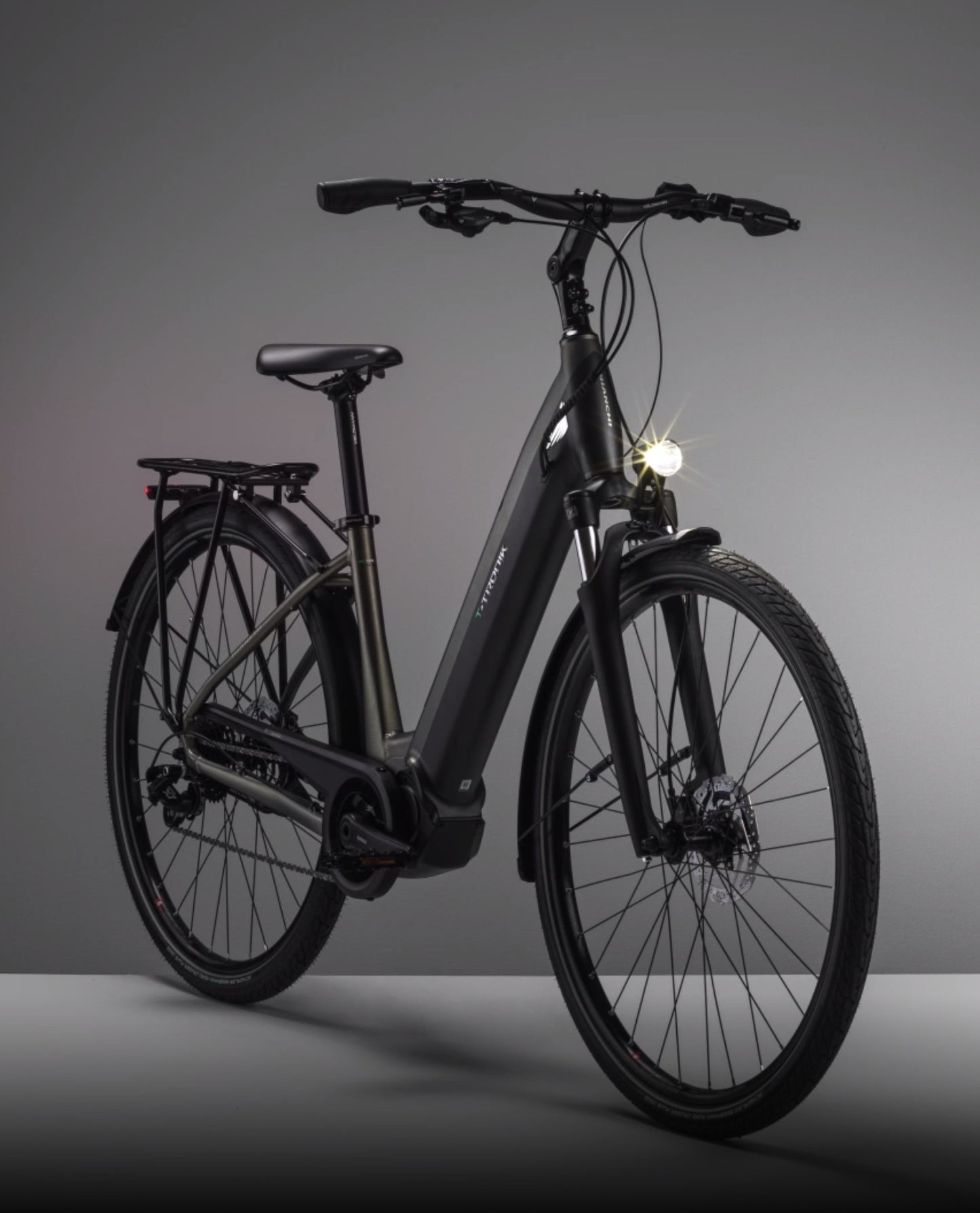

Bianchi: T-Tronik C-Type Sunrace Step-thru
Bianchi: T-Tronik C-Type Sunrace Step-thru
Regular price
$2,960.00 CAD
Regular price
$3,700.00 CAD
Sale price
$2,960.00 CAD
Unit price
/
per
Shipping calculated at checkout.
Bianchi T-Tronik C-Type Sunrace – Urban Elegance Meets Practical Power
The Bianchi T-Tronik C-Type Sunrace brings elegance, efficiency, and a touch of sophistication to urban e-bikes. Crafted to make city commuting and recreational rides effortless, the T-Tronik C-Type combines intelligent design with robust electric assistance, making it a top choice for riders seeking a balance of performance, accessibility, and style. Let us delve into what makes this e-bike a standout in the urban category.
Frame: Accessibility with the Step-Through Design
The T-Tronik C-Type is designed with an urban-friendly step-through frame, ensuring accessibility without compromising style:
- Lightweight Aluminum Frame: Built from Aluminum PG 6061, the frame strikes a perfect balance between durability and weight, making it easy to maneuver while ensuring a sturdy ride.
- Elegant and Practical Design: With an eye-catching Iridescent Bronze or Blue Stone finish combined with Dark Graphite accents, the frame exudes a modern aesthetic, ideal for urban surroundings.
- Suspended Geometry: Designed for comfort, this geometry complements the bike's fork suspension, providing a smoother ride over rough city streets or uneven terrain.
The step-through design and robust construction make this frame accessible for all riders, allowing easy mounting and dismounting, even in daily wear.
Motor and Battery: Reliable Power and Efficiency
Equipped with the Shimano STEPS E6100 motor and a Phylion 417Wh integrated battery, the T-Tronik C-Type delivers a powerful yet smooth riding experience:
- Shimano STEPS E6100 Motor: This 250W motor with 60Nm torque provides ample power for tackling inclines, city intersections, or cruising along urban roads. The motor’s responsive nature ensures riders receive support exactly when needed.
- Phylion 417Wh Battery: Integrated seamlessly into the frame, this battery offers a range of up to 95km on a single charge, ideal for daily commutes or extended city explorations. The battery’s placement within the downtube enhances the bike’s balance and stability.
Together, the motor and battery system provides smooth, reliable power that makes city commuting effortless, whether on short errands or longer adventures.
Fork and Suspension: Smooth and Comfortable Rides
For added comfort over various terrains, the T-Tronik C-Type features a Suntour SF15-NEX-E25-DS fork:
- 63mm Travel: The 63mm suspension travel effectively absorbs shocks and bumps, ensuring smooth riding on rough urban roads or light off-road trails.
- Durable Build: The fork is built for e-bike performance, with disc brake compatibility and fender mounts for added versatility and functionality.
This suspension fork is crafted to complement the bike’s urban geometry, offering comfort and control even on bumpy streets.
Drivetrain and Shifting: Efficient Performance with Sunrace Components
The T-Tronik C-Type is equipped with the reliable Sunrace DLE903N 9-speed shifter and Sunrace derailleur:
- Wide Gear Range: The rear derailleur can handle a maximum of 42T, allowing riders to tackle a range of inclines and maintain a comfortable cadence.
- FSA SMN E-Bike Forged Crankset: This crankset with a 38T chainring is specifically designed for e-bikes. It enhances pedalling efficiency and durability under higher torque loads from the motor.
The Sunrace system provides a smooth, precise shifting experience, ensuring riders can easily adapt to varying terrains and speeds.
Braking System: Reliable Safety with Hydraulic Disc Brakes
Safety is paramount, and the T-Tronik C-Type ensures responsive stopping power with Radius BH-M960 hydraulic disc brakes:
- 160mm Rotors: These brakes use 160mm center lock rotors, providing reliable stopping power that performs consistently across various weather conditions.
- Direct Mount System: The direct mount setup increases braking precision, making it ideal for the quick stops often needed in urban riding.
This braking system offers peace of mind, knowing that safe and secure stopping power is always available, regardless of riding conditions.
Wheels and Tires: Built for Urban Versatility
For dependable performance on city streets, the T-Tronik C-Type is equipped with Velomann 29" wheels and Chaoyang E-Liner City 700x45C tires:
- 29-inch Wheels: The larger wheel size enhances stability and offers a smoother, more comfortable ride, especially over uneven city streets.
- Chaoyang E-Liner City Tires: Designed for urban environments, these tires offer excellent puncture protection and grip, ensuring riders can confidently tackle city terrain without worry.
This wheel and tire combination perfectly suit urban riding, providing comfort, control, and durability for a reliable commuting experience.
Comfort and Ergonomics: Adjustable and Accessible Features
Every detail of the T-Tronik C-Type is engineered for rider comfort and ergonomics:
- Adjustable Stem: The Velomann 31.8mm stem allows quick adjustments, ensuring each rider finds their optimal, comfortable riding position.
- Herrmans GRIPset: Ergonomically designed for comfort, these grips reduce hand fatigue and increase control, making them ideal for extended city rides.
- Selle Royal Essenza Saddle: Known for comfort, this saddle supports riders through short commutes and longer trips, ensuring comfort mile after mile.
These ergonomic features work together to create a comfortable and customizable riding experience catering to the needs of urban riders.
Accessories and Lighting: Practical Additions for Urban Riders
The T-Tronik C-Type includes a range of practical accessories to meet the demands of urban riders:
- Integrated Lights: The Herrmans Mr GO front light with one hundred lumens and the Axa Juno rear light ensure visibility up to 400 meters ahead and 500 meters behind, enhancing safety on the road, especially in low-light conditions.
- Racktime Rear Carrier: With a load capacity of 25kg, this rear rack is ideal for carrying groceries, work essentials, or personal items, making the T-Tronik C-Type a practical choice for commuters.
- SKS Mudguards: These full-length mudguards offer protection from road spray, keeping riders clean and dry in varied weather conditions.
These accessories enhance the bike’s urban functionality, making it a versatile and practical option for daily use.
The Perfect Blend of Style, Comfort, and Power for Urban Living
The Bianchi T-Tronik C-Type Sunrace is a beautifully designed e-bike that combines power, practicality, and style uniquely. With its powerful Shimano E6100 motor, accessible step-through frame, and thoughtful ergonomic features, it is tailored for those who seek ease, efficiency, and elegance in their daily rides. From urban commutes to leisurely outings, the T-Tronik C-Type provides a reliable and stylish ride, making every trip a seamless, enjoyable experience.
Whether you are a daily commuter or a weekend explorer, the Bianchi T-Tronik C-Type Sunrace is the ideal partner for a smoother, more stylish journey through the city.
Share
Couldn't load pickup availability
Specifications
Battery
Battery - 417Wh Phylion integrated battery
Frame and Fork
Frame - T-Tronik C-Type Frame 28" Urban,
Suspended fork geometry, Alu PG 6061 32/37 Max shell, disc brake, O.L.D.135mm,
D/T battery, size: 43/47
Fork - Suntour SF15-NEX-E25-DS-700C-63 PostMount disc
brake, 1.1/8"", travel 63mm, compatible with fender, OLD 100mm, Quick
relase type
Wheels And Brakes
Brakes - Radius, BH-M960, 900mm hose length, Direct
Mount, w/adapter Radius BH-M960, 1700mm hose length, Direct Mount, w/ J-kit, w/
adapter
Wheels - Velomann 29", 23-622, 32 hole black
Tire - Chaoyang E-Liner City 700x45C, 60tpi
Motor
Motor - Shimano E6100 250W, torque 60Nm
Full Spec
Motor Unit
Motor - Shimano E6100 250W, torque 60Nm
Battery - 417Wh Phylion integrated battery
Frameset
Frame - T-Tronik C-Type Frame 28" Urban,
Suspended fork geometry, Alu PG 6061 32/37 Max shell, disc brake, O.L.D.135mm,
D/T battery, size: 43/47
Fork - Suntour SF15-NEX-E25-DS-700C-63 PostMount disc
brake, 1.1/8"", travel 63mm, compatible with fender, OLD 100mm, Quick
relase type
Headset - FSA 1.1/8" 44H-N10P
Drivetrain
Shifters - Sunrace DLE903N, 9sp, w/ optical gear
Rear Derailleur - Sunrace, 9sp, max 42T
Crankset - FSA SMN E-Bike Forged Crankset, 170mm
CHAINRING, SM-CRE61, 38T, FOR CHAIN LINE 46.5MM
Bottom Bracket - included in the motor
Chain - KMC E9s EPT
Brakes
Brakes - Radius, BH-M960, 900mm hose length, Direct
Mount, w/adapter Radius BH-M960, 1700mm hose length, Direct Mount, w/ J-kit, w/
adapter
Rotor - Radius Rotors RT900, 160mm, center lock
Wheels
Wheels - Velomann 29", 23-622, 32 hole black
Tire - Chaoyang E-Liner City 700x45C, 60tpi
Cockpit
Stem - Velomann, 28,6 mm steerer ID Clamp, 31,8 mm
barbore
Handlebar - Velomann 31.8/680mm, RISE 20MM, SWEEP 15°
Grips - Herrmans GRIPset Oxy DD29BR/BL 130mm/130mm
black-black,d.22mm
Saddle
Seatpost - Velomann, lenght 350mm, diam. 31,6mm, 0mm
seatback, Al2014 shaft + alloy head
Saddle - Selle Royal, Essenza
Accessories
Pedals - VP black aluminum, w/reflector
Mudguards - SKS Mudguard profile A60S, internal cable
routing on the rear mudguard, secuclip/esc clip, protector on front and rear
tail, protector on front mudguard
Kickstand - Ursus R81 WAVE REAR, 28" - 40mm
fixing plate (load 35kg)
RearCarrier - Racktime, RT Eco 2.0, 28", black
w/ roundstay 350mm
FrontLight - Herrmans Mr GO
RearLight - Axa Juno
Manufacturer Warranty
CONVENTIONAL WARRANTY BIANCHI FRAME
This Conventional Warranty on the Bianchi frame is provided in addition to the legal warranty.
Therefore, this Conventional Guarantee does not intend in any way to limit, exclude or prejudice the right of consumers to benefit from the legal guarantee provided by the applicable law.
CONVENTIONAL WARRANTY CONDITIONS ON BIANCHI FRAME
The conventional warranty on the Bianchi frame is provided for 5 years from the date of delivery of the frame itself provided that all of the following conditions are met:
- The frame must be new (so it must not be used or second hand).
- The frame must be part of the Bianchi range and have been purchased from one of the authorised Bianchi dealers listed on the website www.bianchi.com or from authorised online dealers (hereinafter all briefly referred to as “Authorised Dealers”).
- The buyer must provide proof of purchase of the frame;
- The buyer must provide proof of the electronic registration of the frame, by scanning the QR code on the frame itself (near the bottom bracket/engine area) or via the website www.bianchi.com under “Register your Bianchi”;
- The buyer must check the frame purchased together with the Bianchi Dealer before taking possession of it, in order to ascertain its conformity to his/her expectations and/or the presence of any visible defects. Registration is equivalent to confirmation of having carried out the aforementioned conformity check with the Bianchi Dealer and of having received the Product in perfect condition and ready for use, equipped with the relevant User Manual(s).
- The frame must be used in accordance with the intended use stated in the relevant User Manual.
- The purchaser must have kept the frame in a correct state of maintenance according to the instructions contained in the User Manual and any technical interventions must be carried out only by specialized personnel belonging to the Reseller network.
- The person requesting warranty intervention, pursuant to this Conventional Warranty, must be associated with the purchased product.
- The technical assessment to be carried out at the Bianchi laboratory must confirm the original defect of the frame.
It is also specified that the services in execution of this Conventional Warranty will be provided exclusively through the Retailer from whom the buyer purchased the frame and/or from whom he had the frame assembled on the Bianchi bicycle. To this end, the buyer must contact the aforementioned Retailer.
WHAT TO DO IF A CONVENTIONAL WARRANTY INTERVENTION IS NECESSARY
In the event that, during the period of validity of the Conventional Warranty, the frame requires repair due to an original defect, the purchaser must immediately contact the Bianchi Dealer where the frame was purchased and/or assembled on a Bianchi bicycle, describing the problem that occurred and having it examined, bringing with him the proof of purchase and the registration confirmation of the purchased Bianchi product.
The intervention under the Conventional Warranty may be performed exclusively through the Dealer from whom the frame was purchased and/or assembled. In all cases of purchase from a Dealer where the latter is unable to provide the warranty service directly, the Dealer will arrange for the collection of the frame (or if necessary the bicycle) and its shipment to Bianchi for repair, as well as the subsequent return of the product to the end customer. Within the limits permitted by law, shipping costs will be borne by the person requesting the warranty service and will be reimbursed by Bianchi only upon specific request and against documentation certifying the amount paid, provided that the operation of this Conventional Warranty has been recognized. In the event of a request for repair or replacement in relation to which the non-operation of the Conventional Warranty is ascertained, Bianchi will provide the requester with the cost of the intervention, before carrying it out. In any case, the costs for returning the frame (defective or repaired) to the buyer will be borne by the latter.
In the event that the buyer turns to a Dealer other than the one from which he purchased and/or assembled the frame, such Dealer may refuse to take charge of the management of the practice. In the event that the Dealer other than the one from which the product was purchased agrees, however, to take charge of the practice, he may request additional costs from the buyer which will remain entirely at the buyer's expense.
SCOPE OF APPLICATION AND EXCLUSIONS
This Conventional Warranty covers only the original defects of conformity of the frames and is provided exclusively in favor of buyers who are consumers or any natural person who acts for purposes that do not fall within the scope of their commercial, industrial, artisanal or professional activity. The Conventional Warranty does not cover the costs of workmanship for the replacement of the frame with a new one (e.g. labor costs for the replacement of the frame). These costs will in any case be quantified to the buyer before the warranty intervention is carried out.
Furthermore, all damages resulting from: normal wear and tear, lack of maintenance, use of corrosive products, transport, accidents, misuse, abuse or negligence, aesthetic defects not reported to the Dealer at the time of purchase of the frame, incorrect assembly of accessories, modification of the frame by adding or modifying unauthorized components, use for an incorrect intended use, alterations in color and/or deterioration of decals and stickers (due to environmental/climatic effects and/or other harmful agents) are excluded from the Conventional Warranty. The duration of this Conventional Warranty will be calculated exclusively from the date of first purchase of the frame. Consequently, following repair or replacement of the frame, the duration of the Conventional Warranty will remain unchanged and a new warranty period will not begin to run on the repaired or replaced frame. If the need to replace the frame is recognized under this Conventional Warranty, Bianchi will have the right to deliver to the purchaser a similar frame of equal value or with equal technical characteristics, if the same frame is no longer available and/or in production.
