Marin 2024 Fairfax E ST – The Ultimate Urban Commuter
The Marin 2024 Fairfax E ST is a modern electric bike designed for urban commuters who seek a blend of comfort, performance, and style. Built with a versatile step-through frame, this e-bike is perfect for navigating city streets, commuting to work, or enjoying weekend rides through town. With its powerful Shimano motor, high-capacity battery, and thoughtfully selected components, the Fairfax E ST offers a seamless and enjoyable riding experience that makes every commute and errand a breeze. Here is a deep dive into the features and specifications that set this e-bike apart.

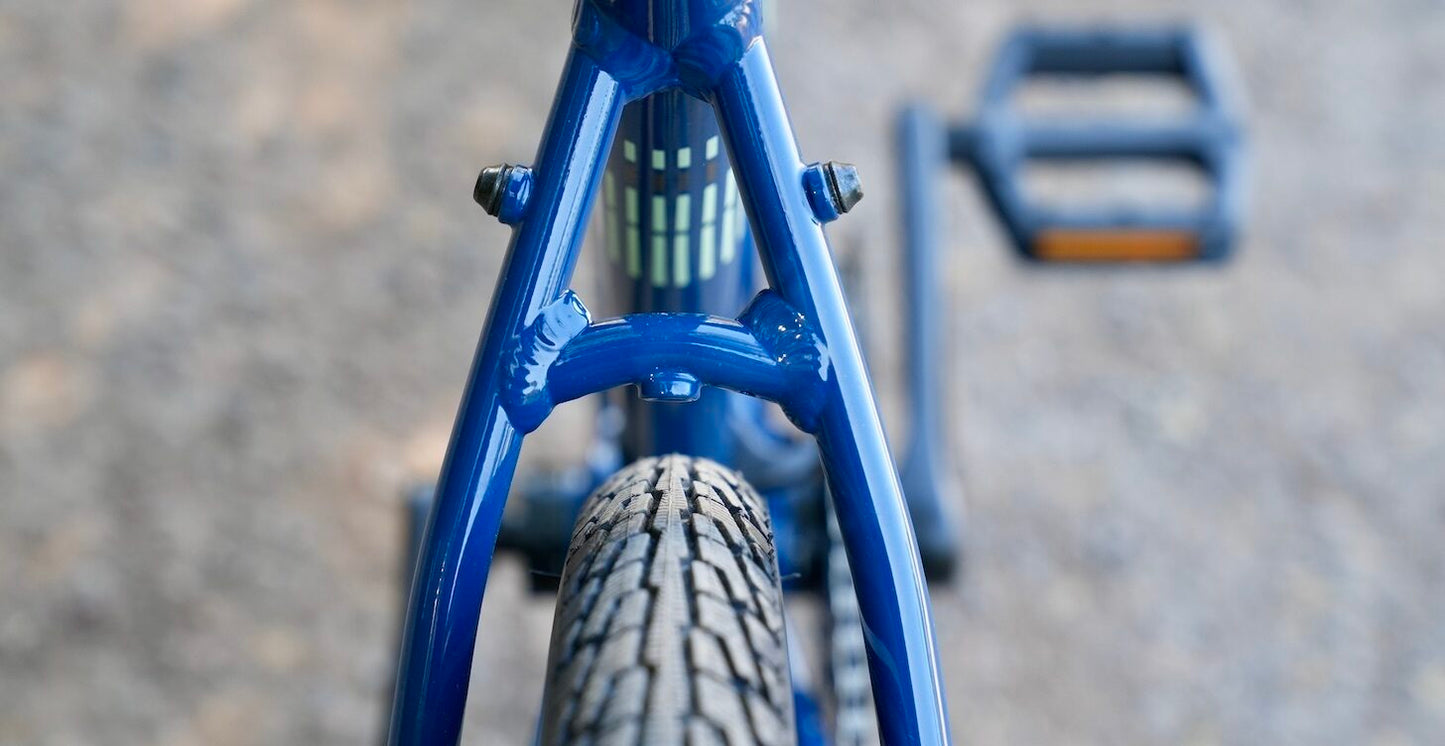

Frame: Series 2 Aluminum Step-Through Frame – Comfortable and Easy Access
At the heart of the Fairfax E ST is the Series 2 Aluminum Step-Through Frame, crafted to provide durability while maintaining a lightweight and agile feel. The step-through design allows for effortless mounting and dismounting, making it particularly convenient for riders in urban environments or those who carry loads. This design is perfect for riders of all ages and fitness levels, offering versatility whether you are commuting, running errands, or exploring your city.
The frame is engineered with butted and formed aluminum tubing, ensuring a strong structure while keeping the bike lightweight and maneuverable. It is equipped with integrated mounts for racks, fenders, and other accessories, making it a practical option for those looking to personalize their ride for urban use. This integrated approach to design ensures that the bike remains sleek and balanced even when fully equipped for commuting or carrying gear.

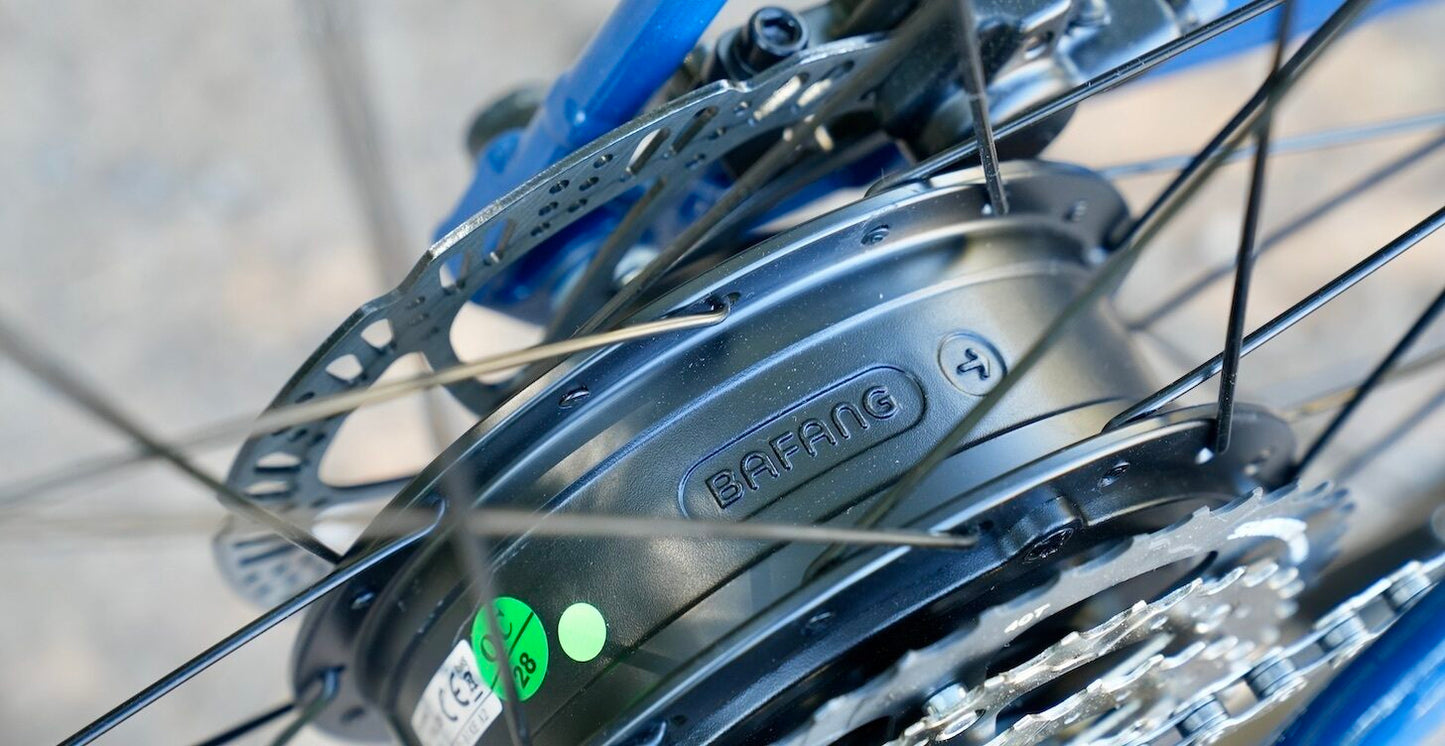

Motor: Bafang 250 Watt Hub Motor – Efficient and Quiet Power for Urban Commutes
The Marin Fairfax E ST is powered by the Bafang 250 Watt Hub Motor, delivering 250W of power and 40Nm of torque. This lightweight and compact motor is specifically designed for urban e-bikes, providing the perfect balance of power and efficiency for navigating city streets, tackling gentle hills, and maintaining a steady cruising speed. The Bafang motor ensures riders experience a smooth, responsive boost with each pedal stroke, making commutes quicker and less strenuous.
With its quiet operation, the motor seamlessly integrates into the bike’s design, delivering power without sacrificing the natural feel of pedalling. Whether you are riding in traffic or gliding through parks, the Bafang’s assistive technology provides a consistent, reliable boost that makes city riding effortless.
Battery: Bafang 340Wh, 36V, In-Tube – Long Range and Convenient Charging
The Fairfax E ST features a Bafang 340Wh, 36V, securely mounted on the downtube for optimal weight distribution and stability to complement the Bafang motor. This battery offers a range of 19-62 miles (30-100 km) depending on rider weight, terrain, and assist level, making it ideal for short commutes and longer weekend rides.
The battery is removable and lockable, providing convenience and security for urban riders. Whether you charge the battery while it is mounted on the bike or remove it to charge indoors, the Bafang's design ensures flexibility and ease of use. With a quick charging time, you will have minimal downtime between rides, making it a practical solution for daily use in the city.
Brakes: Tektro HD-M275 Hydraulic Disc Brakes – Reliable Stopping Power
Safety is paramount when commuting through busy city streets, and the Fairfax E ST is equipped with Tektro HD-M275 Hydraulic Disc Brakes featuring 180mm rotors. These hydraulic brakes offer smooth and powerful stopping power, ensuring precise control even in wet or slippery conditions.
The hydraulic system delivers consistent braking performance with minimal effort, making riders feel confident when maneuvering through traffic or stopping suddenly. This advanced braking technology enhances safety and control, making the Fairfax E ST a dependable choice for urban commuters who require reliable daily performance.

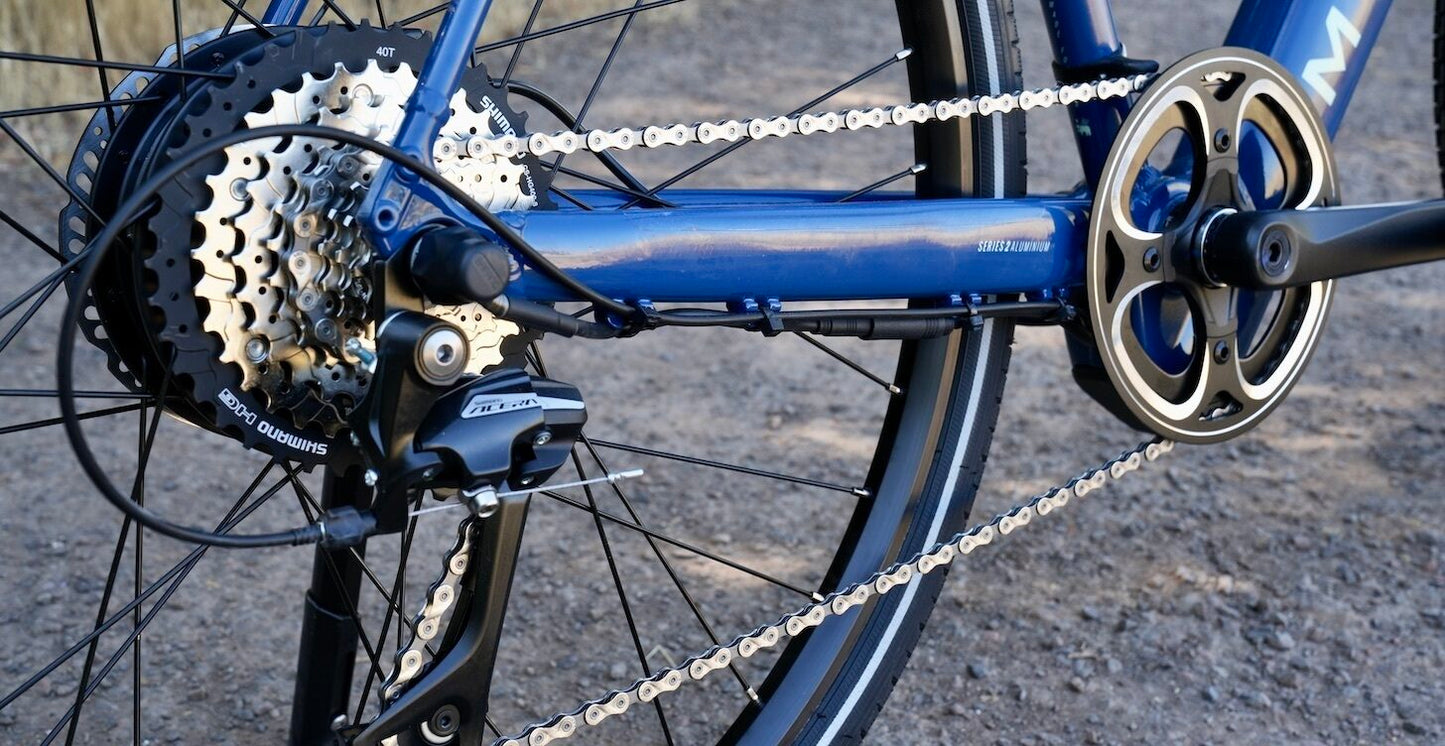

Drivetrain: Shimano HG-400, 8-Speed, 11-40T – Smooth Shifting and Versatility
The Shimano HG-400, 8-Speed, 11-40T drivetrain offers a range of gears suitable for navigating various urban terrains. Whether riding flat city streets or ascending gentle inclines, the Altus system provides the flexibility needed to maintain an efficient pedaling cadence.
This drivetrain is known for its smooth and precise shifting, allowing for quick gear changes that keep you in control during your ride. The simplicity and reliability of the 8-speed system make it an ideal match for the Fairfax E ST, ensuring minimal maintenance while providing all the versatility needed for urban and suburban riding.
Wheels and Tires: Vee Tire, City Cruz, 700Cx40mm, Puncture Protection, Reflective Sidewall, Wire Bead with Marin Aluminum Double Wall, Disc Specific – Stability and Comfort
The Fairfax E ST rolls on Vee Tire, City Cruz, 700Cx40mm, Puncture Protection, Reflective Sidewall, and Wire Bead tires to provide a smooth and comfortable ride over various surfaces. These wider tires offer increased traction and stability, enhancing rider confidence on pavement, bike lanes, or light gravel paths. The generous tire volume acts as a natural suspension system, smoothing out bumps and imperfections and ensuring that each ride is comfortable and controlled.
The double-wall aluminum rims provide durability while keeping the bike light and responsive, making the Fairfax E ST agile enough to navigate city streets easily. The high-quality rims and wider tires make this e-bike a reliable choice for urban commuting and leisurely rides.
Ergonomics and Comfort: Marin Mini Riser Alloy Handlebar and Plush Saddle
The Marin Fairfax E ST is designed with rider comfort in mind. The Marin Mini Riser Alloy Handlebar provides a natural and upright riding position that is ideal for urban riding, reducing strain on the back and shoulders. This handlebar configuration enhances control, allowing for confident steering through busy streets and tight corners.
The Marin City Plush Saddle, designed to provide maximum support during long rides, adds to the comfort. Whether you are commuting or taking a leisurely spin through the park, the saddle ensures that you remain comfortable, enhancing the overall riding experience.
The bike also features an alloy seat post, which is sturdy and adjustable, giving riders the flexibility to find their perfect riding position. Together, these components make the Fairfax E ST not only a high-performing e-bike but also one that prioritizes comfort and ergonomic design.
Accessories and Customization Options: Practical and Versatile
The Fairfax E ST is built with urban practicality in mind, offering multiple mounts for accessories like racks, fenders, and kickstands. Whether you need to carry groceries, commute to work with gear, or want to add some protection against the elements, this bike’s frame supports various configurations that allow you to tailor it to your needs.
With these mounting options, riders can transform the Fairfax E ST into a fully equipped urban commuter bike, making it as versatile as your lifestyle demands. The integrated wiring keeps the bike clean and streamlined, ensuring a professional look and reducing the risk of snagging when adding accessories.
The Perfect Urban Commuter for Everyday Adventures
The Marin 2024 Fairfax E ST is the ideal electric bike for riders looking for a versatile, comfortable, and reliable urban commuter. With its Bafang motor, lightweight step-through frame, and high-capacity battery, it is designed to make every ride efficient and enjoyable. From its powerful hydraulic brakes to its comfortable saddle and ergonomic handlebar, every detail is crafted to enhance your urban riding experience.
Why Choose the Marin Fairfax EST?
The Marin 2024 Fairfax E ST is the premier choice for urban commuters seeking a stylish, efficient, and comfortable e-bike. Its advanced technology, thoughtful design, and practical features make it the perfect companion for daily commutes, weekend explorations, and everything in between. Whether you are new to e-biking or an experienced rider, the Fairfax E ST offers a reliable and enjoyable ride every time.
Share
Couldn't load pickup availability
Specifications
Battery
Bafang 340Wh, 36V, In-tube
19-62 Miles/30-100km (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 6 Hours
Frame and Fork
Frame - Series 2 Fitness, E-Bike Specific, 6061 Aluminum, 700c Wheels, Disc Specific, Fitness Geometry, Step-Thru Top Tube, Kickstand Mount, Fender and Rack Mounts
Fork - 6061 Aluminum, Straight-Blade, Disc Mount, Fender and Rack Eyelets
Wheels And Brakes
Brakes Front - Tektro HDM-275 Hydraulic Disc, 160mm Rotor
Brakes Rear - Tektro HDM-275 Hydraulic Disc, 160mm Roto
Wheels - Marin Aluminum Double Wall, Disc Specific
Tires - Vee Tire, City Cruz, 700Cx40mm, Puncture Protection, Reflective Sidewall, Wire Bead
Motor
Crankset - Alloy Crank, Steel 42T Chainring, Ring Guard
Motor - Bafang 250 Watt Hub Motor, 40Nm Torque, 36H, North America Class 1 (20mph, 32km/h), and 16mph, 25km/h for the rest of the world
Full Spec
Frame
Series 2 Fitness, E-Bike Specific, 6061 Aluminum, 700c
Wheels, Disc Specific, Fitness Geometry, Step-Thru Top Tube, Kickstand Mount,
Fender and Rack Mounts
Fork
6061 Aluminum, Straight-Blade, Disc Mount, Fender and Rack
Eyelets
Rim
Marin Aluminum Double Wall, Disc Specific
Hub
Rear
Bafang 250 Watt Hub Motor, 40Nm Torque, 36H, North America
Class 1 (20mph, 32km/h), and 16mph, 25km/h for the rest of the world
Hub
Front
Forged Aluminum Alloy, 32H
Spokes
14g Stainless Steel
Tires
Vee Tire, City Cruz, 700Cx40mm, Puncture Protection,
Reflective Sidewall, Wire Bead
Derailleur
Rear
Shimano Acera, 8-Speed, Wide Range
Derailleur
Front
-
Shift
Lever
Shimano Altus 8-Speed RapidFire
Crankset
Alloy Crank, Steel 42T Chainring, Ring Guard
Bottom
Bracket
Integrated Torque Sensing, Sealed Cartridge Bearings, Square
Taper
Chain
KMC X8
Cassette
Shimano HG-400, 8-Speed, 11-40T
Brakes
Front
Tektro HDM-275 Hydraulic Disc, 160mm Rotor
Brakes
Rear
Tektro HDM-275 Hydraulic Disc, 160mm Rotor
Brake
Levers
Tektro Hydraulic
Handlebar
Marin Alloy Flat
Stem
Marin Alloy
Grips
Marin County
Headset
FSA, Orbit CE No.8B
Seatpost
Marin Alloy, 27.2mm
Saddle
Marin Fitness
Pedals
Marin Oso OEM Nylon Platform
Battery
Bafang 340Wh, 36V, In-tube
Controller
Bafang Handlebar Mount LED Switch & Display
Kickstand
Alloy Rear-Mount
Range,
Charging Time
19-62 Miles/30-100km (Based on Rider Weight, Terrain,
Climate and Level of Assist Used), 6 Hours
Manufacturer Warranty
Limited Warranty
Marin Mountain Bikes, Inc. ("Marin") warrants to the original retail purchaser ("you") that the Marin product for which you received this warranty is free from defects in material and workmanship for the periods set forth on the below warranty table.
FRAMES Warranty Period
(From date of purchase)
- Carbon Fiber Frames and Forks: 5 Years
- Rigid Frames and Forks: Lifetime
- Full Suspension Frames: 5 Years
Complete Bicycle
The complete bicycle is warranted for one year (from date of purchase), including all original parts on the bicycle except tires, tubes, chains and other wear & tear items. Paint and decals are covered under this warranty.
This warranty period starts from the date of original retail purchase, and is valid only in North America. For warranty periods in other countries, please contact the distributor in your country. The warranty is only valid if the bicycle is purchased from, and assembled by, an authorized Marin dealer.
Warranty Limitations
This warranty does NOT cover suspension forks, and rear shocks on full suspension bikes. These items are covered by the suspension component manufacturer’s warranty. Please contact the suspension component manufacturer for any warranty needs.
This warranty is only offered to the original retail purchaser of the product, and is not transferable to a subsequent purchaser. Marin's sole obligation under this warranty is to either, at its discretion:
- Repair the claimed defect at no charge.
- Exchange the product with a product that is new or which is at least functionally equivalent to the original product.
- Offer a credit amount, determined by Marin, towards the purchase of a new product. Marin must be notified in writing of any claim under this warranty within 60 days of any claimed lack of conformity of the product.
- You may be responsible for some labor charges at your local bike shop, or some shipping charges, including return shipping if your bike is determined not to be a warranty.
The duration of any implied warranty or condition, of merchantability, fitness for a particular purpose, or otherwise, on this product shall be limited to the duration of the express warranty set forth above. In no event shall Marin be liable for any loss, inconvenience or damage, whether direct, incidental, consequential or otherwise, resulting from breach of any express or implied warranty or condition, of merchantability, fitness for a particular purpose, or otherwise with respect to this product, except as set forth herein. Some states or countries do not allow limitation on how long an implied warranty lasts and some do not allow exclusions or limitations of incidental or consequential damages, so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which may vary, from location to location. This warranty will be interpreted pursuant to the laws of the United States. The original English language version/meaning of this warranty controls over all translations and Marin is not responsible for any errors in translation of this warranty or any product instructions.
No company or persons (including employees or agents of Marin) are authorized to modify, enlarge or extend this warranty in any way or to make any other warranties, expressed or implied on behalf of Marin. This warranty is not intended to confer any additional legal, jurisdictional or warranty rights to you other that those set forth herein or required by law. If any portion of this warranty is held to be invalid or unenforceable for any reason, such finding will not invalidate any other provision.
Useful Product Life
Bicycles have an unquantifiable useful product life. The useful life span of a bicycle is affected by riding style, riding conditions, frame material and construction, and other factors. The warranty period offered by Marin does not guarantee that the bicycle will last forever, or for the life span of the original purchaser. Bicycles should be inspected regularly by an authorized Marin dealer, or qualified bicycle technician to identify any issues, which could lead to a failure. Whether a failed frame will be covered by this warranty, or not, will be determined solely by Marin Bikes, based on an evaluation of the failure, useful life, and any other relevant factors.
To Obtain Warranty Service: In order to exercise your rights under this limited warranty, the complete bicycle must be presented to an authorized Marin dealer for inspection, together with a receipt, bill of sale and other appropriate written proof of purchase, which identifies the bicycle by serial number. Any labor, postage, insurance, or shipping costs incurred in sending your product for service are the responsibility of the owner. Marin will not be responsible for products lost or damaged in shipping.
Warranty Determination: Once received by Marin or Authorized Marin Warranty Center, the product will be inspected to determine if it is covered by the Marin warranty. Only Marin or an Authorized Marin Warranty Center may determine if a product is warrantable. If the product is not covered under warranty, all replacement, repair, labor, and shipping costs are responsibility of the customer. Marin cannot return un-repairable unwarranted products to the consumer if they are unsafe to use in their unrepaired condition.
At no time may any retailer or distributor make representations of what is covered or not covered under this warranty without express written permission from Marin. Should a retailer or distributor replace product before consulting Marin, it is at the sole discretion of the retailer or distributor, and may not be reimbursed by Marin. When a product or part is exchanged, any replacement item becomes property of the customer and the returned product becomes the property of Marin, which may destroy it.
Warranty Exclusions
This warranty does not cover the following:
- Products that have been modified, neglected or poorly maintained, used for commercial purposes, misused or abused or involved in accidents. It is your responsibility to regularly examine the product to determine the need for normal service or replacement.
- Damage occurring during shipment of the products (such claims must be presented directly to the shipper).
- Products sold or distributed by Marin, which are covered by another sellers’ warranty; this Marin warranty does not extend, modify or replace any other warranty.
- Products whose serial number or other identifying marks (such as decals) have been altered, defaced or removed.
- Products that are purchased used, or in not-new condition without original packaging.
- Damage to products resulting from improper assembly or repair (or the techniques used), the use or installation of parts or accessories not compatible with the original intended use of the product, or the failure to follow the product warnings, installation and usage instructions.
- This warranty does not apply if the original product decals are removed
Suspension Setup
-
REAR SHOCK SETUP
Recommended Sag = 30%/19.5mm
Step 1: Set correct pressure in rear shock.
Step 2: Sit on the bike and cycle the suspension (*with correct riding gear).
Step 3: Reset O-ring and sit on the bike, DO NOT BOUNCE, carefully step off.
Step 4: Measure sag (from o-ring to seal of shock), If it does not match the bike’s recommended sag in millimeters repeat process.
Step 5: Adjust rebound setting to ensure proper control.
-
FORK SETUP
Marin recommends that all bikes front and rear suspension feel balanced
Step 1: After rear sag is set follow the recommended pressure from the fork manufacturer.
Step 2: Bounce evenly up and down on the bike, cycling the suspension up and down to make sure both front and rear suspension feel balanced, if the front does not match the rear add or release pressure.
Step 3: Once the bike feels balanced adjust the rebound damping to ensure proper control.
