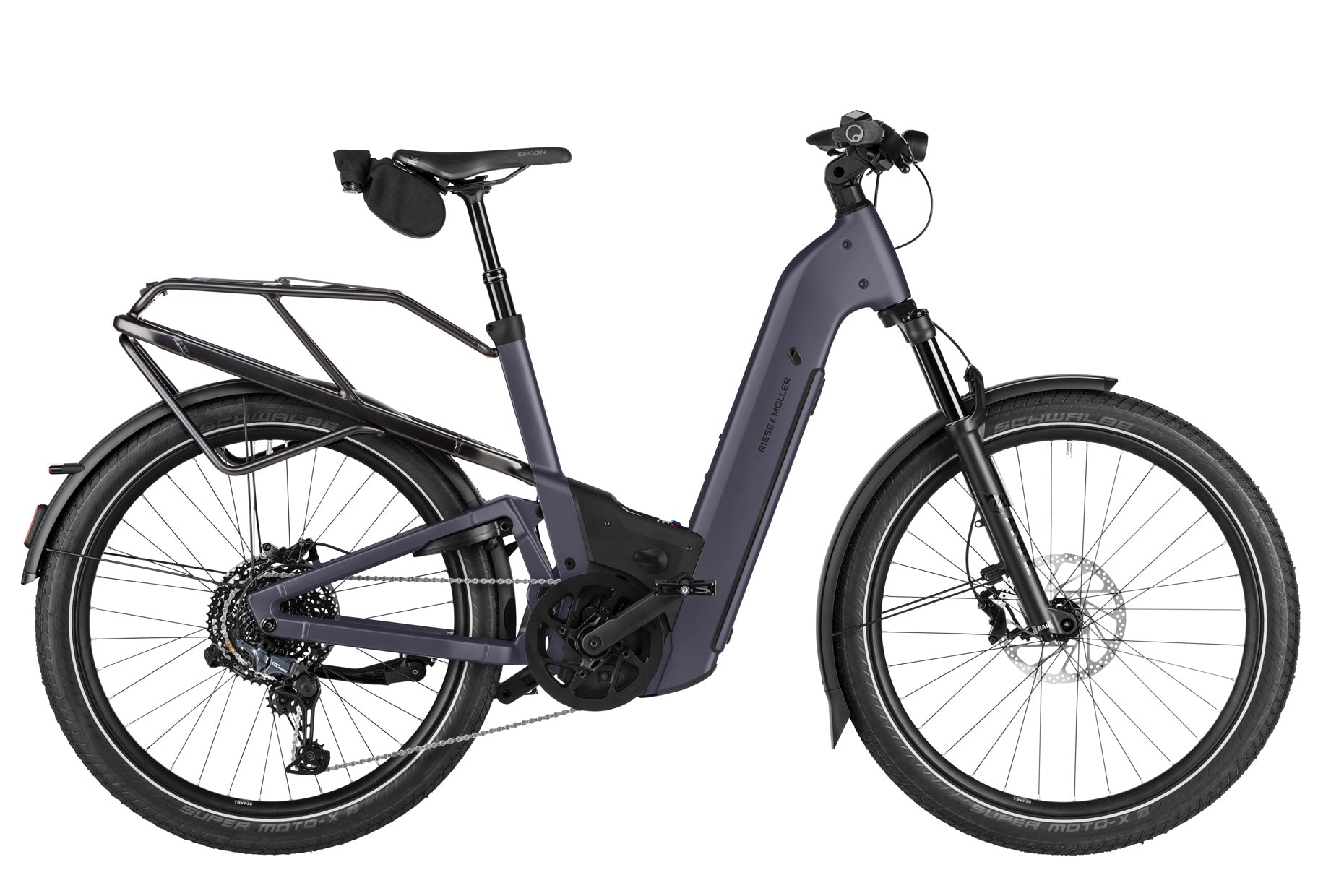

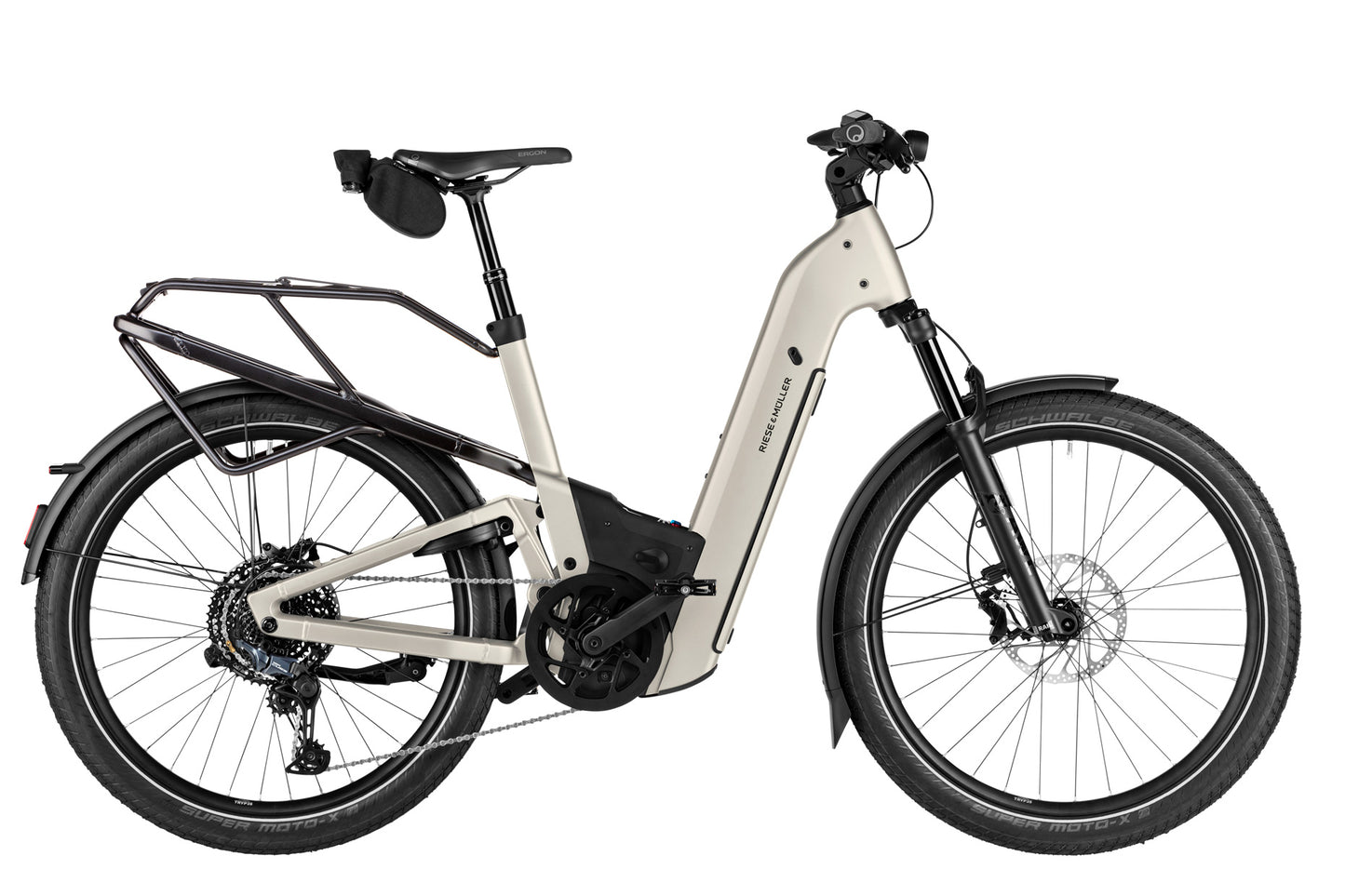

Riese & Müller Homeage5 - Rohloff (2026)

Riese & Müller Homeage5 - Rohloff (2026)

$14,189.00 CAD
$14,189.00 CAD
Sale Sold out
Shipping calculated at checkout.
Color: Night
Size

Riese & Müller Homage5 Rohloff

The Ultimate Expression of Power, Precision, and Endurance — Built to Redefine Touring Excellence.

Overview

The Riese & Müller Homage5 Rohloff sits at the absolute summit of eBike engineering — a masterpiece designed for riders who demand the very best. Combining the Rohloff E14 electronic 14-speed gear hub, Gates CDX Carbon Belt Drive, and Bosch Performance Line CX Smart System, the Homage5 Rohloff delivers unmatched precision, longevity, and smoothness.

With its Fox full-suspension Control Technology, integrated Bosch PowerTube 800 Wh battery, and option for a PowerMore 250 Wh range extender, this bike conquers both rugged backroads and polished urban streets with complete composure. Every detail — from its ergonomic cockpit to its Supernova lighting and ABS braking — is engineered for luxury, performance, and ultimate confidence.

This is more than a touring eBike. It’s an engineering marvel that transforms power into art.

Key Highlights

  • Motor: Bosch Performance Line CX (BDU384Y), 100 Nm torque
  • Battery: Bosch PowerTube 800 Wh Horizontal + optional PowerMore 250 Wh range extender
  • Display: Bosch Kiox 500 (optional Kiox 300 or Purion 200)
  • Drivetrain: Rohloff E14 electronic 14-speed hub
  • Drive System: Gates CDX Carbon Belt Drive (55T front / 19T rear)
  • Brakes: Tektro TRP HD-EU835 hydraulic disc brakes / optional Magura MT-C ABS
  • Suspension: Fox AWL 34 Air 120 mm (front) + Fox Float Rhythm SV 165x45 (rear)
  • Lighting: Supernova M99 Mini Pro-25 front / Supernova TL3 Pro rear with integrated brake light
  • Tires: Schwalbe Super Moto-X 62-584 Reflex / Schwalbe Johnny Watts 365 60-584
  • Frame Sizes: 47 cm / 51 cm / 56 cm
  • Colours: Night / Warm Silver
  • Weight: Approx. 33.5 kg

Design & Engineering

The Homage5 Rohloff represents the apex of Riese & Müller’s craftsmanship — a synthesis of refined power and intelligent design. Its low step-through frame offers effortless accessibility while maintaining exceptional torsional stiffness for stable handling.

The Fox full-suspension system ensures supreme comfort and control, allowing the rider to glide over irregular terrain in complete harmony. Whether you’re traversing steep mountain roads or long-distance touring routes, every component of the Homage5 Rohloff is optimized for precision, endurance, and ease.

With a seamless silhouette and integrated cable routing, the Homage5 Rohloff is as visually elegant as it is mechanically perfect.

Power & Performance

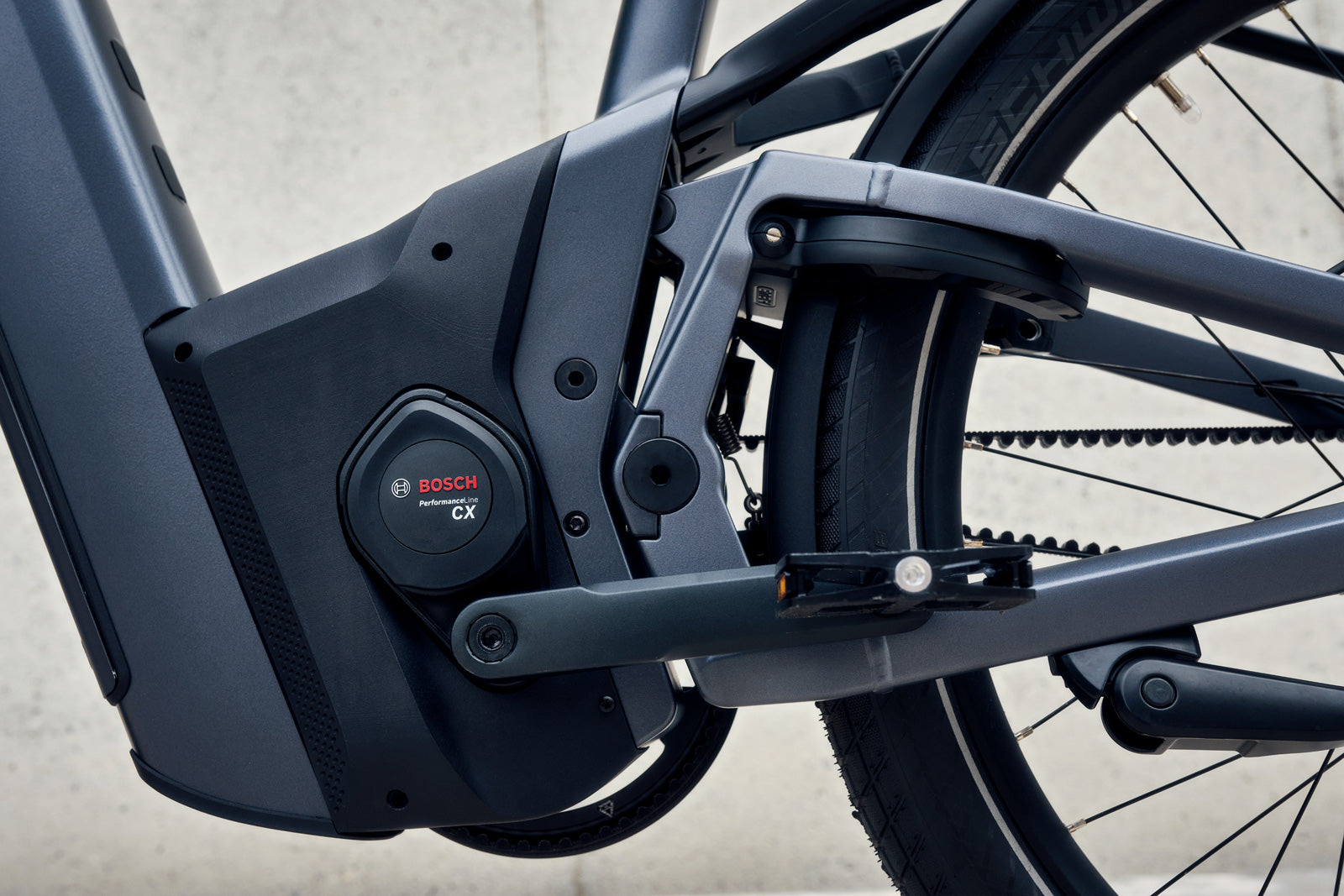

Bosch Performance Line CX Motor

At the heart of this eBike lies Bosch’s flagship Performance Line CX Smart System motor, offering 100 Nm of torque and adaptive support up to 32 km/h. Responsive and intuitive, the CX motor senses pedal force, cadence, and speed over 1,000 times per second — ensuring an incredibly natural power delivery.

It connects effortlessly to the Bosch eBike Flow App, enabling:

  • Power mode customization
  • Firmware updates and diagnostics
  • Ride data tracking and analysis
  • Theft protection and GPS integration

This is the most advanced motor Bosch has ever built — designed for effortless power and refined control on every climb and descent.

Bosch PowerTube 800 Wh + PowerMore 250 Wh

The Bosch PowerTube 800 Wh battery is a powerhouse built into the frame, giving the Homage5 Rohloff exceptional range and balance. The optional PowerMore 250 Wh extender increases capacity to an astonishing 1,050 Wh, making this one of the most capable touring setups available.

Together, these batteries allow riders to cover vast distances confidently, without range anxiety — perfect for ambitious expeditions or all-day adventures.

Transmission & Drivetrain

Rohloff Speedhub E14

The Rohloff E14 electronic gear hub defines mechanical perfection. Featuring 14 electronically controlled gears and a 526% gear range, it shifts automatically or on command with millisecond precision. Whether you’re climbing steep gradients or accelerating on flat terrain, the Rohloff adjusts seamlessly for an unbroken rhythm of motion.

Key Features:

  • Automatic or manual shifting via handlebar control
  • Shifts in just 180 milliseconds
  • Multi-gear downshift when stationary
  • Maintenance interval: only every 10,000 km
  • Exceptional longevity and smoothness

Gates CDX Carbon Belt Drive

Paired with the Rohloff E14 is the Gates CDX Carbon Belt Drive, offering silent, maintenance-free performance that lasts up to 10x longer than traditional chains. It eliminates grease, noise, and wear while providing flawless efficiency.

Configuration:

  • Front: 55T
  • Rear: 19T
  • CenterTrack design for stability and self-cleaning

This pairing — Rohloff + Gates — represents the ultimate drivetrain system for serious touring and long-term reliability.

Suspension & Ride Quality

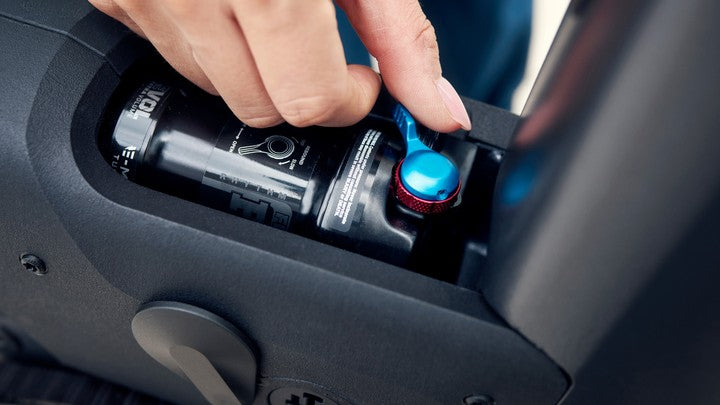

Fox Dual Suspension

The Fox AWL 34 Air (120 mm) front fork and Fox Float Rhythm SV (165x45 mm) rear shock deliver Riese & Müller’s renowned Control Technology, ensuring complete stability and traction even on rough terrain.

The result is a suspension system that filters out road imperfections while maintaining constant ground contact — offering a riding experience that feels both plush and precise.

Ergonomics

  • Seatpost: X-Fusion Manic Dropper (100 mm or 125 mm)
  • Saddle: Ergon SF10 Gel / Selle Royal Essenza Moderate
  • Handlebar: Satori R&M Custom 25.4 mm aluminum (Komfort or Standard)
  • Stem: Satori R&M adjustable, cable-integrated design
  • Grips: Ergon ergonomic for natural wrist alignment

Every element is optimized for comfort and endurance, making long-distance riding effortless.

Safety & Illumination

Braking System

Equipped with Tektro TRP HD-EU835 hydraulic disc brakes, the Homage5 Rohloff delivers powerful, consistent braking. Optional Magura MT-C ABS ensures safe deceleration, especially on steep descents or slippery surfaces — preventing wheel lock-up and maintaining directional stability.

Lighting System

  • Front: Supernova M99 Mini Pro-25 — one of the brightest, road-legal lights available, offering automotive-level illumination
  • Rear: Supernova TL3 Pro with integrated brake light, increasing visibility and awareness

Both lights are powered by the Bosch system for consistent reliability and zero battery management.

Integrated Features & Utility

  • Mudguards: Curana Orbit 70 aluminum fenders — lightweight, durable, and elegant
  • Luggage Rack: Riese & Müller rear rack compatible with panniers and accessories
  • Kickstand: Ursus R97 IC Invisible Connect for discreet, stable support
  • Lock: ABUS Shield X+ with Adaptor Chain 2.0 (130 cm) / ABUS Granit Xplus
  • Bell: Knog Oi V2
  • Pump: Beto air suspension pump (included)
  • Cargo Straps: Bibia rubber straps

Riese & Müller leaves no detail unconsidered — the Homage5 Rohloff is fully equipped for any journey, from cross-country tours to city commutes.

Technology & Connectivity

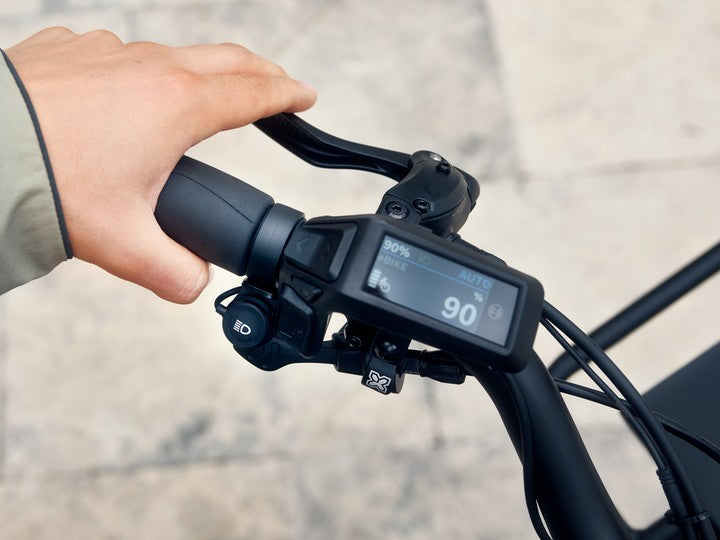

Bosch Kiox 500 Display

The Kiox 500 display offers a vibrant, easy-to-read interface with advanced features such as heart rate monitoring, navigation, and performance tracking. It’s Bluetooth-enabled and syncs with the Bosch eBike Flow App for complete integration.

RX Chip Integration

The RX Hardware (für RX Services) enables digital connectivity, GPS-based security, and real-time location tracking through Riese & Müller’s RX Connect ecosystem — protecting your investment wherever you ride.

Technical Specifications

Component Specification
Motor Bosch Performance Line CX, 100 Nm, Smart System
Battery Bosch PowerTube 800 Wh + optional PowerMore 250 Wh
Display Bosch Kiox 500 with Purion 200
Drivetrain Rohloff E14 electronic 14-speed
Drive System Gates CDX Carbon Belt (55T/19T)
Fork Fox AWL 34 Air, 120 mm
Rear Shock Fox Float Rhythm SV 165x45
Brakes Tektro TRP HD-EU835 / optional Magura MT-C ABS
Tires Schwalbe Super Moto-X 62-584 Reflex / Johnny Watts 365 60-584
Rims Rodi Tryp35 Evo 27.5"
Saddle Ergon SF10 Gel / Selle Royal Essenza Moderate
Seatpost X-Fusion Manic Dropper (100 mm / 125 mm)
Handlebar Satori R&M Custom 25.4 mm aluminum
Stem Satori R&M adjustable, cable-integrated
Lights Supernova M99 Mini Pro-25 / TL3 Pro
Kickstand Ursus R97 IC Invisible Connect
Lock ABUS Shield X+ with Adaptor Chain 2.0 (130 cm)
Bell Knog Oi V2
Mudguards Curana Orbit 70
Frame Sizes 47 cm / 51 cm / 56 cm
Colours Night / Warm Silver
Weight Approx. 33.5 kg

Why Choose the Homage5 Rohloff

The Riese & Müller Homage5 Rohloff is the ultimate eBike for riders who refuse to compromise. Every element — from the electronic shifting Rohloff hub to the full-suspension comfort and Bosch’s intelligent power — is designed for performance, precision, and enduring quality.

  • Effortless Rohloff E14 electronic shifting
  • Silent, maintenance-free Gates Carbon Belt Drive
  • Bosch’s most advanced Smart System motor and battery
  • Full-suspension Fox Air setup for supreme comfort
  • Unparalleled durability for long-distance touring

It’s not just an eBike — it’s an experience of mastery in motion, built to perform flawlessly for decades.

Available at Reckless Shipyards

Discover the Riese & Müller Homage5 Rohloff at Reckless Shipyards — the home of premium electric touring bikes.
Experience the smoothness of electronic precision, the confidence of full suspension, and the pure power of Bosch engineering.

Ride Happy. Ride Reckless.

Book a Test Ride at Reckless Shipyards
View full details

Specifications

Battery

  • Battery: Bosch PowerTube 800 Wh Horizontal + optional PowerMore 250 Wh range extender

Frame and Fork

Frame: ASI-certified aluminium low step-through
Suspension: Fox AWL 34 Air 120 mm (front) + Fox Float Rhythm SV 165x45 (rear)

Wheels And Brakes

  • Brakes: Tektro TRP HD-EU835 hydraulic disc brakes / optional Magura MT-C ABS
  • Tires: Schwalbe Super Moto-X 62-584 Reflex / Schwalbe Johnny Watts 365 60-584

Motor

  • Motor: Bosch Performance Line CX (BDU384Y), 85 Nm torque

Full Spec

  • Motor: Bosch Performance Line CX (BDU384Y), 85 Nm torque
  • Battery: Bosch PowerTube 800 Wh Horizontal + optional PowerMore 250 Wh range extender
  • Display: Bosch Kiox 500 (optional Kiox 300 or Purion 200)
  • Drivetrain: Rohloff E14 electronic 14-speed hub
  • Drive System: Gates CDX Carbon Belt Drive (55T front / 19T rear)
  • Brakes: Tektro TRP HD-EU835 hydraulic disc brakes / optional Magura MT-C ABS
  • Suspension: Fox AWL 34 Air 120 mm (front) + Fox Float Rhythm SV 165x45 (rear)
  • Lighting: Supernova M99 Mini Pro-25 front / Supernova TL3 Pro rear with integrated brake light
  • Tires: Schwalbe Super Moto-X 62-584 Reflex / Schwalbe Johnny Watts 365 60-584
  • Frame Sizes: 47 cm / 51 cm / 56 cm
  • Colours: Night / Warm Silver
  • Weight: Approx. 33.5 kg

Manufacturer Warranty

Warranty and guarantee

It is possible that a fault may occur with your Riese & Müller bike even though we prioritise quality and durability when selecting our components. In this case, we are often asked whether the fault is covered by the warranty or guarantee. These two terms are often used as synonyms, but have different meanings.

When does the warranty apply?

The warranty, also known as liability for defects, always applies if a defect existed or was expected to exist before the bike was handed over to you (e.g. material defect, assembly fault). The precise legal regulations governing a warranty are set out in the German Civil Code (BGB). The warranty starts at the moment you pick up your bike.

  • It lasts two years for new bikes individually built for you.
  • It also lasts two years for immediately available new bikes and ‘as new’ bikes from the online shop or our factory sales outlet (ridden less than 10 km).
  • The warranty is one year for used or demonstration bikes from our online shop or our factory sales outlet (ridden more than 10 km).

The buyer (you) must direct any claims under warranty to the seller of the bike. The seller is usually your Riese & Müller dealer. A warranty claim will also be handled by the dealer partner that you selected as the Service Hub when you purchased the bike, even with bikes bought in the online shop or from our factory sales outlet.

Your dealer will examine the complaint on site, assess it and then, if necessary, approach us to make a claim against us.

Warranty claims cannot be handled directly between you, the customer, and Riese & Müller, the manufacturer of the bike.

Your dealer will not usually contact Riese & Müller about defects relating to other manufacturers’ components, such as Bosch, Rohloff, Enviolo or Suntour, but will contact the component manufacturer directly. This approach is always applied in the interests of our customers, as direct communication between the companies concerned usually significantly shortens the processing time.

Of course, as the bike manufacturer, we are always available to support our dealers and component manufacturers as required.

Wear that is not due to a defect is not covered by the warranty.

Please check the exact warranty conditions applicable in your country.

When does the guarantee apply?

Regardless of the legally prescribed liability for defects, Riese & Müller grants a five-year guarantee for breakage of the frame or rear swing arm. Furthermore, we grant you a voluntary warranty on the battery of two years: we guarantee that the battery will have a capacity of 60 percent after two years or 500 full charge cycles (whichever occurs first). This guarantee applies if the following conditions are met:

  • You are the first owner of the bike.
  • You have registered your bike online within four weeks.
  • The bike logbook in the appendix of the general owner’s manual has been completed in full and all the inspections listed there have been carried out and entered.

All guarantee services and conditions are set out here in detail.
