Riese & Müller: Load5 75

Riese & Müller: Load5 75

$17,899.00 CAD
$17,899.00 CAD
Sale Sold out
Shipping calculated at checkout.
Color: Peanut
Gearing type

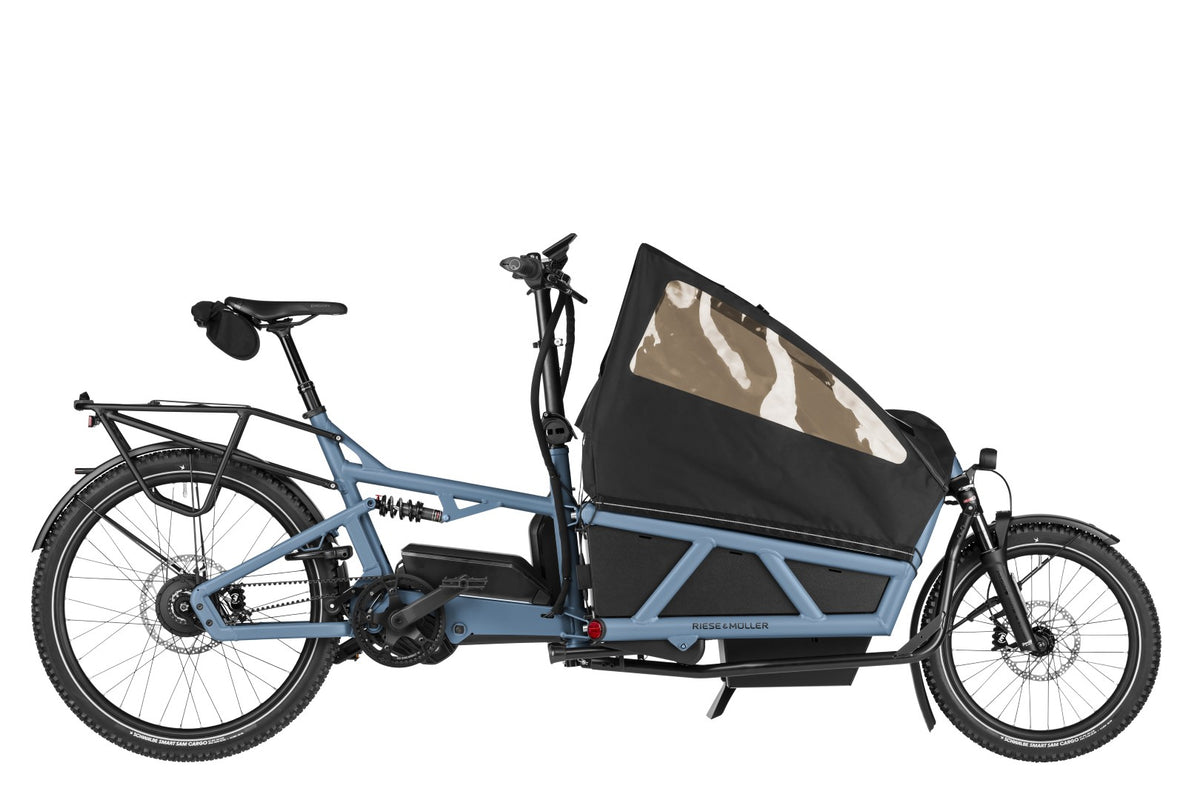

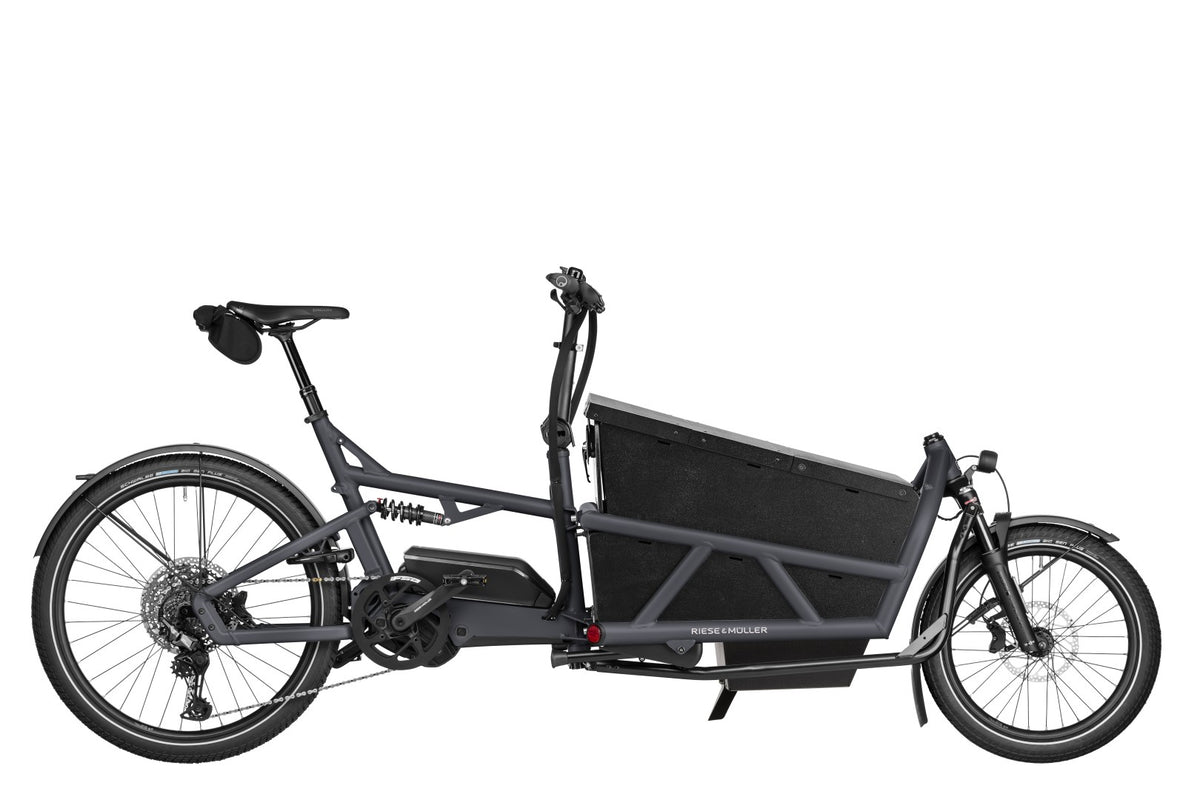

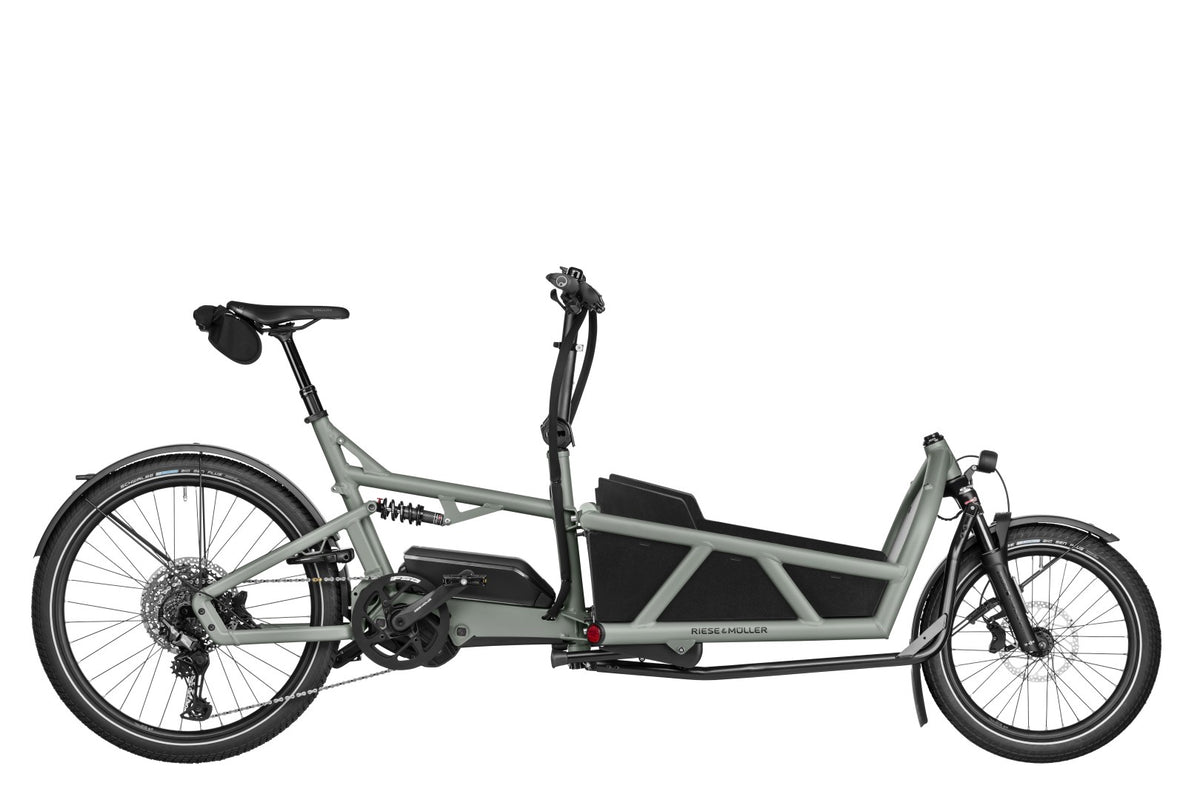

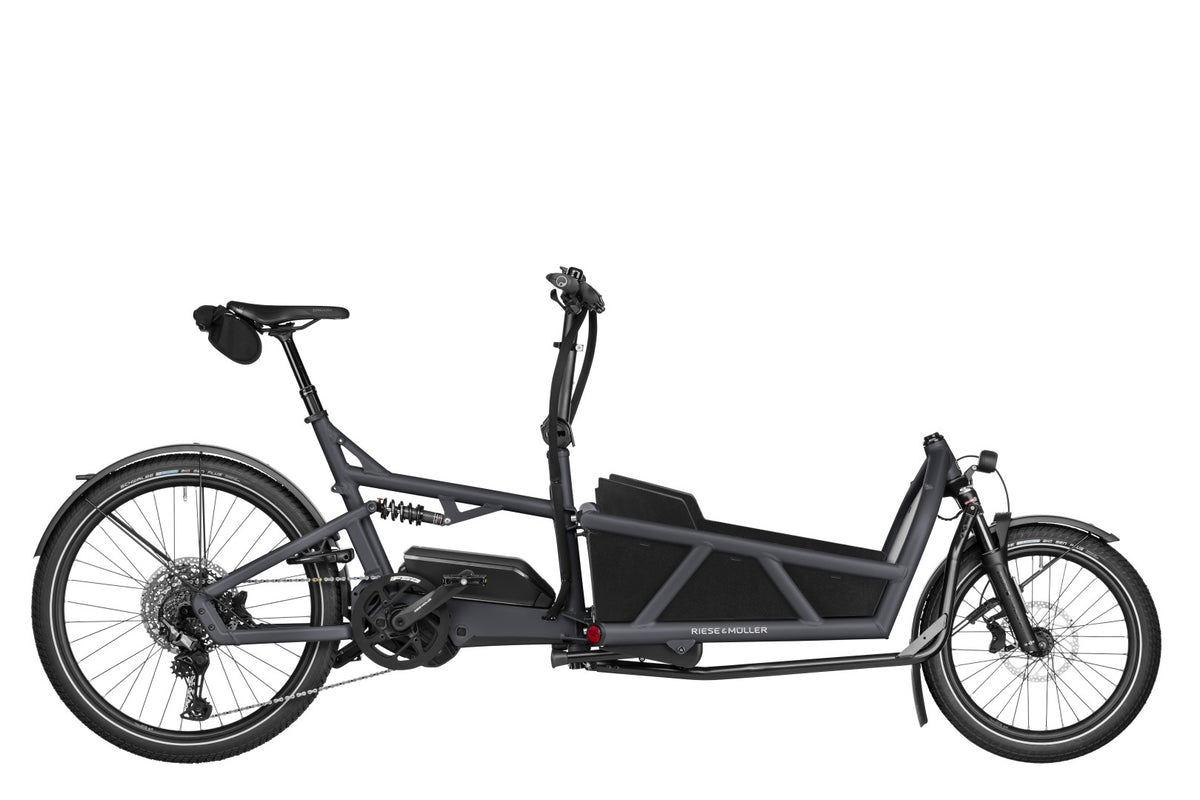

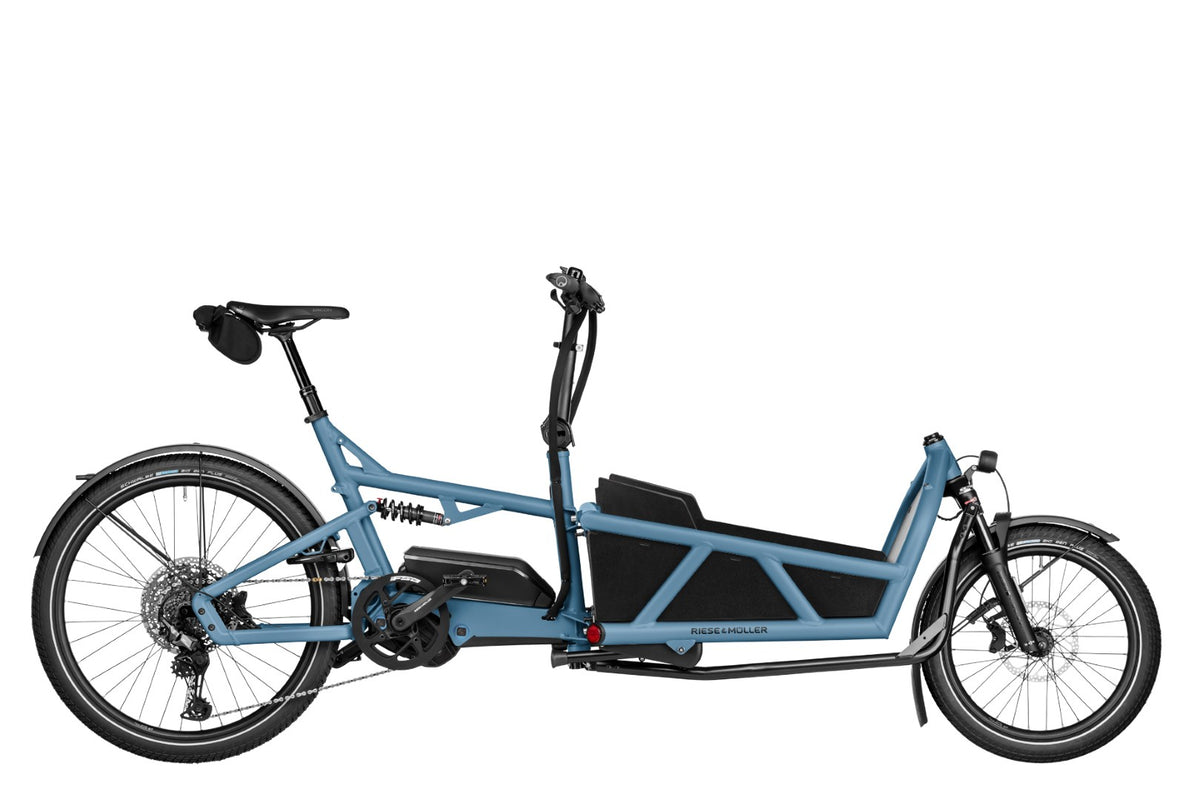

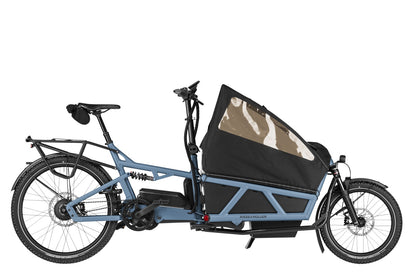

 Riese & Müller Load5 75

The Riese & Müller Load5 75 combines agile riding dynamics with versatile loading options, unlike any other cargo bike. The Load5 is here to give you reliable transport for all your cargo and passangers, with almost unmatched agility. With a low centre of gravity, full suspension, and powerful drive, this model provides total control even when riding at speed on uneven terrain.

Integrated lighting ensures that you're visible throughout the night or rainy winters, and the co-sprung 60 cm long luggage carrier carries cargo or passengers in comfort.

The optional Bosch ABS with Magura diskbrakes or IBS (integral braking system) give even more confidence when braking suddenly or on steep descents.

Key Highlights

  • Motor: Bosch Cargo Line, 100 Nm torque
  • Battery: Bosch PowerTube 725 Wh, which can be upgraded to 1600 Wh by opting for the DualBattery system.
  • Load Capacity: 200 kg
  • Display: Bosch Purion 200
  • Drivetrain: Shimano Deore 10-Sp
  • Adjustable stem and flexible seat position, to fit a large range of riders and riding preferences.

Power & Performance

The Bosch Cargo Line Motor powers the Load5 with up to 100 Nm of torque and adaptive support that feels natural and responsive. It delivers the right amount of assistance exactly when you need it - whether starting uphill or fully loaded.

The system integrates seamlessly with the Bosch eBike Flow App, offering:

  • Personalized motor tuning
  • Ride analytics and activity tracking
  • Navigation and range prediction
  • Security and system updates over the air

Safety & Illumination

Brakes

Equipped with Tektro TRP C 2.3 hydraulic disc brakes, the Load5 provides reliable, controlled stopping in all conditions.

For riders seeking maximum safety, the braking system can be upgraded to either:

  • Magura MT5 disk brake ABS, which adds an anti-lock braking system that intelligently prevents wheel lock-up, especially on wet or loose surfaces.
  • Magura MT C IBS, Integral Braking System, which applies the optimal braking force between the front and rear brakes, even in the case where only one brake lever is pressed. This provides better stabilization and safer braking, as well as more even wear between the two brakes to reduce maintenance.

Lighting System

  • Front: Supernova M99 Mini 2 - 100 lux for night visibility
  • Rear: Supernova TL3 Pro - integrated brake light for active visibility

Both lights are powered directly by the Bosch system, ensuring continuous illumination.

Book a Test Ride at Reckless Shipyards
View full details

Specifications

Battery

  • Battery: Bosch PowerTube 800 Wh Horizontal + optional PowerMore 250 Wh range extender

Frame and Fork

Frame: ASI-certified aluminium low step-through
Suspension: Fox AWL 34 Air 120 mm (front) + Fox Float Rhythm SV 165x45 (rear)

Wheels And Brakes

  • Brakes: Tektro TRP HD-EU835 disc brakes with optional Magura MT-C ABS
  • Tires: Schwalbe Super Moto-X 62-584 Reflex / Schwalbe Johnny Watts 365 60-584

Motor

  • Motor: Bosch Performance Line CX (BDU384Y), 85 Nm torque

Full Spec

  • Motor: Bosch Performance Line CX (BDU384Y), 85 Nm torque
  • Battery: Bosch PowerTube 800 Wh Horizontal + optional PowerMore 250 Wh range extender
  • Display: Bosch Kiox 500 (optional Kiox 300 or Purion 200)
  • Drivetrain: Enviolo Heavy Duty continuously variable hub
  • Drive System: Gates CDX Carbon Belt Drive (60T front / 26T rear)
  • Brakes: Tektro TRP HD-EU835 hydraulic disc brakes / optional Magura MT-C ABS
  • Suspension: Fox AWL 34 Air 120 mm (front) + Fox Float Rhythm SV 165x45 (rear)
  • Lighting: Supernova M99 Mini Pro-25 front / Supernova TL3 Pro rear with integrated brake light
  • Tires: Schwalbe Super Moto-X 62-584 Reflex / Schwalbe Johnny Watts 365 60-584
  • Frame Sizes: 47 cm / 51 cm / 56 cm
  • Colours: Night / Warm Silver
  • Weight: Approx. 33 kg

Manufacturer Warranty

Warranty and guarantee

It is possible that a fault may occur with your Riese & Müller bike even though we prioritise quality and durability when selecting our components. In this case, we are often asked whether the fault is covered by the warranty or guarantee. These two terms are often used as synonyms, but have different meanings.

When does the warranty apply?

The warranty, also known as liability for defects, always applies if a defect existed or was expected to exist before the bike was handed over to you (e.g. material defect, assembly fault). The precise legal regulations governing a warranty are set out in the German Civil Code (BGB). The warranty starts at the moment you pick up your bike.

  • It lasts two years for new bikes individually built for you.
  • It also lasts two years for immediately available new bikes and ‘as new’ bikes from the online shop or our factory sales outlet (ridden less than 10 km).
  • The warranty is one year for used or demonstration bikes from our online shop or our factory sales outlet (ridden more than 10 km).

The buyer (you) must direct any claims under warranty to the seller of the bike. The seller is usually your Riese & Müller dealer. A warranty claim will also be handled by the dealer partner that you selected as the Service Hub when you purchased the bike, even with bikes bought in the online shop or from our factory sales outlet.

Your dealer will examine the complaint on site, assess it and then, if necessary, approach us to make a claim against us.

Warranty claims cannot be handled directly between you, the customer, and Riese & Müller, the manufacturer of the bike.

Your dealer will not usually contact Riese & Müller about defects relating to other manufacturers’ components, such as Bosch, Rohloff, Enviolo or Suntour, but will contact the component manufacturer directly. This approach is always applied in the interests of our customers, as direct communication between the companies concerned usually significantly shortens the processing time.

Of course, as the bike manufacturer, we are always available to support our dealers and component manufacturers as required.

Wear that is not due to a defect is not covered by the warranty.

Please check the exact warranty conditions applicable in your country.

When does the guarantee apply?

Regardless of the legally prescribed liability for defects, Riese & Müller grants a five-year guarantee for breakage of the frame or rear swing arm. Furthermore, we grant you a voluntary warranty on the battery of two years: we guarantee that the battery will have a capacity of 60 percent after two years or 500 full charge cycles (whichever occurs first). This guarantee applies if the following conditions are met:

  • You are the first owner of the bike.
  • You have registered your bike online within four weeks.
  • The bike logbook in the appendix of the general owner’s manual has been completed in full and all the inspections listed there have been carried out and entered.

All guarantee services and conditions are set out here in detail.

Video

Downloads and Links

Frequently Asked Questions

Who is the Riese & Müller Homage5 Vario best suited for?

It is designed for comfortable commuting, long-distance touring and mixed-surface riding where accessibility, full suspension and smooth shifting are priorities.

What is the advantage of the low step-through frame?

The low step-through design makes mounting and dismounting easier while providing a comfortable and upright touring position.

What motor does the Homage5 Vario use?

It uses a Bosch Performance Line CX Smart System mid-drive motor, identified as the BDU384Y drive unit.

What battery options are available?

The standard configuration has a Bosch PowerTube 800Wh battery. An optional Bosch PowerMore 250Wh range extender increases the total battery capacity to 1,050Wh.

How does the Enviolo Vario drivetrain work?

The Enviolo Heavy Duty hub provides stepless gear adjustment. Simply turn the grip to adjust resistance and cadence while riding or at a stop.

What is the advantage of the Gates CDX belt drive?

The Gates CDX belt runs quietly and cleanly and does not require lubrication.

What suspension does the Homage5 Vario have?

It uses a Fox AWL 34 air fork with 120mm of travel and a Fox Float Rhythm SV 165 × 45mm rear shock for full-suspension comfort and control.

What braking and lighting equipment is included?

It has Tektro TRP HD-EU835 hydraulic disc brakes, a Supernova M99 Mini Pro-25 front light and a Supernova TL3 Pro rear light with an integrated brake-light function. ABS is available as an optional configuration.

What utility and connected features does it have?

It includes mudguards, a rear luggage rack, kickstand, lock and bell. RX hardware supports compatible connected services, while the Bosch system connects with the eBike Flow App.

Which frame sizes are available?

The current product options include 51cm with a 40cm reach, 51cm with a 44cm reach and 56cm. A professional fitting or test ride is recommended.

Can I test ride the Homage5 Vario?

Contact Reckless Shipyards or book a test ride to confirm availability and evaluate the frame size, suspension, shifting, motor assistance and handling.
