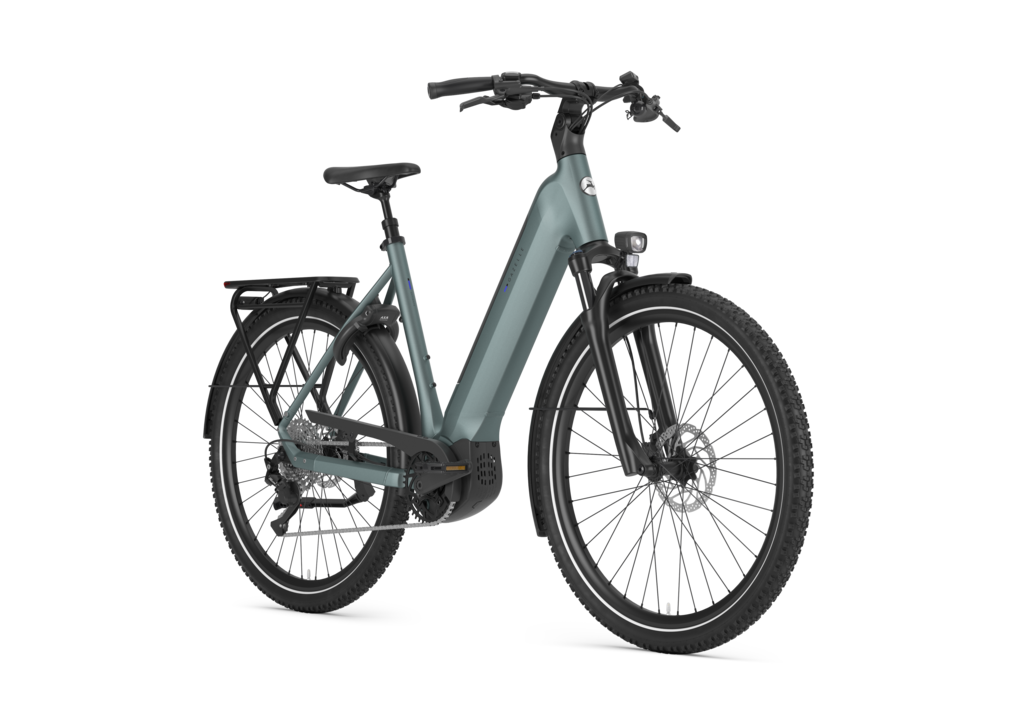

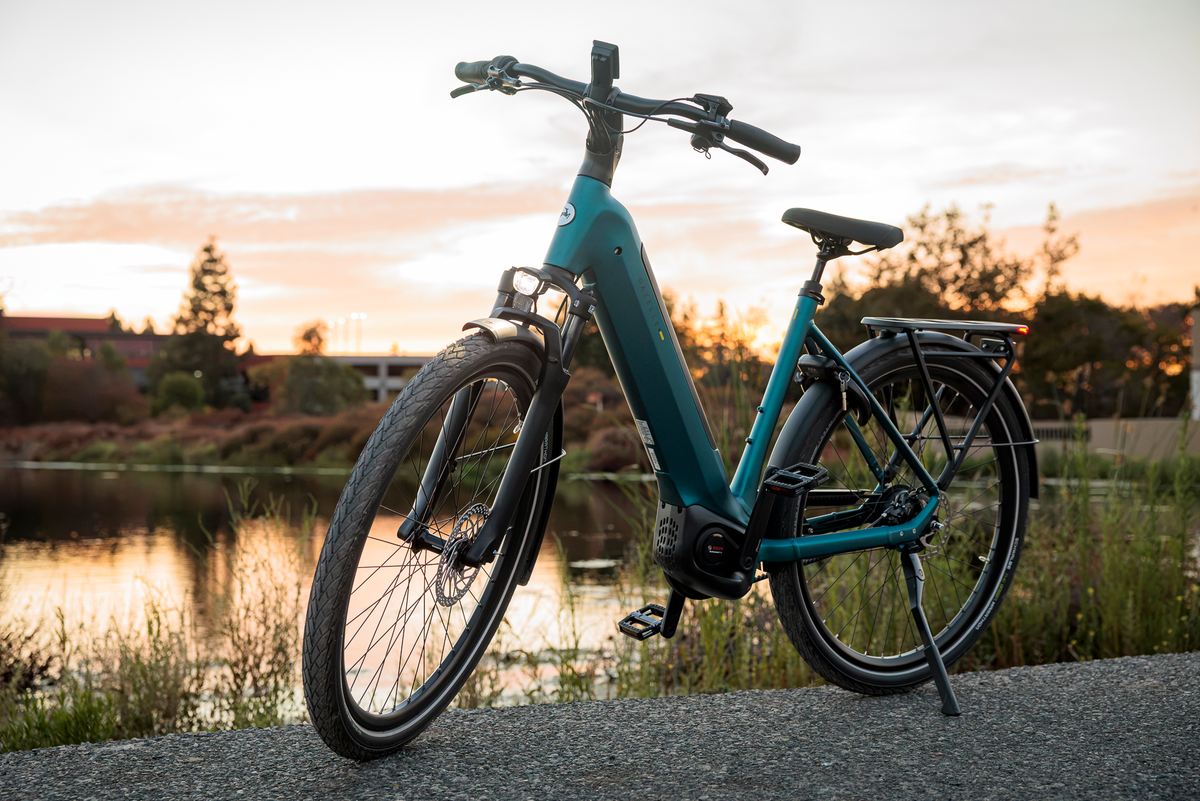

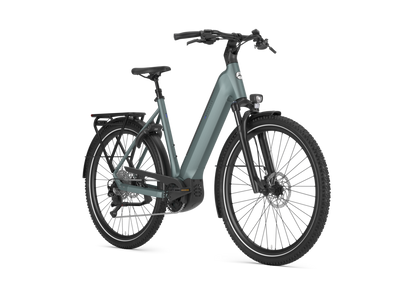

All New - Royal Duch Gazelle: Ultimate T10 HMB

All New - Royal Duch Gazelle: Ultimate T10 HMB

Regular price $4,999.00 CAD
Regular price Sale price $4,999.00 CAD
Sale Sold out
Shipping calculated at checkout.

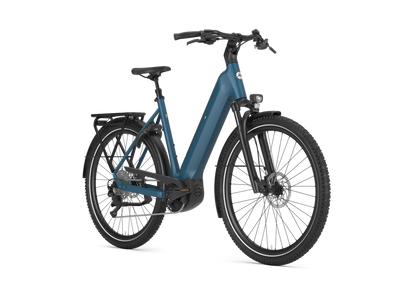

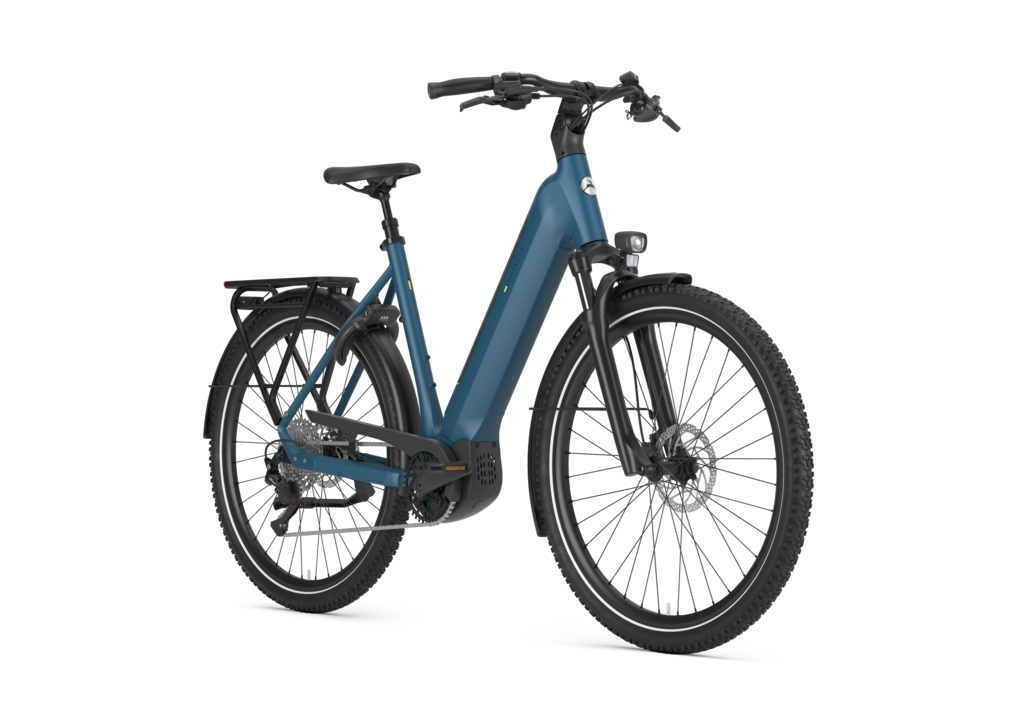

Color: Legion Blue

Gazelle Ultimate T10 HMB (2027): Built for Long Recreational Rides

The 2027 upgrade to the Ultimate T10 is the next step up in HMB (hybrid mountain bike) eBikes. Building on two previous generations of this model, this eBike is built for riders who want to go further. Wide tires, suspension seatpost, and air-sprung forks give a smooth ride on any terrain, stable at speed and confident on climbs.

This is a premium model that perfectly blends sporty urban functionality with true Gazelle comfort; the Ultimate T10 has a Shimano Cues 10-Sp drivetrain and an active riding position. Built for navigating city streets and exploring scenic trails, this versatile e-bike is designed to meet the needs of discerning riders across Canada.


2027 Innovations

This year's model has been overhauled to give you an even better riding experience than with the 2026 Ultimate T10.

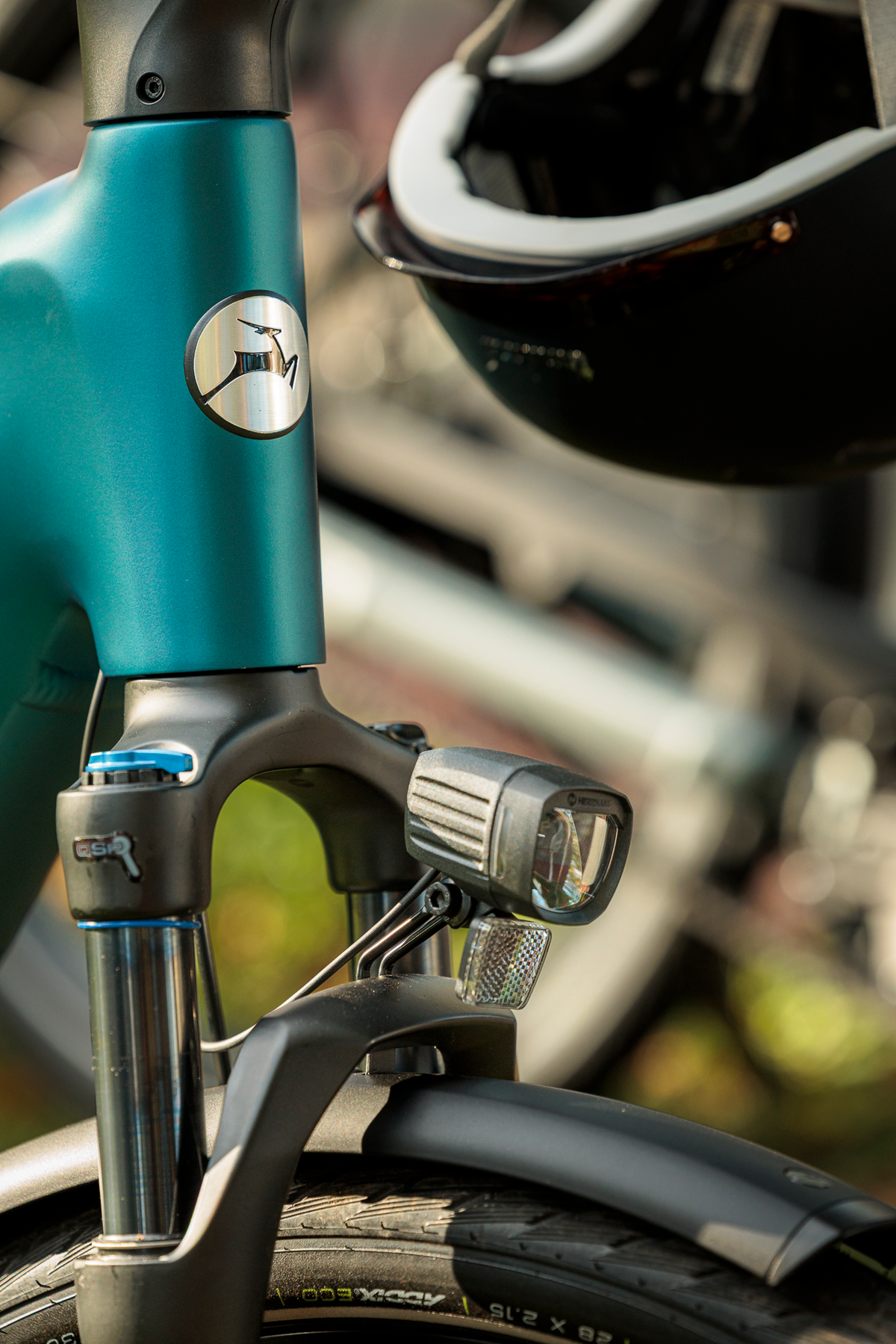

  • An air-shock fork is installed by default, with much more travel and noticably improved suspension than the old coil fork.

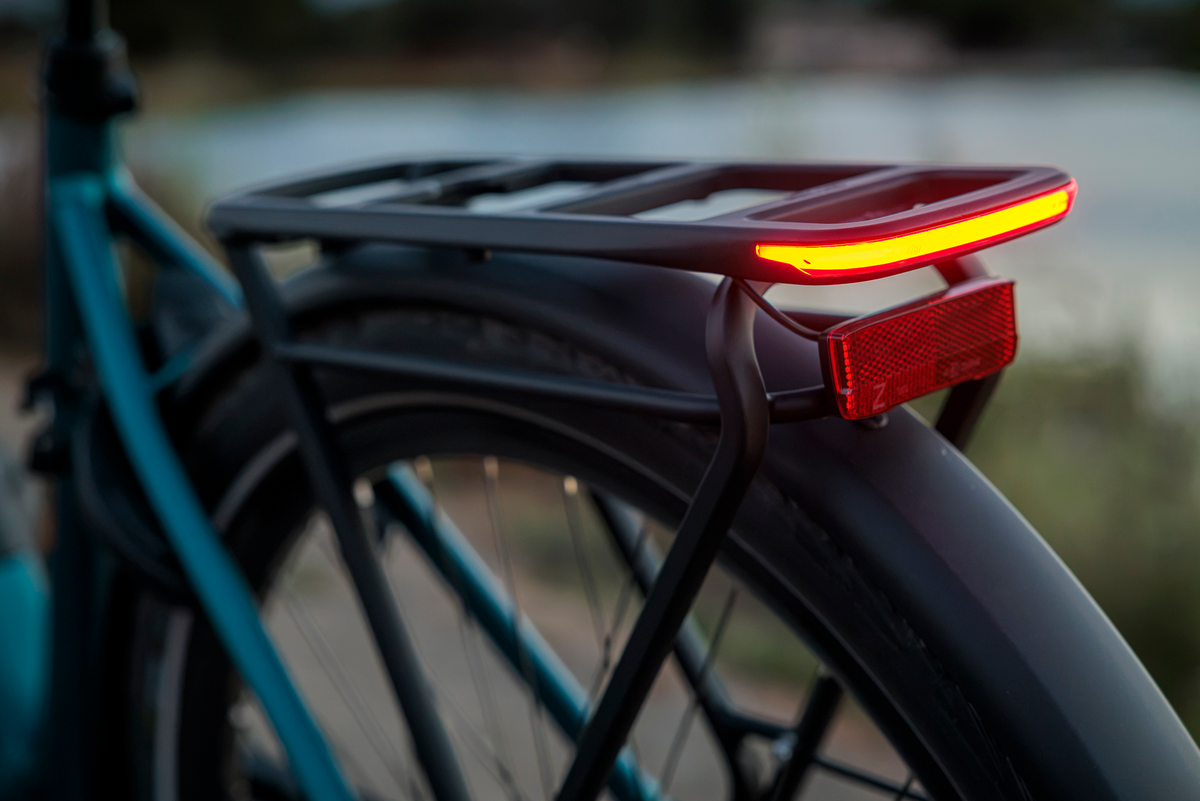

  • Integrated decceleration brake lights are installed, clearly indicating to cyclists and drivers behind you whenever the brake is used.

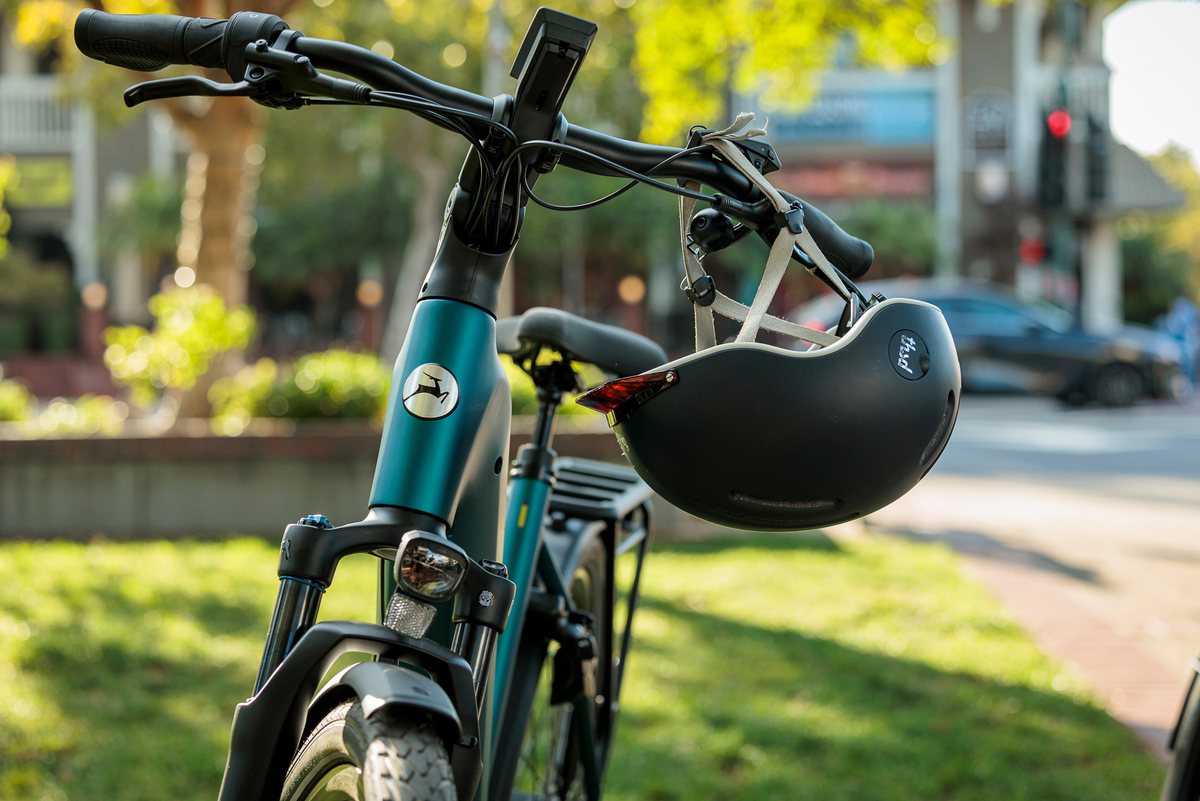

  • The central display is now mounted inside the stem, which is much easier to read while riding and even stronger than before.
  • Increased maximum loading capacity, which is now 330 lb.

    Key Highlights

    • Bosch Performance Line Motor with 60 Nm of torque for powerful, smooth assistance (20 mph)
    • 540 Wh integrated battery for extended rides and long-lasting performance. This can be upgraded to 800 Wh, or supplemented with the PowerMore 200 Wh range extender.
    • Shimano Cues 10-Sp Drivetrain, providing a wide range of gears for dynamic terrain and steep gradients.
    • Premium Shimano Deore disc brakes for smooth, responsive braking
    • Wide tires, front air suspension fork, and adjustable stem for enhanced comfort
    • Elegant aluminum frame with integrated battery and cables for a sleek, stylish appearance

    This new Gazelle Ultimate T10 HMB is the updated flagship model from Royal Dutch Gazelle, embodying the perfect synergy between design, comfort, and performance. Available now at Reckless Shipyards, this e-bike is ideal for riders across Canada who demand the best in quality and style. Whether you're rediscovering your city or exploring new paths, the Gazelle Ultimate C5 HMB delivers an unmatched cycling experience.


    Power & Performance

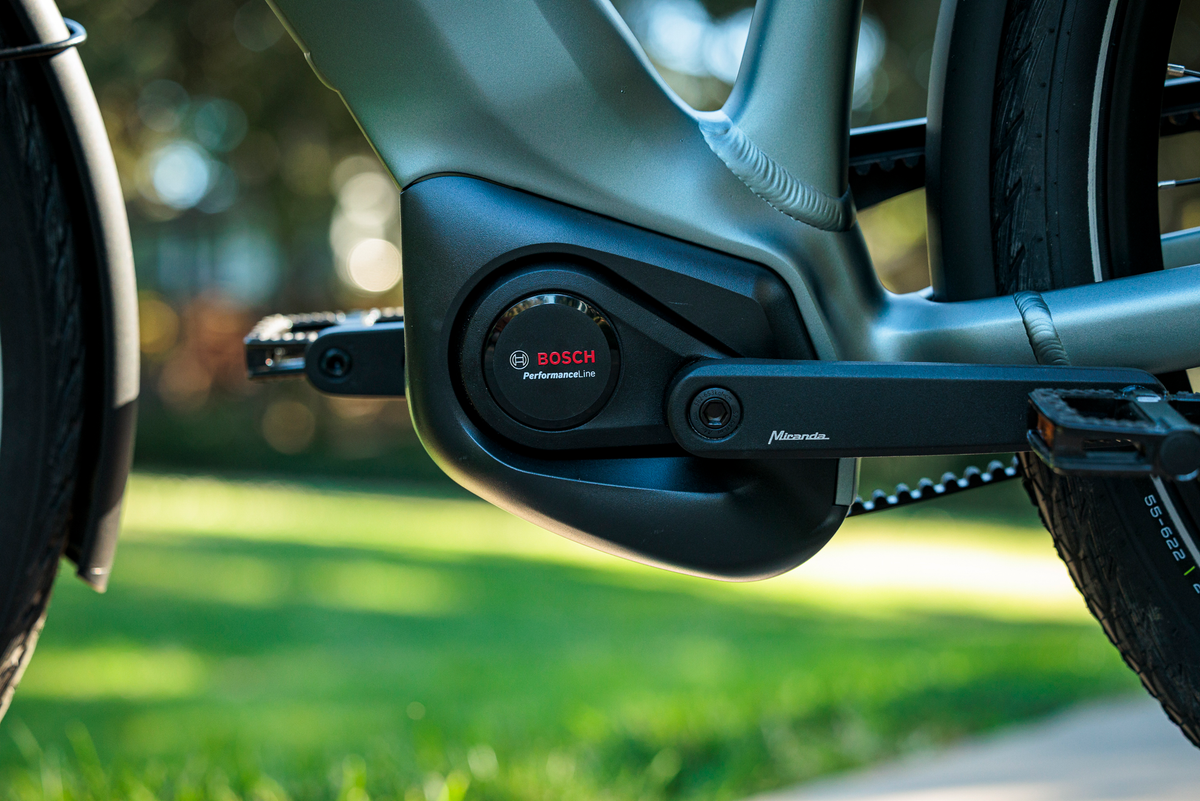

    The Bosch Performance Line Motor powers the Ultimate T10 with an upgraded 60 Nm of torque and adaptive support that feels natural and responsive. It delivers the right amount of power for all your journeys.

    The system integrates seamlessly with the Bosch eBike Flow App, offering:

    • Personalized motor tuning
    • Ride analytics and activity tracking
    • Navigation and range prediction
    • Security and system updates over the air
    Book a Test Ride at Reckless Shipyards
    View full details

    Specifications

    Battery

    Charger: Bosch Compact Charger, 2A
    eBike Battery Watt Hours: 540 Wh

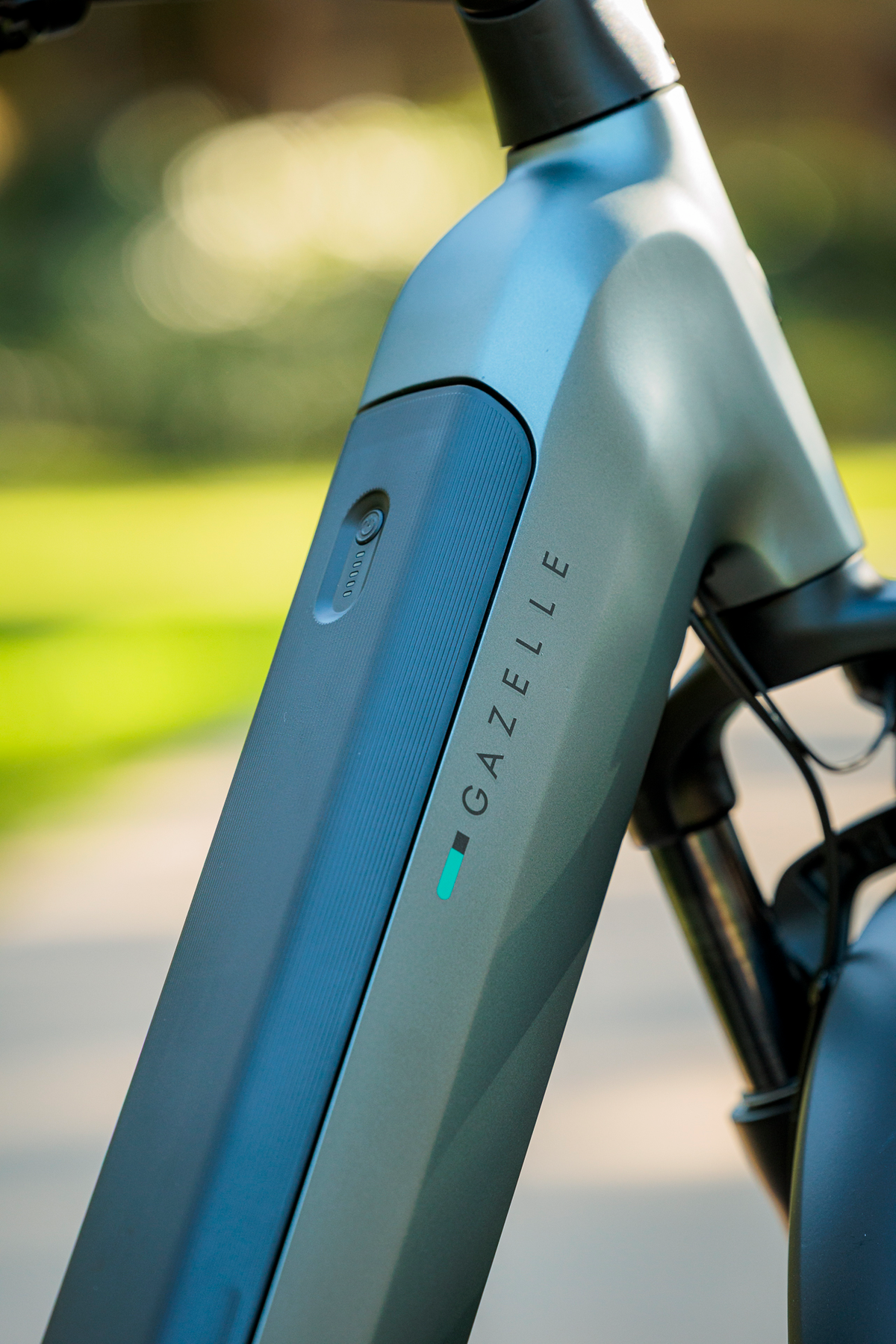

    Battery Position: integrated in the frame

    Frame and Fork

    Frame: Stable aluminum frame with 70.5° headset angle and 71,5° saddle tube angle for sporty cycling characteristics. Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail.
    Sitting Position: Active
    Frame cables integrated: Yes
    Fork: SR Suntour NVX32 Air, Telescope, air
    Fork travel: 80 mm
    Fork lockout: Yes
    Rear carrier: aluminum MIK HD system carrier

    Wheels And Brakes

    Tire Front: Schwalbe TSmart Sam, 54-622
    Tire rear
    : Schwalbe Smart Sam, 54-622
    Front rim: Ryde ZAC 25, double-walled aluminum for extra strong and efficient cycling performance
    Rear rim: Ryde ZAC 25, double-walled aluminum for extra strong and efficient cycling performance
    Front hub: Shimano HB-TC500
    Rear hub: Shimano QC300

    Front brake: hydraulic disc brake, Shimano BR-MT200, 180 mm, 2 piston
    Rear brake: hydraulic disc brake, Shimano BR-MT200, 160 mm, 2 piston
    Shifter: Shimano Deore M6000
    Front chain wheel: 42
    Gear: Shimano Deore
    Drivetrain: chain
    Chain/belt: KMC E500EPT, rust protective coating
    Cassette Range: 11-42

    Motor

    Motor: Bosch Smart System Performance Line
    Ebike Engine Position:
    Mid
    Ebike Max Speed mph: 20
    Engine Max Torque (Nm): 60

    Full Spec

    Charger: Bosch Compact Charger, 2A
    eBike Battery Watt Hours: 540 Wh
    Battery Position: integrated in the frame


    Frame
    : Stable aluminum frame with 70.5° headset angle and 71,5° saddle tube angle for sporty cycling characteristics. Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail.
    Sitting Position: Active
    Frame cables integrated: No
    Fork: SR Suntour NVX32 Air, Telescope, air
    Fork travel: 80 mm
    Fork lockout: Yes
    Rear carrier: aluminum MIK HD system carrier

    Tire Front: Schwalbe TSmart Sam, 54-622
    Tire rear
    : Schwalbe Smart Sam, 54-622
    Front rim: Ryde ZAC 25, double-walled aluminum for extra strong and efficient cycling performance
    Rear rim: Ryde ZAC 25, double-walled aluminum for extra strong and efficient cycling performance
    Front hub: Shimano HB-TC500
    Rear hub: Shimano QC300

    Front brake: hydraulic disc brake, Shimano BR-MT200, 180 mm, 2 piston
    Rear brake: hydraulic disc brake, Shimano BR-MT200, 160 mm, 2 piston
    Shifter: Shimano Deore M6000
    Front chain wheel: 42
    Gear: Shimano Deore
    Drivetrain: chain
    Chain/belt: KMC E500EPT, rust protective coating
    Cassette Range: 11-42

    Handlebar: aluminum, slightly curved
    Stem: Adjustable stem with Intelli-mount interface for mounting your smartphone
    Grips: Ergon GP1-L ergonomic, plastic handlebar grips with ergonomic form for a better distribution of pressure
    on the hands
    Brake levers: Shimano BL-MT200
    Seatpost diameter: 31,6 mm
    Suspension: Yes
    Saddle: Selle Royal Essenza Plus Gel

    Motor: Bosch Smart System Performance Line
    Ebike Engine Position:
    Mid
    Ebike Max Speed mph: 20
    Engine Max Torque (Nm): 60

    Front light: Herrmans MR9
    Front light lux: 60
    Front light energy source: battery
    Rear light: Spanninga Commuter Glow
    Rear light energy source: battery

    Lock: Axa Imenso L
    Kickstand: Ursus Mooi, drop-down rear stand
    Maximum weight (lbs): 330 lbs

    Manufacturer Warranty

    Warranty on your Gazelle bike

    Gazelle provides up to a ten-year warranty on material and manufacturing defects on the frame and non-suspension front forks covering normal treatment, use, and maintenance. There is a five-year warranty on suspension front forks. A five-year warranty period applies for paintwork on the frame and the front forks. Parts on your bicycle are covered by a two-year warranty subject to normal use and maintenance.

    You can also see Royal Dutch Gazelle's FAQ about their Manufacturer Warranty
