Royal Dutch Gazelle Ultimate T10 – Built for Long Recreational Rides
The Royal Dutch Gazelle Ultimate T10 is designed for riders who want to go further — smooth on flats, confident on climbs, and stable at speed. With an award-winning frame, premium finish, and powerful Bosch Performance Line Smart System, it delivers sporty touring performance with true Gazelle comfort.

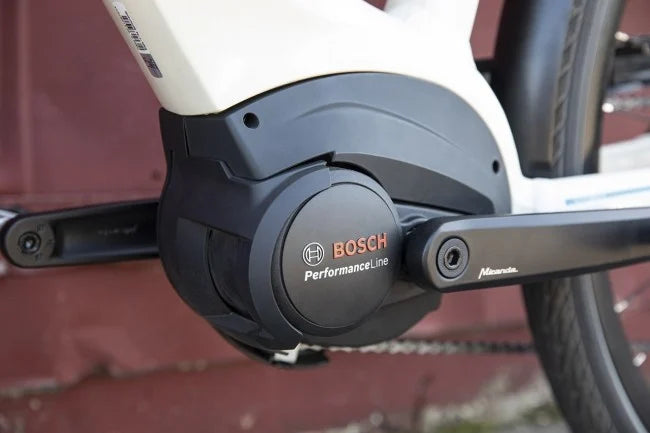

Effortless Power: Bosch Performance Line Smart System (75 Nm)
The Ultimate T10 features the Bosch Performance Line Smart System mid-drive motor, delivering up to 75 Nm of torque for smooth, natural assistance on every ride. Hills feel easier, headwinds disappear, and long-distance rides become pure joy.

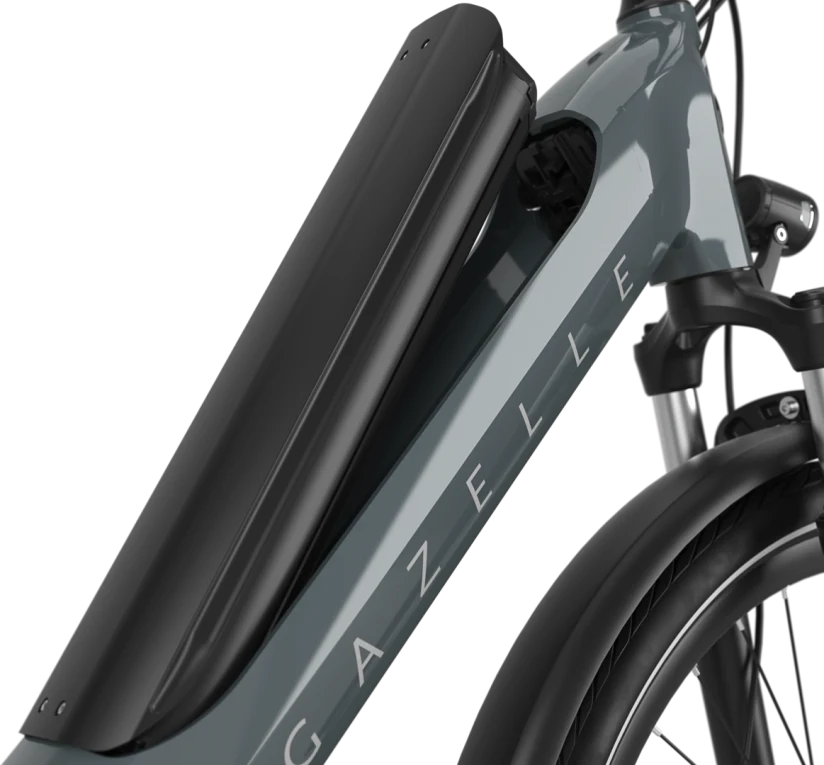

Integrated Range: Bosch 625 Wh Battery
The integrated 625 Wh Bosch Intube battery provides efficient real-world range for longer rides. It’s neatly built into the frame and contributes to the bike’s balanced, stable handling.
10-Speed Derailleur Drivetrain: Wide Gear Range + Efficiency
The 10-speed derailleur drivetrain gives you a wide range of gears for dynamic terrain and steep gradients. It’s efficient, responsive, and ideal for riders who want an active touring feel with easy climbing ability.
Comfort for Longer Days in the Saddle
The Ultimate T10 is made for long recreational trips, and the comfort details prove it:
- Telescopic suspension fork (75 mm travel) to reduce vibration and smooth rough roads
- Touring-ready geometry for stable steering and relaxed posture
- Premium Gazelle build quality and refined frame integration
Safe & Controlled Braking in All Conditions
With a high-performance touring e-bike like the Ultimate T10, safe braking matters. Hydraulic disc brakes provide strong, predictable stopping power in wet and dry weather — including on fast descents.
Key Specifications (Quick View)
- Motor: Bosch Performance Line Smart System (mid-drive), 75 Nm
- Battery: Bosch integrated Intube 625 Wh
- Gears: 10-speed derailleur drivetrain
- Fork: Telescopic suspension fork, 75 mm travel
- Brakes: Hydraulic disc brakes
- Frame: Award-winning aluminum frame with premium integration
- Frame shapes: High-step or low-step options
The Bottom Line
The Gazelle Ultimate T10 is a premium touring e-bike that blends sporty performance with true comfort — perfect for long weekend rides, scenic adventures, and daily rides that feel effortless and fun.
Share
Couldn't load pickup availability

Specifications
Battery
- Charger Bosch
- Ebike Battery Charger Description 4 Ah
- Battery Position Intergrated in the frame
Frame and Fork
- Frame description Stable aluminium frame with 70,5° headset angle and 71,5° saddle tube angle for sporty cycling characteristics. Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail.
- Frame material Aluminum
- Cockpit Cable Integration Yes
- Frame shape Low-Step
- Frame Size CM 53, 57
- Fork description Aluminium, springing in headset, lightweight
- Fork Material Aluminum
- Fork suspension Mono Integrated
Wheels And Brakes
- Front wheel 38
- Rear wheel
- Front rim Dutch 19 Dutch 19, double-walled aluminium for extra strong and efficient cycling performance
- Rear rim Dutch 19 Dutch 19, double-walled aluminium for extra strong and efficient cycling performance
- Front hub Shimano
- Rear hub Shimano Deore
- WheelSize Front 28"
- Wheels Tire Front Etrto 50-622
- Front tire Schwalbe Energizer Plus
- Rear tire Schwalbe Energizer Plus
- Wheels Tire Front Description Schwalbe Energizer Plus
Motor
- System Model Performance Line
- Motor Bosch Smart System Performance Line
- Ebike System Brand Bosch Smart System
- Ebike Engine Position Mid
- Ebike Max Speed mph 20
- Engine Max Torque (Nm) 75
Full Spec
Highlights
Color Frozen white gloss, thunder grey gloss
Fork suspension Telescope, spiral spring
System Model Performance Line
Motor Bosch Smart System Performance Line
General
Bike weight description Excl. battery
Weight (lbs) 53.6
Color Frozen white gloss, thunder grey gloss
Sitting Position Active
Frame & Fork
Frame
Frame description Stable aluminium frame with 70,5° headset angle and 71,5° saddle tube angle for sporty cycling characteristics. Battery, motor and cables harmoniously integrated into the frame. High-quality finish with attention to detail.
Frame material Aluminum
Cockpit Cable Integration Yes
Frame shape High-Step, Low-Step
Frame Size CM 46, 53, 57
Fork
Fork SR Suntour NVX30
Fork description Suntour NVX30
Fork Material Aluminum
Fork suspension Telescope, spiral spring
Fork lockout Yes
Wheels & Tires
Wheels
Front wheel 38
Rear wheel
Front rim Dutch 19 Dutch 19, double-walled aluminium for extra strong and efficient cycling performance
Rear rim Dutch 19 Dutch 19, double-walled aluminium for extra strong and efficient cycling performance
Front hub Shimano
Rear hub Shimano Deore
WheelSize Front 28"
Tires
Wheels Tire Front Etrto 50-622
Front tire Schwalbe Energizer Plus
Rear tire Schwalbe Energizer Plus
Wheels Tire Front Description Schwalbe Energizer Plus
Brake & transmission
Number of gears
Brand shifters Shimano
Front chainwheel 38
Cassette Range 11-42
Gear Type Derailleur
Number of gears 10
Drivetrain
Rear derailleur Shimano Deore
Drivetrain Chain
Crankset Model Delta
Crankset description Miranda Delta
Brakes
Front Brake Type Hydraulic disc brake
Brake sytem code S10
Front Brake Brand Shimano
Primary Rear Brake Model BR-MT420
Front brake Shimano BR-MT420, 180 mm
Rear brake Shimano BR-MT420, 160 mm
Rear Brake Lever BLMT420
Handlebar & Seat
Handlebar
Handlebar Ergon GP1-L ergonomic, plastic handlebar grips with ergonomic form for a better distribution of pressure on the hands
Stem adjustable Yes
Cockpit Handlebar Grip Brand Ergon
Saddle
Saddle Selle Royal Essenza Plus
Lighting

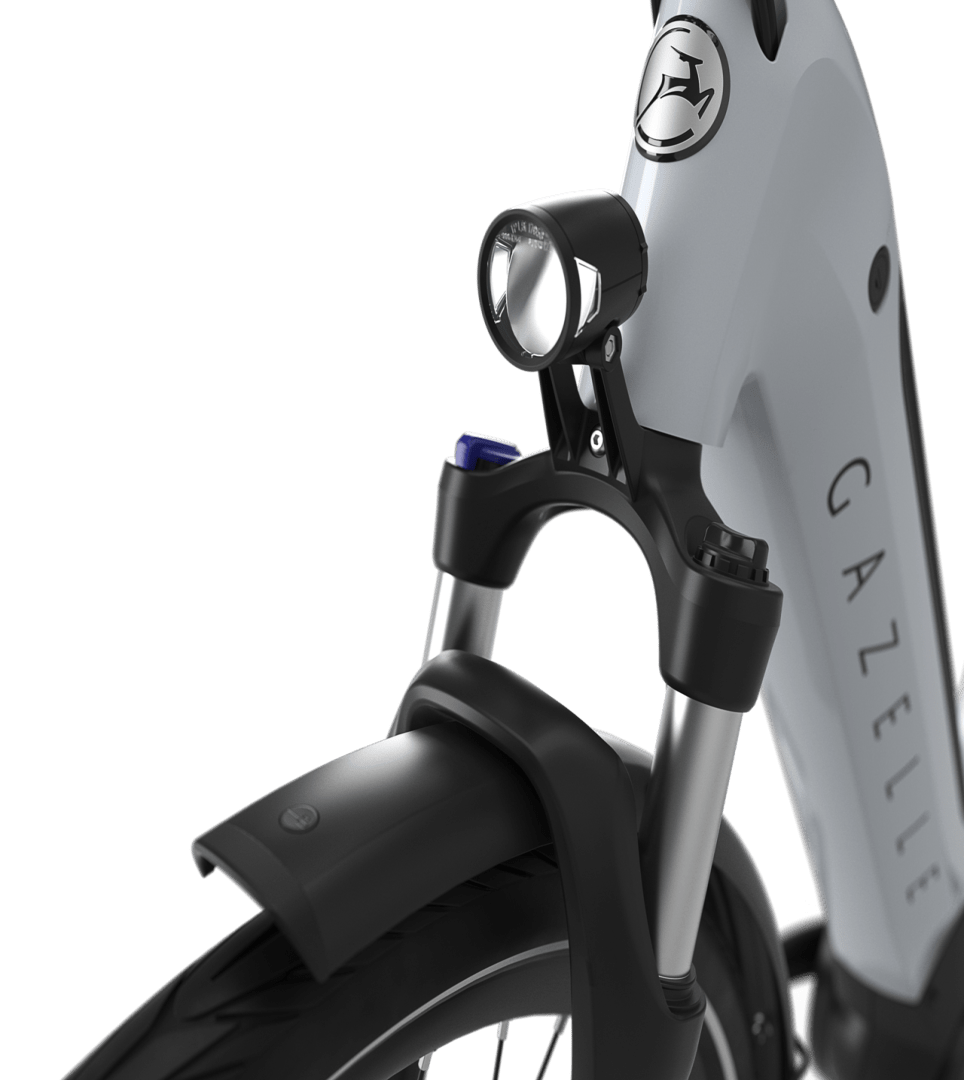

Front light
Front light Herrmans MR8
Front Light Energy Source Battery
Front Light Lux 60
Rear light
Rear Light Energy Source Battery
Rear light Spanninga Commuter Glow
E-bike technology
Engine
System Model Performance Line
Motor Bosch Smart System Performance Line
Ebike System Brand Bosch Smart System
Ebike Engine Position Mid
Ebike Max Speed mph 20
Engine Max Torque (Nm) 75
Battery
Charger Bosch
Ebike Battery Charger Description 4 Ah
Battery Position Intergrated in the frame

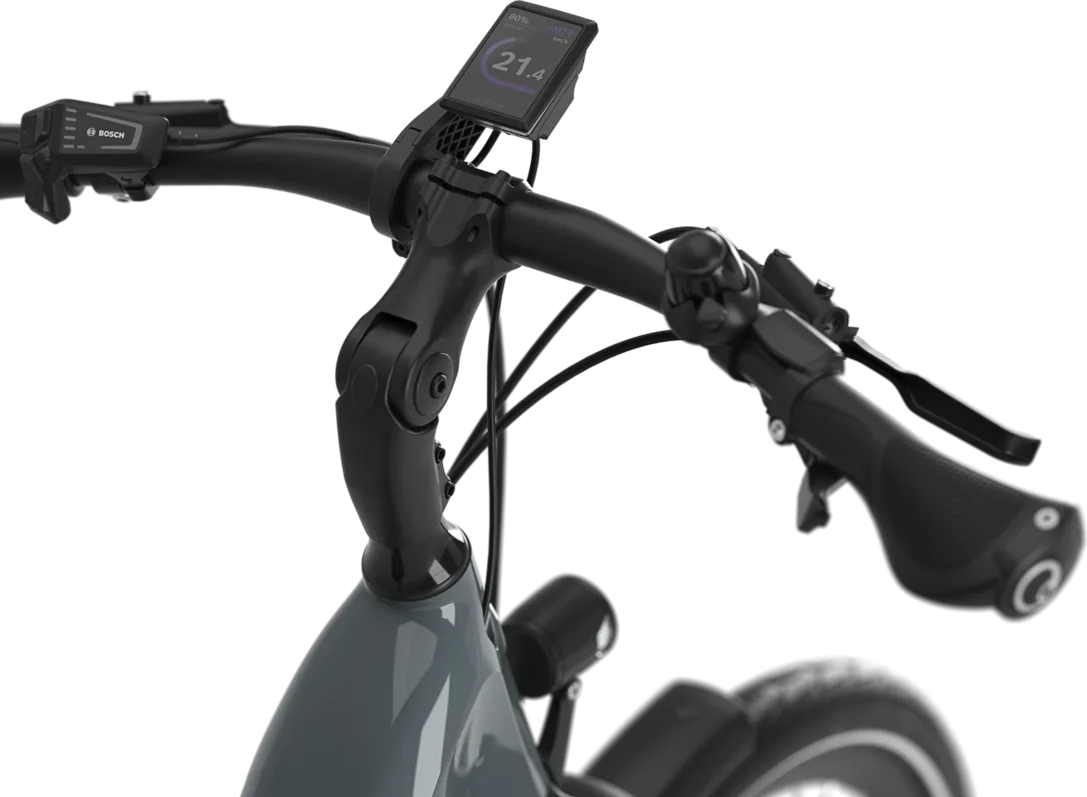

Display
Display Bosch Kiox 300
Display Removeable Yes
Ebike Walk Assist Yes
Display Type LCDc
Manufacturer Warranty
Warranty on your Gazelle bike
Gazelle provides up to a ten-year warranty on material and manufacturing defects on the frame and non-suspension front forks covering normal treatment, use, and maintenance. There is a five-year warranty on suspension front forks. A five-year warranty period applies for paintwork on the frame and the front forks. Parts on your bicycle are covered by a two-year warranty subject to normal use and maintenance.
You can also see Royal Dutch Gazelle's FAQ about their Manufacturer Warranty
