BATTERY ⁺
Battery | max. range BQ814 | 48 V | 814 Wh | -90 miles
Charger Stromer CR245 | 245 W
Max. charging time 4 h 45 min

Frame Aluminum

Rim Stromer 27.5 x 35 by Alex Rims
Tires | Dimension Pirelli Cycl-e ST for Stromer | 57-584
Brakes Stromer HD942 by TRP

Motor SYNO Drive II
Output in watts 720 W
Torque in Nm 44 Nm
Category US | CA Class 3, up to 28 mph | Class I, up to 32 km/h

MOTOR ⁺
Motor SYNO Drive II
Output in watts 720 W
Torque in Nm 44 Nm
Category US | CA Class 3, up to 28 mph | Class I, up to 32 km/h
________________________________________
BATTERY ⁺
Battery | max. range BQ814 | 48 V | 814 Wh | -90 miles
Charger Stromer CR245 | 245 W
Max. charging time 4 h 45 min
________________________________________
CONNECTIVITY ⁺

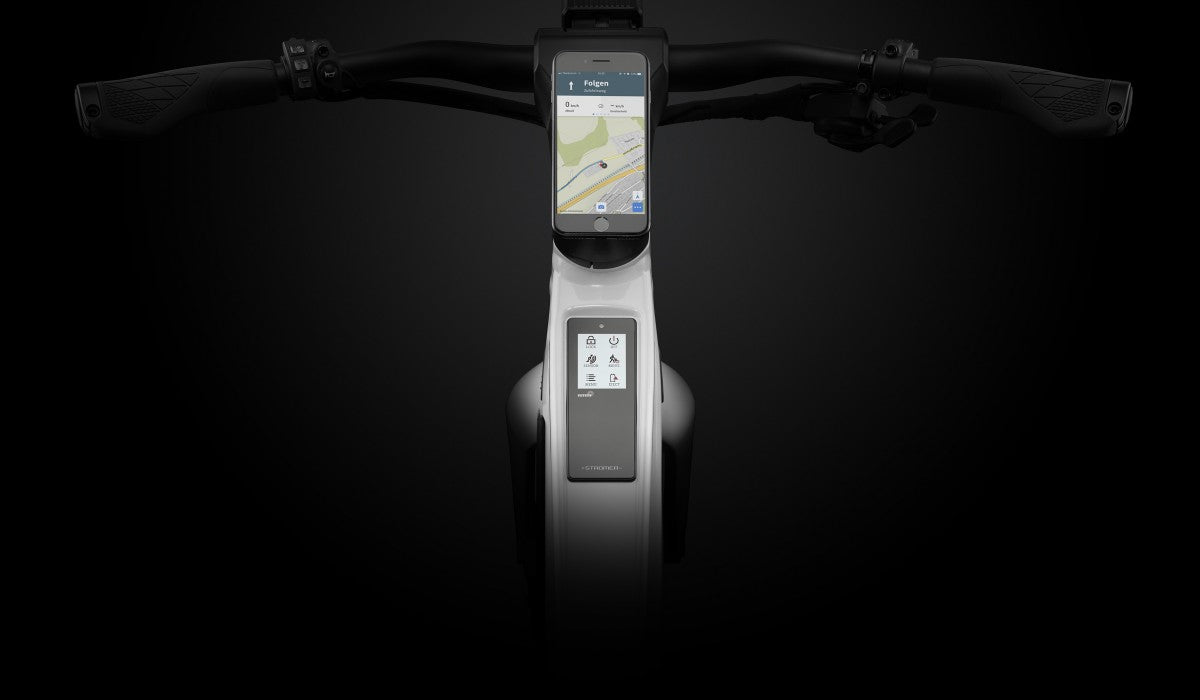

Display | Interface OMNI C
Connectivity Mobile connection (free of charge) | Bluetooth
App OMNI
Keyless Yes
Smartlock Yes
Settings Yes
Display of range Yes
GPS positioning Yes
Over-the-air-Updates Yes
________________________________________
COLOR ⁺
Frame color Deep Black | Cool White
________________________________________
COMPONENTS ⁺
Frame | Fork Aluminium
Frame size Sport M <178 cm | L 175 - 188 cm | XL >185 cm
Frame size Comfort M <178 cm (Cool White only)
Stem Stromer Urban +5° | 105 mm (Comfort: Stromer Comfort +20° | 110 mm)
Stem cell phone bracket Yes
Handlebar Sweep Handlebar (rise 0 mm | Back Sweep 15°)
Grips Stromer by Ergon custom GS1 all black
Rim Stromer 27.5 x 35 by Alex Rims
Tires | Dimension Pirelli Cycl-e ST for Stromer | 57-584
Brakes Stromer HD942 by TRP
No. of pistons at front | rear 4 | 2
Brake disk at front | rear 203 mm | 203 mm

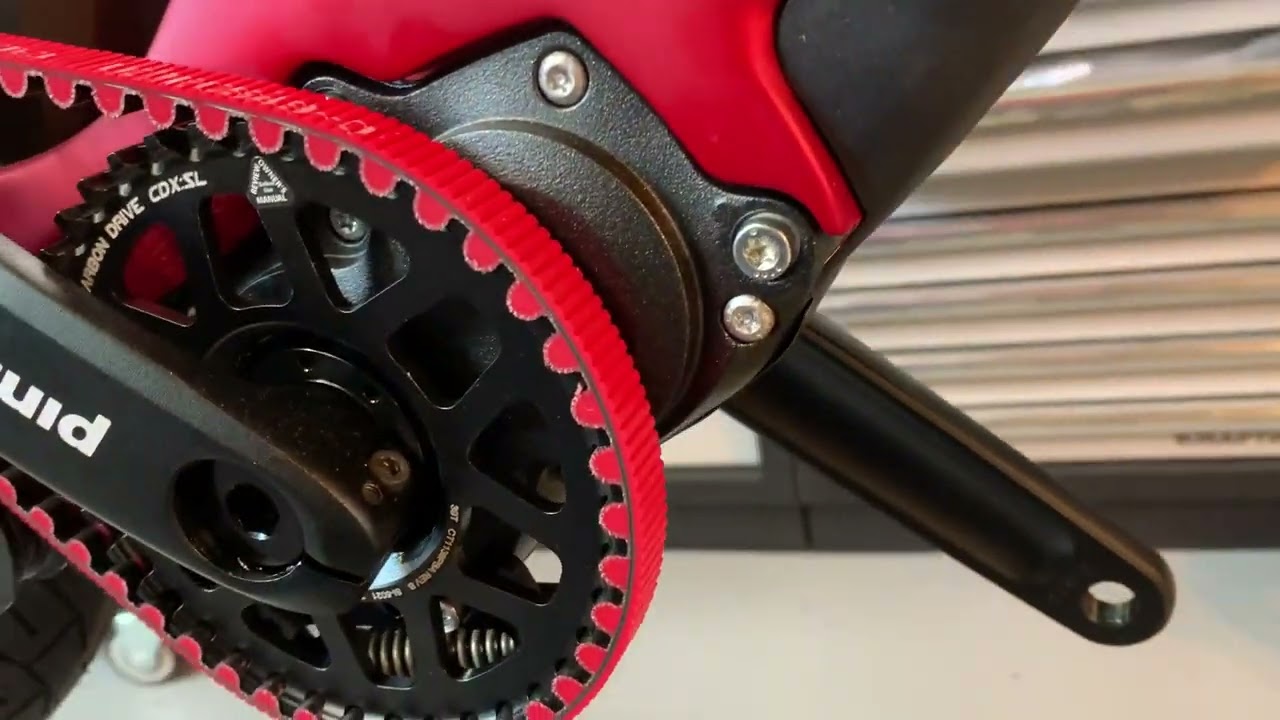

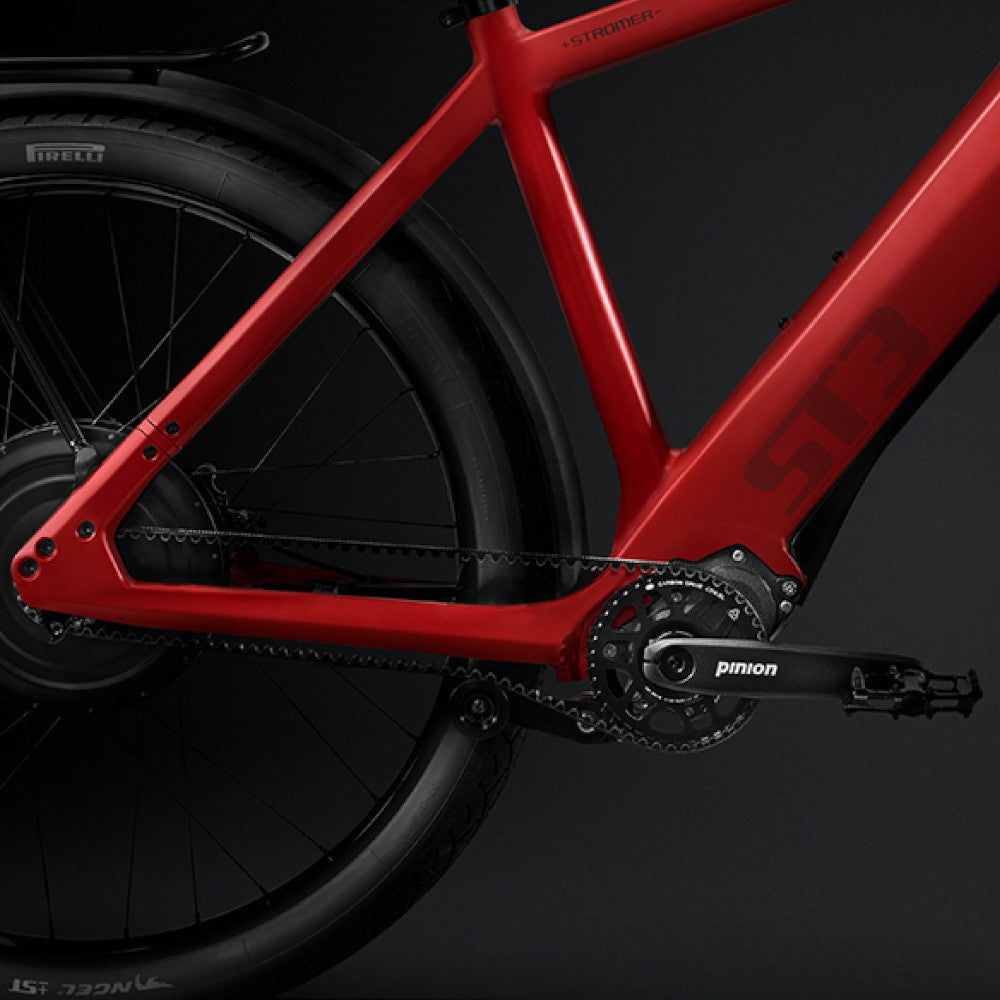

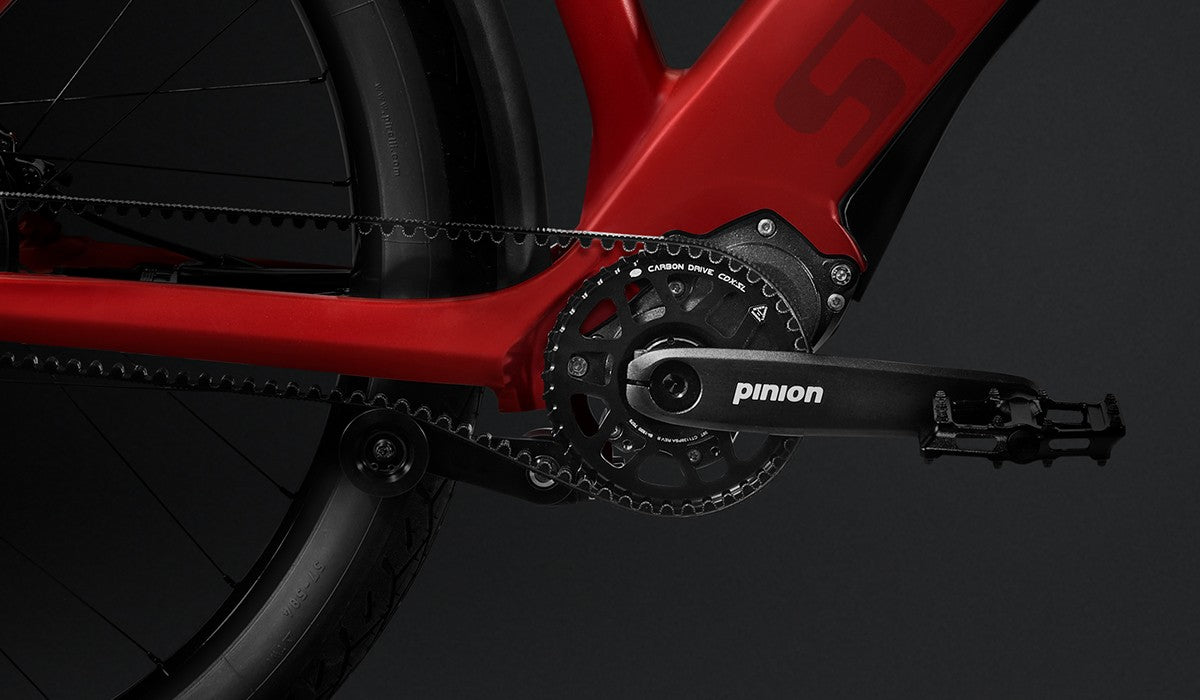

Shifting system Shimano XT/SLX Microshift 11 Speed 11-42 | Pinion C1.9 XR 9-Speed (568%)
Crank FSA Gossamer | Pinion Forged-175, 52T
Saddle Selle Royal VIVO | Ergon SFC 30
Fender Yes
Carrier | max. 22.5 kg Yes
Horn Yes
Stromer Daylight Yes
Headlights Roxim Z4E Pro
Lumen low-beam | high-beam 600 | 900
Rear light with brake light Roxim R3E
________________________________________

Stromer warranty provisions and limitations of liability.

myStromer AG (hereafter: Stromer) congratulates you on the purchase of your new Stromer product. Our name stands for the highest quality, durability and functionality during the definition, production and machining of the materials used as well as for a captivating appearance in the processing, concept and design.

To ensure that you can use your high-quality product from Stromer to experience unlimited enjoyment and riding fun over many years, certain rules must be adhered to that are defined below and specifically in your operating instructions. Bringing the bikes into their definitive ready-for-road state and therefore assuring riding safety, in particular adjusting the seat position, suspension, gears and brakes to suit the end user, must be performed exclusively by trained specialists.

You as the end customer shall be designated and addressed as buyer (hereafter: buyer). These warranty provisions shall regulate the warranty services of Stromer to the buyer and the preconditions under which claims can be made on the warranty services.

The complete warranty provisions as well as the operating instructions can be consulted at any time on the Stromer website: www.stromerbike.com

The version of the warranty provisions that is valid at the time of purchase shall be decisive.

1. Manufacturer warranty.

Upon presentation of the original receipt of purchase, the buyer shall be entitled to the warranty services as set forth in the following provisions.

2. Products covered by the warranty.

The warranty shall cover all Stromer-specific components that are available exclusively from authorized Stromer dealers, hereinafter referred to as Stromer products. The warranty extends exclusively to Stromer products that are new and exhibit a material or production defect. All other parts and components shall be excluded from this warranty.

Original bike components supplied by other manufacturers (in other words, non-Stromer products) shall be subject to the warranty provisions of the manufacturer in question.

3. Warranty period.

ST1: 2 years
ST1 X: 2 years
ST2: 2 years
ST2 S: 3 years
ST2 with belt drive (from production year 2020): 3 years
ST2 Pinion: 2 years
ST3: 2 years
ST5: 2 years
ST7: 2 years

Option warranty extension:

The purchaser of a Stromer model (from model year 2018) will receive an email 30 days before the regular warranty expires with the offer to extend the warranty for another year. The warranty can be extended by a maximum of 3 years. The battery is excluded from the warranty extension.

Irrespective of model:

• Frame - 3 years (valid for bicycles manufactured up to and including 2016, bikes with 26 inch wheels)
• Frame - 10 years (valid for bicycles manufactured as of 2017, bikes with 27.5 inch wheels)
• Battery – 75 % of capacity within 2 year

4. Scope of the warranty services.

Stromer assures the following services on the basis of this warranty throughout the respective warranty periods:

• At Stromer's discretion, repair or replacement with parts/components of the same value, whereby the replacement may vary from that being replaced with regard to the model and/or color;
• Services that are not included in the warranty and lie within the area of expertise of the authorized Stromer dealer as well as cleaning of Stromer bikes that are delivered dirty, for example, shall be charged at the usual hourly rate and the costs incurred for materials and transport shall be charged;
• Stromer grants a 2-year warranty on a repair performed or replacement part fitted during the warranty period due to a material or production defect, irrespective of other warranty periods;
• If a Stromer bike is exchanged in full for a new one due to a material or production defect, the same warranty provisions as for a newly purchased Stromer bike shall apply.

5. Warranty services.

The following components/parts and circumstances shall be excluded from this warranty or lead to exclusion from this warranty:

• If the vehicle is technically modified without the approval of Stromer
• Subsequent conversion/installation of incompatible or non-original parts (see operating instructions)
• Wearing parts (see definition of wearing parts given below)
• Non-Stromer parts/components
• Any modifications to the version as delivered (including in particular repainting not performed by an authorized Stromer dealer)
• Repairs that have not been carried out by trained specialists
• Inappropriate use/transport (see operating instructions)
• Missing service inspections within an appropriate time limit (see operating instructions)
• Inappropriate maintenance/operation/upkeep (see operating instructions)
• Damage resulting from omitted or incorrect adjustment(s) or worn components
• Consequences of a fall
• Damage caused by climatic conditions or normal wear
• Damage due to unsuitable cleaning agents, utensils such as high-pressure cleaners or the additives used
• Commercial lending/transfer
• Failures of the OMNI functions due to limited or non-existent network availability

The following parts shall constitute wearing parts and be excluded from this warranty:

• Bump stops in forks and shock systems
• Coatings on fork stanchions and shock absorber pistons
• Moving parts made from rubber
• Brake pads
• Brake disks
• Seals
• Springs
• Rim flanges/braking surfaces
• Freewheel bodies
• Slide rings and plain bushes
• Bar grips and handlebar tape
• Cassettes, cogs, chain rings
• Chains
• Bearings and bearing seatings
• Airtight seals/O-rings
• Tires
• Shifting lever rubber coatings
• Shifting components
• Foam parts
• Fenders, chain guide
• Actuating cables and housing
• Spokes
• Dust rings

6. Assertion and procedure of warranty claims.

Warranty claims are to be submitted to your authorized Stromer dealer in conjunction with presentation of the original receipt of purchase from an authorized Stromer dealer. The warranty period shall run from the date of sale/registration or activation (whichever comes first).

Your authorized Stromer dealer shall report your warranty claim, including a description and the serial numbers of the defective parts and the frame number, to Stromer, which shall decide on the further procedure immediately upon receipt of the warranty claim. Should clarification require the parts to be checked, these shall be removed and submitted to Stromer in a clean state.

Products repaired or replaced under the warranty shall be sent to the authorized Stromer dealer. Assembly and basic adjustment must be performed by the authorized Stromer dealer. Should these preconditions not be adhered to, warranty claims of any kind can be rejected.

7. Severability clause.

Should a provision from this warranty be or become invalid or exhibit a loophole to be closed, the legal force of the remaining provisions shall remain unaffected. Instead of the missing or invalid provision, a provision that comes as close as possible to the meaning of the original provision shall apply.

8. Applicable law and place of jurisdiction.

For all disputes from or in conjunction with this warranty (also with regard to the question of its conclusion or validity), the exclusive jurisdiction of the courts from the City of Bern shall be agreed. This purchase contract shall be subject to Swiss law with the exclusion of the conflict of laws as well as the United Nations Convention on Contracts for the International Sale of Goods (CISG).

myStromer AG
Freiburgstrasse 798
3173 Oberwangen
Switzerland

No further warranty claims.

The warranty provisions of Stromer are comprehensive and final.

In particular no party (including the authorized Stromer dealer) is or shall be authorized by Stromer to grant any guarantees or other warranty entitlements or rights over and above these warranty provisions.

Exclusively Stromer shall be authorized to rule on any warranty claims for Stromer products.

Limitation of liability and exclusion of liability.

Stromer's liability for damage resulting from defects to the Stromer product shall always be limited at most to the original purchase price of the Stromer product in question.

Stromer shall in no circumstances accept liability for damage caused by force majeure events, fortuitous and/or unforeseeable events, or consequential damage, in other words for direct or indirect damage, lost profit or other losses that may result from a defect to a Stromer product.

Any liability for damage that may occur through use of the Stromer product by third parties shall likewise be excluded. Solely the buyer or rider shall be responsible for such damage to third parties.

The above limitation of liability and the exclusion of liability shall not apply to the extent that Stromer is liable on the basis of legally mandatory regulations.
