Urban Arrow Breeze

Urban Arrow Breeze

$9,499.00 CAD
$9,499.00 CAD
Sale Sold out
Shipping calculated at checkout.
Color: Green

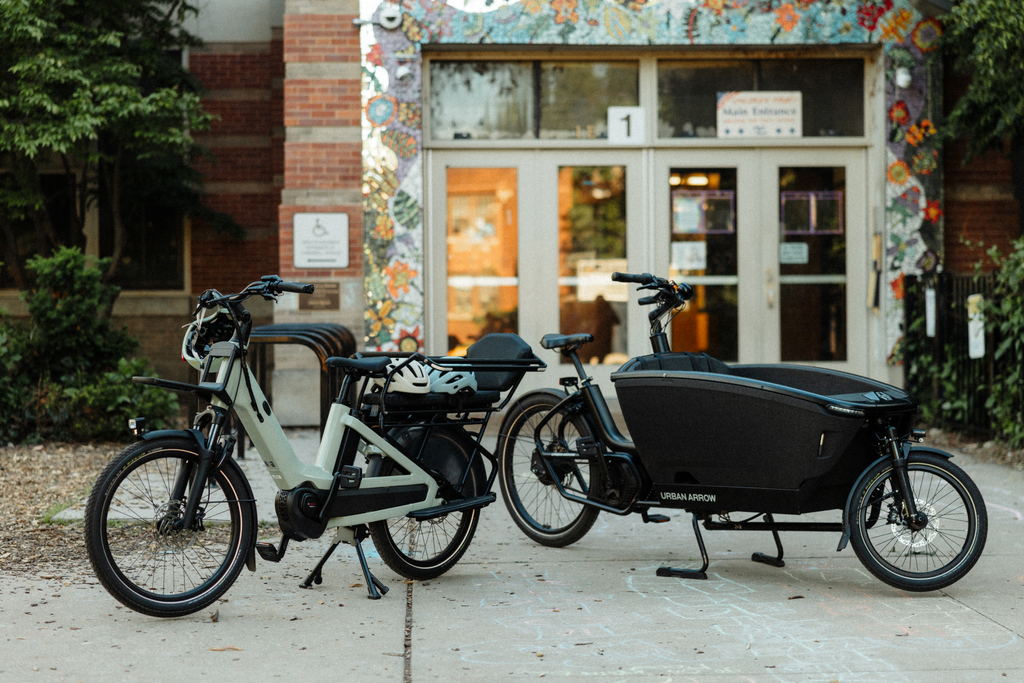

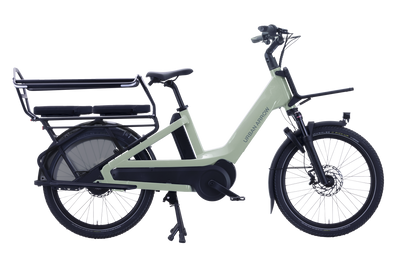

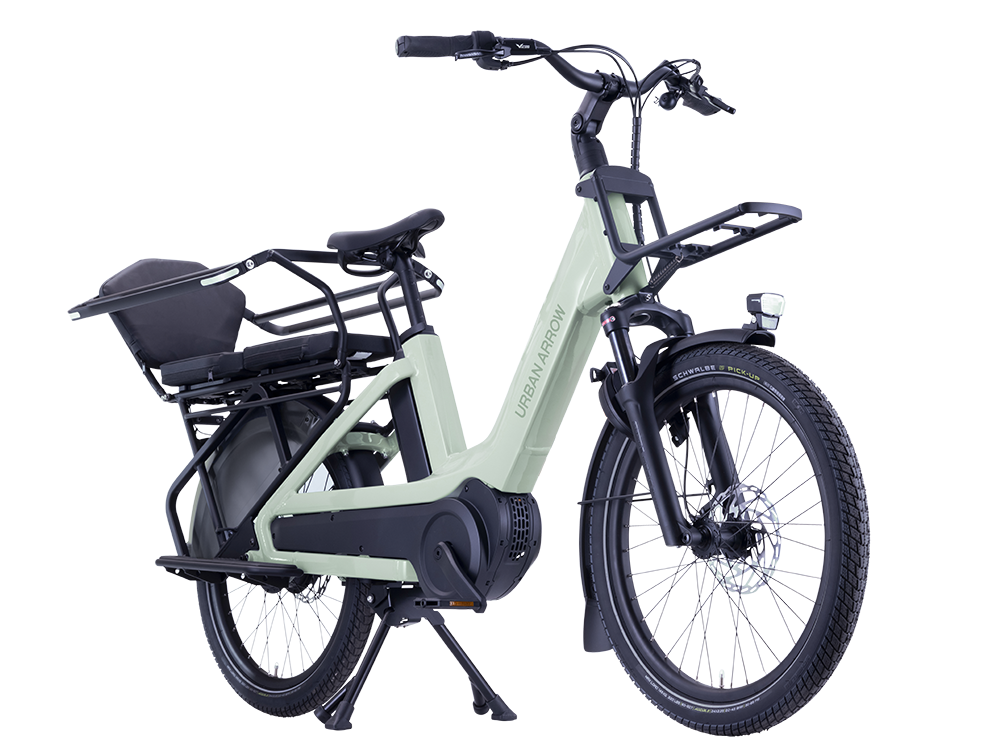

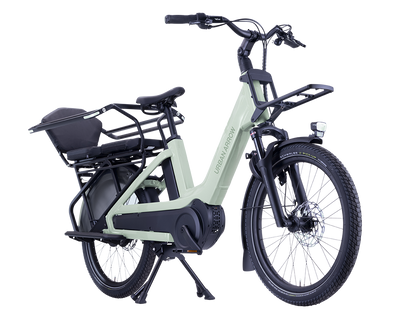

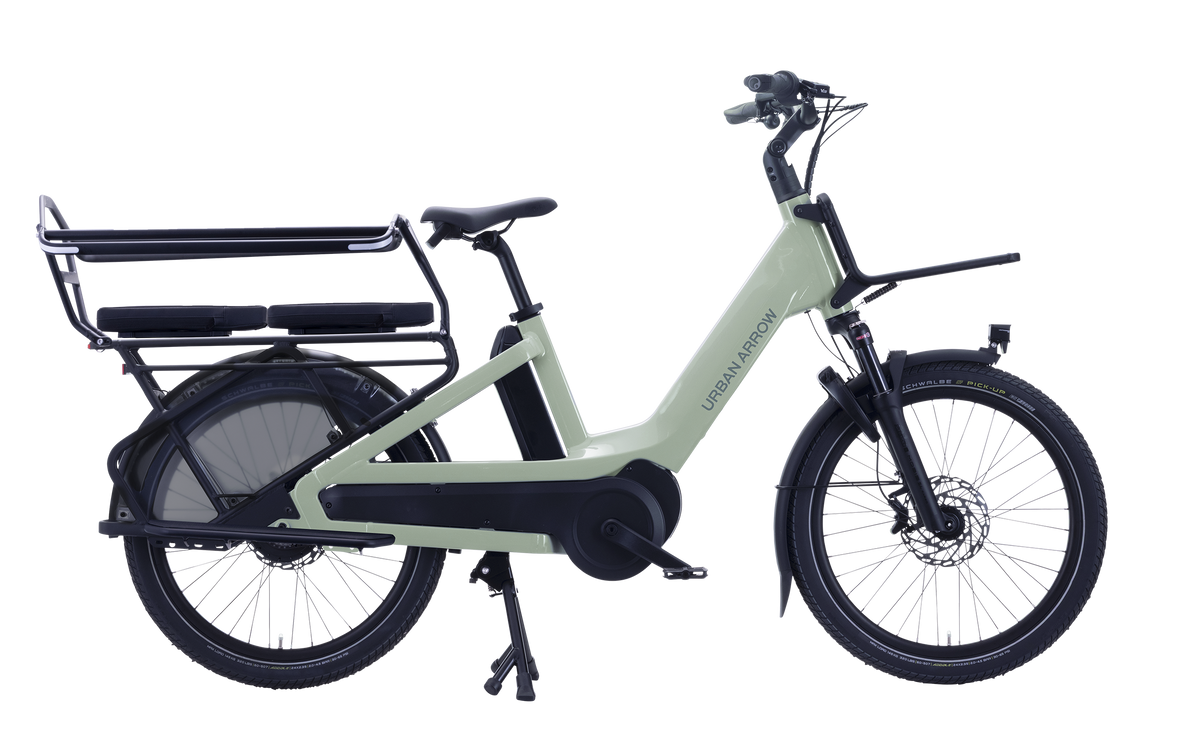

Urban Arrow introduces its first longtail bike: the Breeze!

Breeze is as compact as a regular bike, but with the capacity of a cargo bike. With an 85Nm Bosch motor and stepless Enviolo beltdrive, it's perfect for Vancouver.

Effortlessly maneuver through the city and enjoy the smoothest ride to anywhere in a comfortable Dutch-style riding position, without compromising on premium quality, power or design. The best part? All key accessories are already included in the purchase price, so you are ready to ride from the get-go.

Key Features of the Urban Arrow Breeze Cargo Bike:

  • Compact Size: Regular eBike size, but with the capacity of a cargo eBike.
  • Stable Kickstand: For secure loading and unloading of precious cargo.
  • Integrated Protection: Spoke and belt guards to keep little fingers and legs safe.
  • High-Capacity Rear Rack: Designed to carry two passengers comfortably.
  • Tool-Free Flexibility: The MIK HD system for instant accessory changes.
  • Security: Built-in front lock and dedicated secure storage for a chain lock.
  • Intuitive Control: Fixed Purion 200 display for simple, seamless operation

We're excited to offer this eBike at Reckless Shipyards. For 14 years, Urban Arrow has defined cargo excellence, and the new Urban Arrow Breeze continues that legacy by bringing premium DNA to a stable, easy-to-ride longtail platform designed for families.

This high-performance bike features 24-inch wheels and a low step-through frame for maximum stability, powered by a Bosch Cargo Line motor, an Enviolo internal hub, and a silent Gates Carbon belt drive.

Despite its compact footprint, the Breeze is built for heavy-duty use, boasting a 440lb total payload capacity with 176lb supported by its versatile MIK HD rear rack.

Book a Test Ride at Reckless Shipyards
View full details

Specifications

Battery

Range - Long running Bosch 545Wh

Frame And Fork

Frame - Aluminum Alloy - Compact longtail frame

Wheels And Brakes

Wheels - Ryde Andra 29 24", Ryde Andra 29 24"

Tires - Schwalbe Pick-Up 60-559

Brakes - Tektro, 180mm front, 180mm rear

Brake Levers - Tektro Volans HD-T535

Motor

Motor - Bosch Cargo Line BDU38 BES3 - 85 Nm

Enviolo Twist pro

Full Spec

Frame: Urban Arrow Breeze
Drive unit: Bosch Cargo Line BDU38 BES3 - 85 Nm
Battery: Bosch Powerpack 545Wh
Display: Bosch Purion 200
Connected GPS-module: Optional

Hub: Enviolo Heavy Duty
Shifter: Enviolo Twist pro
Drive line: Gates Carbon Belt Drive CDX
Rear sprocket: Gates Enviolo, 24t
Front sprocket: Gates Carbon Drive CDX, 50t

Rear brake: Tektro Volans HD-T535
Disc rear: Tektro 180 mm
Front brake: Tektro Volans HD-T535
Disc front: Tektro 180 mm
Brake pads: 5mm pad - Q13RS

Rear light: Spanninga Pimento
Front light: Trelock Lighthammer 80

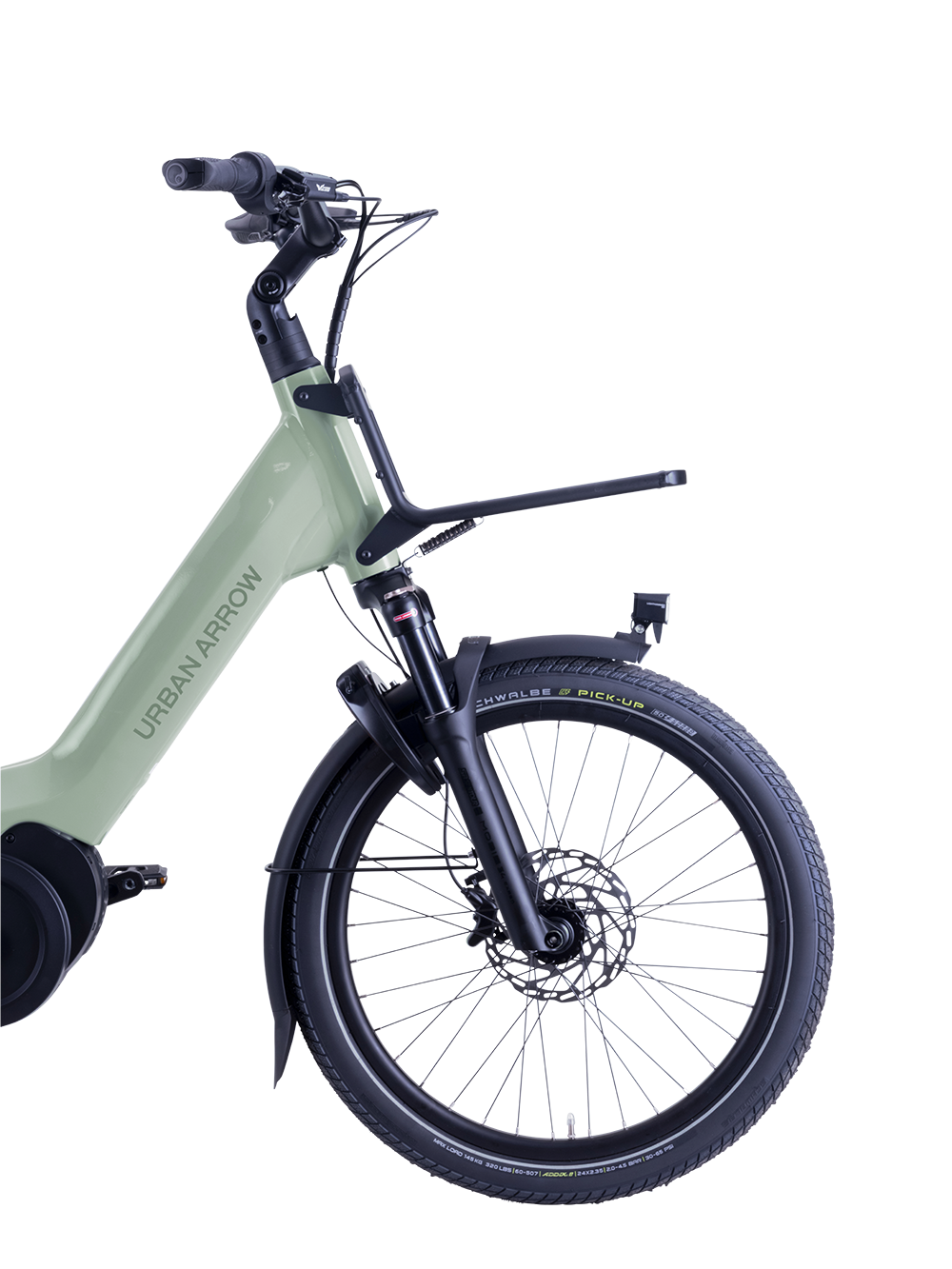

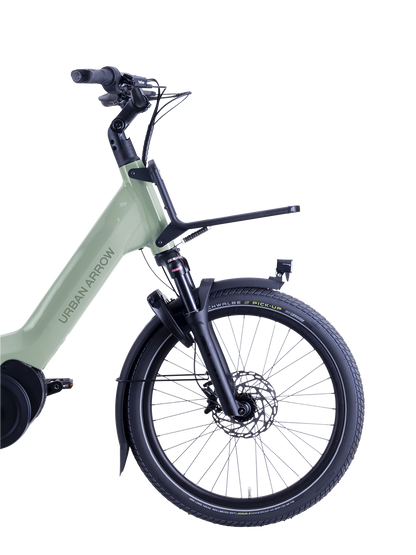

Fork: Suntour Mobie34 Boost CGO Coil, 24", 80mm
Stem: Tranz X JD ST289A
Handlebar: Urban Arrow Breeze 31.8
Grips: Ergon GC10-SD 130/85
Saddle: Selle Royal Orbis

Rim Front: Ryde Andra 29 24"
Rim Rear: Ryde Andra 29 24"
Rear tire: Schwalbe Pick-Up 60-559
Front tire: Schwalbe Pick-Up 60-559

Bike weight: 77.2 lbs (35 kg)
Total weight: 440.9 lbs (200 kg) (bike + rider + load)
Max rear load: 176.4 lbs (80 kg)
Max front load: 33.1 lbs (15 kg)
Max rider weight: 264.6 lbs (120 kg)

Manufacturer Warranty

What are the warranty conditions for the different parts of the Urban Arrow Family?

If (a part of) your Urban Arrow is defect or no longer works properly, visit your Urban Arrow dealer within 2 months of noticing the defect. The dealer is aware of our guarantee conditions and can assess whether the defect falls within the guarantee.

Has the dealer determined that the defect may fall within our warranty? Then they can submit a warranty request to us. This application will be assessed and processed by us. At Urban Arrow, we will assess whether the warranty is applicable. The dealer will send the part in question together with the purchase invoice to us, stating the complaint, after which (if applicable) replacement items will be sent to the dealer.

Please note! Your dealer may charge for any assembly, disassembly or transport costs.

The following warranty conditions apply to your Urban Arrow*:

  • 5-year warranty on the frame and fork, excluding wear parts;
  • 2-year guarantee on the paintwork and visible rust from the inside;
  • 2-year warranty on all other parts. Wear parts such as tyres, chain, pedals, bearings, seatbelts, ball bearings among others, are not covered by this warranty;
  • 2-year warranty on all accessories;
  • 2-year warranty on the battery. The capacity of the battery will decrease depending on the number of charging cycles and the life of the battery. This reduction in capacity is not covered by the warranty;
  • During the valid warranty period(s), all parts which Urban Arrow has determined to have a construction or material defect will be repaired or reimbursed at Urban Arrow's discretion.
  • The manufacturer's warranty can only be claimed on presentation of the original purchase invoice.

*All conditions apply from the date of purchase and only apply to the first owner.

Your warranty becomes invalid or inapplicable if your Urban Arrow and/or its parts:

  • Has been modified in construction. Never make changes to your electric drive unit or other products suitable to improve the performance of your e-bike;
  • Has had inadequate maintenance;
  • Has been abused or been involved in an accident;
  • Has defects due to normal wear and tear;
  • Has been damaged during transport;
  • Has been damaged by attachments (such as bags) not sold or manufactured by Urban Arrow;
  • Has been used other than for which the product is intended;
  • Despite damage and/or defects having been found, use has continued and as a result has worsened the damage;
  • Has not been serviced/repaired by an authorised Urban Arrow dealer.

    More info can be found here.
