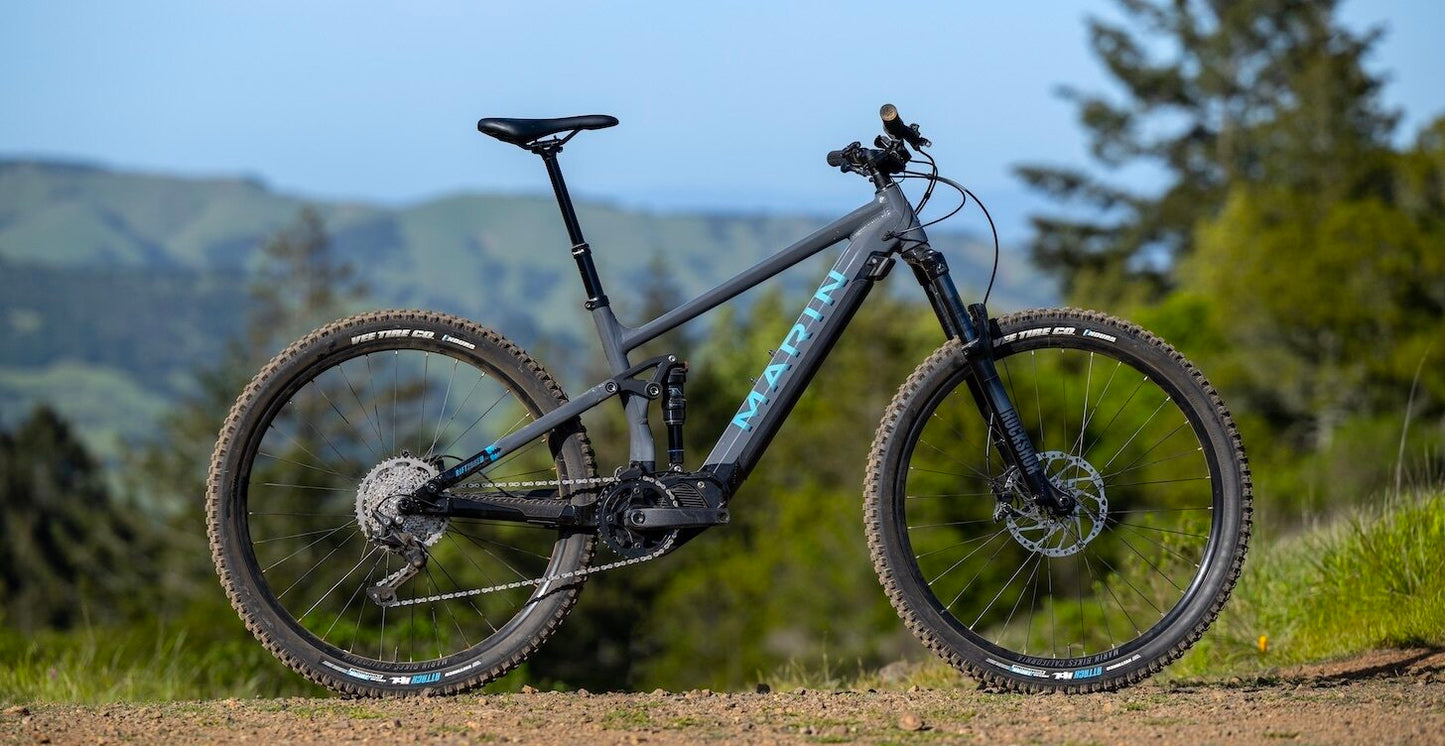

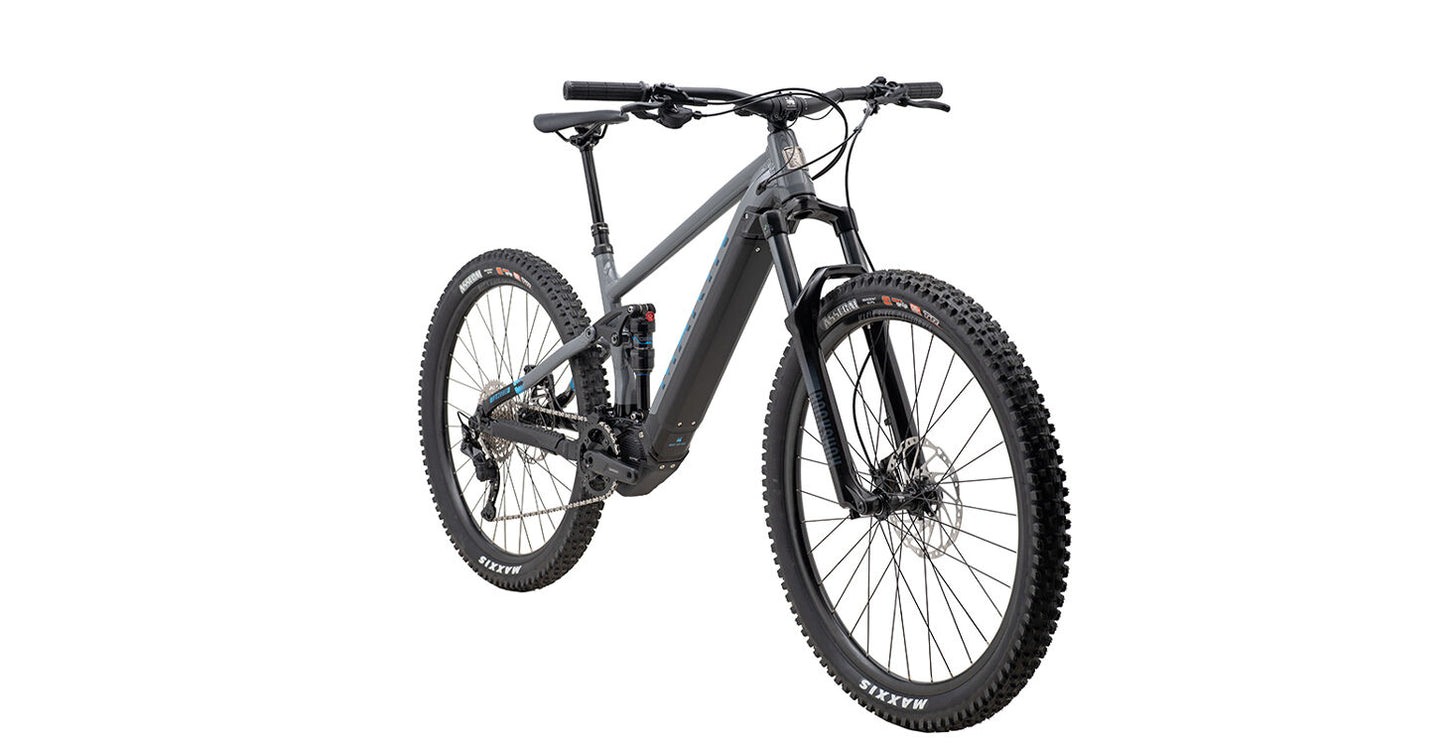

Marin 2024 Rift Zone E – Your All-Terrain Electric Mountain Bike
The Marin 2024 Rift Zone E is a versatile and powerful electric mountain bike designed for those who crave adventure on the trails. Built to deliver a smooth, controlled, and dynamic riding experience, this e-MTB is engineered with precision to tackle various terrains, from technical climbs to flowing singletrack. With its advanced suspension system, powerful motor, and high-performance components, the Rift Zone E perfectly balances agility, control, and comfort. Let us dive into the details that make this bike stand out in the world of electric mountain biking.
Frame: Series 4 Aluminum Frame with MultiTrac Suspension Technology

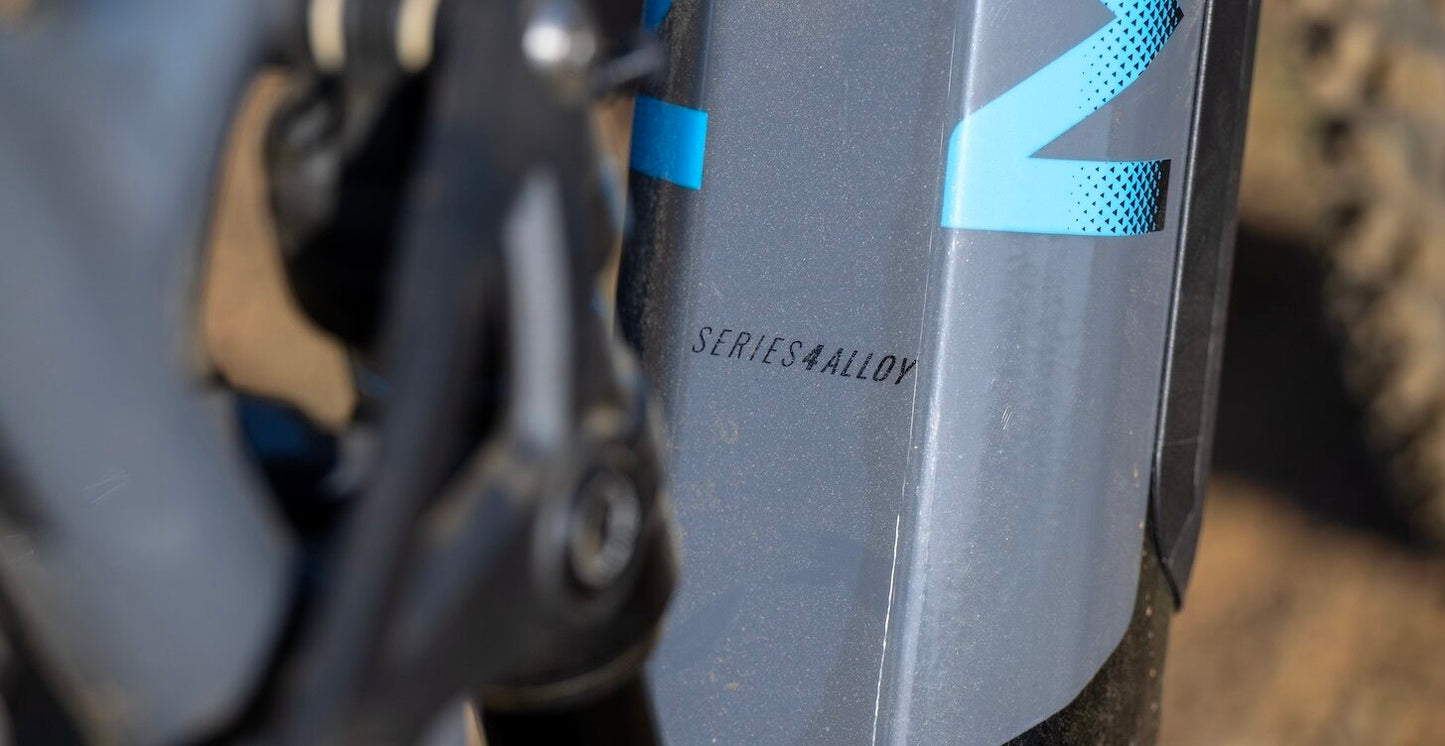

The backbone of the Rift Zone E is its Series 4 Aluminum Frame, meticulously designed to combine strength, lightweight performance, and durability. Constructed with butted and hydroformed tubing, the frame ensures a robust yet agile ride, making it suitable for aggressive trail riding and technical maneuvers. Marin’s engineering expertise shines through in the frame’s design, seamlessly integrating the motor and battery, maintaining a sleek and balanced aesthetic.
Central to the frame’s performance is the MultiTrac Suspension Technology, providing 140mm of rear travel. This suspension system enhances traction and absorbs shocks, allowing the rear wheel to stay planted for superior grip and control on rugged terrain. The MultiTrac suspension ensures that the bike remains stable and responsive, whether you are climbing steep trails, navigating rock gardens, or charging down descents.
The bike's geometry is optimized explicitly for trail riding, giving riders a balanced and confident stance that supports quick handling and stability. With the Rift Zone E, you can expect an agile and controlled ride suited for tackling diverse trail conditions.
Motor: Shimano STEPS EP6 – Power, Precision, and Performance
The heart of the Rift Zone E is its Shimano STEPS EP6 Drive Unit, offering 250 watts of power and 85Nm of torque. This mid-drive motor is designed to provide a natural and efficient pedal-assist experience, ensuring you have the power needed to conquer climbs and maintain speed on flat or downhill sections. The EP6 motor adapts seamlessly to your pedalling input, delivering consistent power while retaining the authentic feel of a mountain bike.
The Shimano EP6 motor features multiple assist levels, allowing riders to choose the appropriate setting for their ride, whether they need a boost for climbing steep hills or want to conserve energy for long-distance adventures. The motor’s compact and lightweight nature ensures the bike remains balanced and maneuverable, enhancing stability when navigating technical sections or tight corners.
Battery: Shimano BT-E8035, 504Wh – Long-Lasting and Efficient Power
To complement the Shimano EP6 motor, the Rift Zone E has a Shimano BT-E8035, 504Wh battery seamlessly integrated into the frame is downtube for a sleek look and balanced weight distribution. With this high-capacity battery, riders can expect a range of up to sixty-two miles (100 km), making it perfect for all-day trail adventures without worrying about running out of power.
The battery is removable and securely locked to the frame, ensuring it remains safe when you park the bike in public areas. The design also allows for easy removal, making charging the battery at home or while on the go convenient. The fast-charging capability ensures minimal downtime, so you can quickly return to your trail adventures.
Suspension: RockShox Recon Silver RL Fork – Smooth and Responsive Control
The Rift Zone E's front suspension features the RockShox Recon Silver RL Fork with 140mm travel, designed to absorb impacts and provide a smooth ride over rough and technical terrain. The fork’s Boost axle increases stiffness, ensuring precise steering and control, even when tackling aggressive and technical trails.
With adjustable compression and rebound settings, the RockShox fork allows riders to fine-tune their suspension based on the trail conditions and personal riding preferences. This level of customization ensures that whether you are riding fast downhill, navigating rocky paths, or climbing technical sections, you will experience smooth and controlled performance.
Drivetrain: Shimano Deore 10-Speed – Reliable Shifting Across Trails
The Marin Rift Zone E is fitted with a Shimano Deore 10-speed drivetrain, which provides a wide range of gears for tackling various trail conditions. The 10-speed cassette ensures you have the right gear for steep climbs, fast descents, and everything in between, maximizing efficiency and pedalling performance.
The Shimano Deore system is known for its durability and precise shifting, even under load. The shifters provide quick and reliable gear changes, helping you maintain momentum and control throughout your ride. This dependable drivetrain ensures you can confidently tackle varied terrain easily, making your trail experience smooth and efficient.
Brakes: Tektro Orion Hydraulic Disc Brakes – Superior Stopping Power and Control
Safety and control are crucial when riding on technical terrain, and the Rift Zone E is equipped with Tektro Orion Hydraulic Disc Brakes for consistent and powerful stopping power. These brakes feature 180mm rotors, providing exceptional performance even in wet or muddy conditions.
The hydraulic system offers smooth modulation, allowing precise control over braking intensity, whether navigating tight corners or managing speed on descents. The reliability and power of the Tektro Orion brakes give riders confidence, knowing they have the control needed to handle any trail challenge.
Wheels and Tires: Marin Aluminum Double Wall Rims and Vee Tire Co. Flow Snap Tires
The Rift Zone E rolls on Marin Aluminum Double Wall rims, which are built to withstand the rigours of trail riding while remaining lightweight. These durable rims are paired with Vee Tire Co. Flow Snap 2.35” tires, offering superior traction and grip across various trail surfaces. The aggressive tread pattern ensures stability and control, providing the confidence to tackle loose soil, rocks, or technical obstacles.
The bike is tubeless-ready, allowing riders to run lower tire pressures for increased traction and a smoother ride. The tubeless setup also reduces the risk of pinch flats, making it ideal for all-day trail adventures. The wide tires and sturdy rims provide stability and control, allowing you to take on challenging terrain confidently.
Ergonomics and Comfort: Marin Mini Riser Handlebar and TranzX Dropper Post
The Marin Mini Riser Handlebar offers a comfortable and ergonomic grip, promoting a riding position that supports control and balance. The handlebar’s design ensures precise steering, allowing riders to navigate trails confidently and efficiently.
The TranzX Dropper Post is an essential feature for any serious trail rider. It provides on-the-fly adjustments to saddle height. This dropper post allows riders to lower the saddle for technical descents or challenging trail features and return it to full height for efficient climbing pedalling. The handlebar-mounted remote ensures these adjustments are easy and quick, enhancing the bike’s adaptability and performance.
The Ultimate All-Rounder for Trail Adventures
The Marin 2024 Rift Zone E is a powerful and versatile e-MTB designed for riders who want to explore diverse trails confidently. Its advanced Shimano EP6 motor, responsive suspension system, and high-quality components make it a top choice for trail enthusiasts seeking agility and power. From its lightweight Series 4 Aluminum Frame to its precise braking system, every detail of the Rift Zone E is crafted to offer an exceptional trail experience.
Why Choose the Marin Rift Zone E?
The Marin Rift Zone E is the ideal choice for riders who demand versatility and performance in their e-MTB. It is built to handle various trail conditions, offering a perfect balance of power, agility, and control. Whether you are an experienced mountain biker looking to enhance your rides or a trail enthusiast seeking a dependable and responsive bike, the Rift Zone E is designed to meet the demands of any adventure, providing an unparalleled trail experience every time.
Share
Couldn't load pickup availability
Specifications
Battery
Shimano BT-EN805L, Internal 504Wh
15-43 miles (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 11 Hours (estimated, under ideal conditions)
Frame and Fork
Frame - All New Series 4 Alloy Frame, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
Fork - RockShock 35 Silver R 29", Motion Control Damper, 140mm Travel, Maxle Stealth Axle, 42mm Offset
Wheels And Brakes
Brakes Front - TRP Slate EVO 4-Piston Hydraulic, 203mm Rotor, 2.3mm Thick
Brakes Rear - TRP Slate EVO 4-Piston Hydraulic
Wheels - Marin Aluminum Double Wall, 29" Diameter, 29mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
Tires - Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Override E-Specific Casing
Motor
Crankset - Shimano EM600, 160mm Length, 38t Chainring
Motor - Shimano Steps EP6 Drive Unit, 250W, 85Nm, 20MPH Top Assisted Speed
Full Spec
FRAME
All New Series 4 Alloy Frame, 140mm MultiTrac Suspension,
Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed
Sensor
FORK
RockShock 35 Silver R 29", Motion Control Damper, 140mm
Travel, Maxle Stealth Axle, 42mm Offset
SHOCK

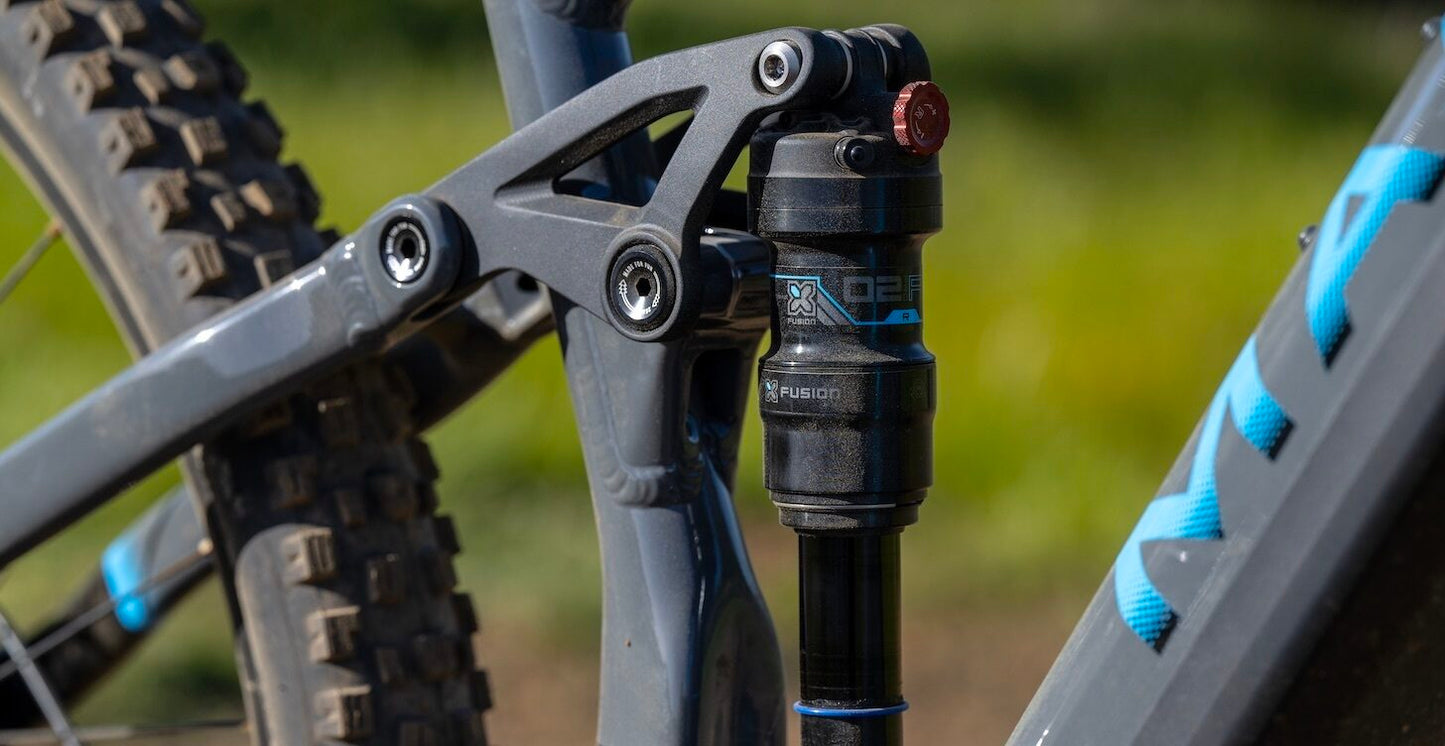

X-Fusion 02 PRO R, Compression and Rebound Adjustment,
Custom Tune, 210x55 25xM8 Lower Mount & Upper Mount
RIMS
Marin Aluminum Double Wall, 29" Diameter, 29mm Inner
Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
HUB REAR
Shimano HB-TC500, 148x12mm, Centerlock, Standard Freehub
Body
HUB FRONT
Shimano FH-TC500, 110x15mm, Centerlock, 32H
SPOKES
14g Black Stainless Steel
TIRES
Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless
Compatible, Override E-Specific Casing
DERAILLEUR REAR
Shimano Deore, Direct Attachment, 10-Speed SGS
SHIFT LEVER
Shimano Deore, 10-Speed, I-Spec EV
CRANKSET
Shimano EM600, 160mm Length, 38t Chainring
MOTOR
Shimano Steps EP6 Drive Unit, 250W, 85Nm, 20MPH Top Assisted
Speed
CHAIN
KMC X-10E, Silver
CASSETTE

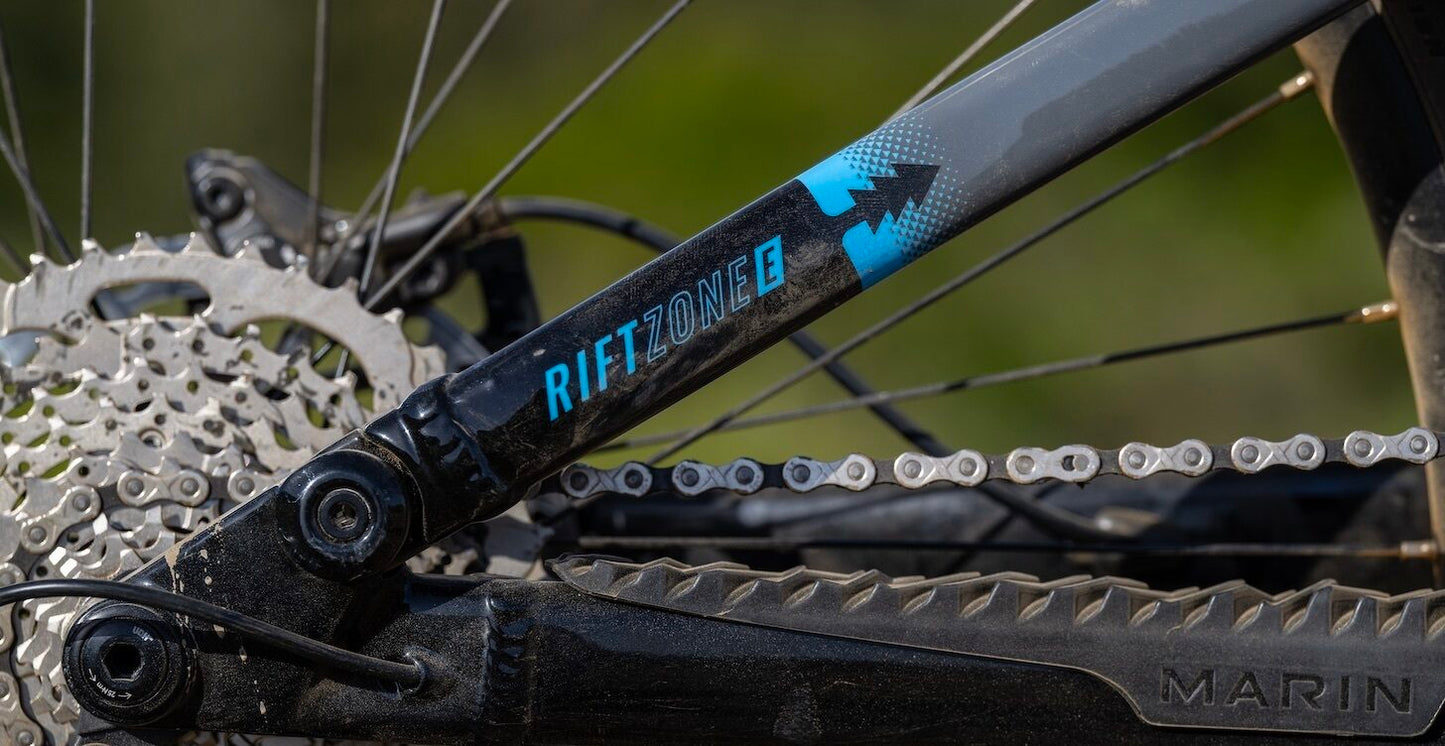

Shimano Deore 10-speed 11-46T
BRAKES FRONT
TRP Slate EVO 4-Piston Hydraulic, 203mm Rotor, 2.3mm Thick
BRAKES REAR
TRP Slate EVO 4-Piston Hydraulic
BRAKE LEVERS
Shimano MT4100 Hydraulic, I-Spec EV Compatible
HANDLEBAR
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width,
28mm Rise, 5º Up, 9º Back
STEM
Marin 3D Forged Alloy, 35mm
GRIPS
Marin Grizzly Lock On
HEADSET
FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
SEATPOST
TranzX, YSP18JL, 1x Remote, Size S 150mm Travel, All Other
Sizes 170mm Travel, 30.9mm
SADDLE
Marin eMTB Saddle
PEDALS
Marin MTB Plastic
BATTERY
Shimano BT-EN805L, Internal 504Wh
DISPLAY

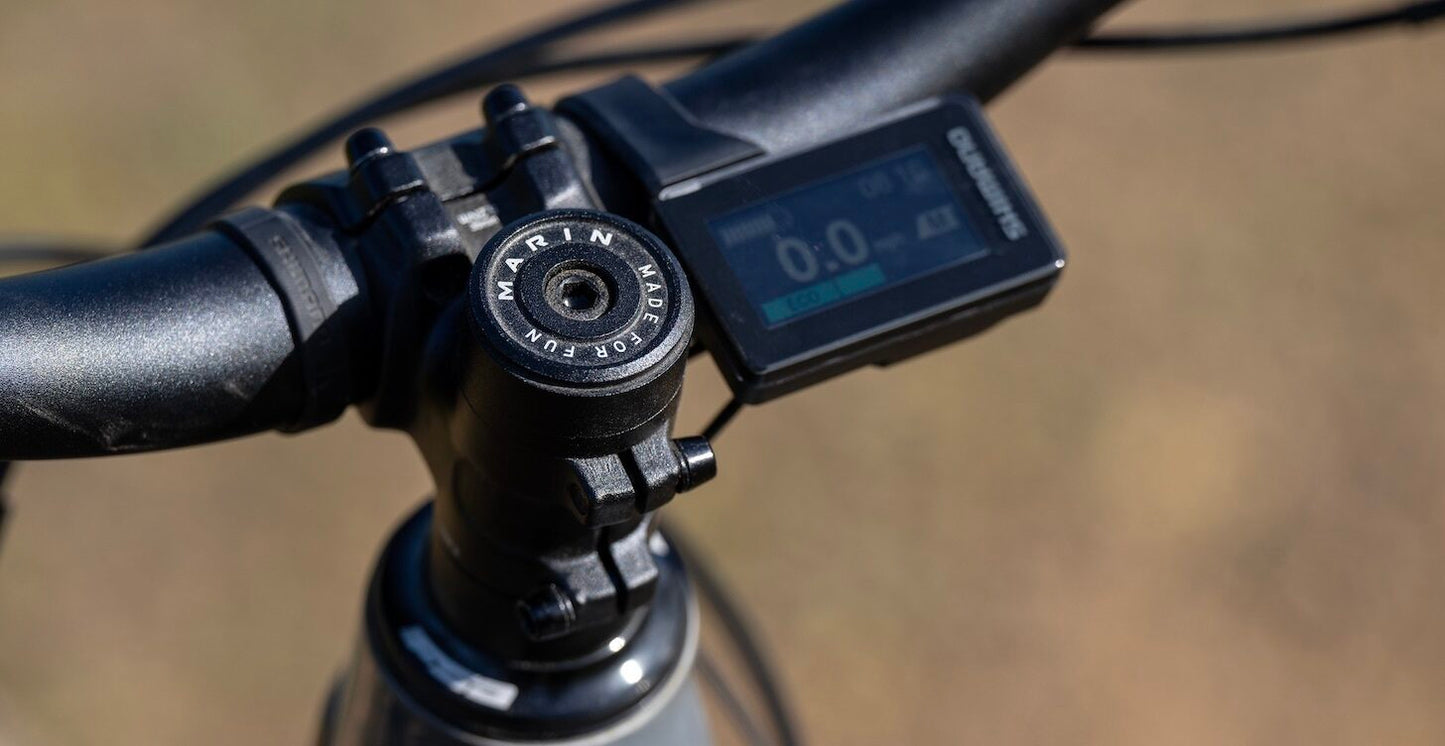

Shimano SC-E600
SWITCH
Shimano SW-EN600L Left Hand Switch for Assist Mode Change
EXTRAS
Shimano Battery Charger EC-E6002, Shimano CS-EN800
Chainguide
RANGE, CHARGING TIME
15-43 miles (Based on Rider Weight, Terrain, Climate and
Level of Assist Used), 4 Hours
Manufacturer Warranty
Limited Warranty
Marin Mountain Bikes, Inc. ("Marin") warrants to the original retail purchaser ("you") that the Marin product for which you received this warranty is free from defects in material and workmanship for the periods set forth on the below warranty table.
FRAMES Warranty Period
(From date of purchase)
- Carbon Fiber Frames and Forks: 5 Years
- Rigid Frames and Forks: Lifetime
- Full Suspension Frames: 5 Years
Complete Bicycle
The complete bicycle is warranted for one year (from date of purchase), including all original parts on the bicycle except tires, tubes, chains and other wear & tear items. Paint and decals are covered under this warranty.
This warranty period starts from the date of original retail purchase, and is valid only in North America. For warranty periods in other countries, please contact the distributor in your country. The warranty is only valid if the bicycle is purchased from, and assembled by, an authorized Marin dealer.
Warranty Limitations
This warranty does NOT cover suspension forks, and rear shocks on full suspension bikes. These items are covered by the suspension component manufacturer’s warranty. Please contact the suspension component manufacturer for any warranty needs.
This warranty is only offered to the original retail purchaser of the product, and is not transferable to a subsequent purchaser. Marin's sole obligation under this warranty is to either, at its discretion:
- Repair the claimed defect at no charge.
- Exchange the product with a product that is new or which is at least functionally equivalent to the original product.
- Offer a credit amount, determined by Marin, towards the purchase of a new product. Marin must be notified in writing of any claim under this warranty within 60 days of any claimed lack of conformity of the product.
- You may be responsible for some labor charges at your local bike shop, or some shipping charges, including return shipping if your bike is determined not to be a warranty.
The duration of any implied warranty or condition, of merchantability, fitness for a particular purpose, or otherwise, on this product shall be limited to the duration of the express warranty set forth above. In no event shall Marin be liable for any loss, inconvenience or damage, whether direct, incidental, consequential or otherwise, resulting from breach of any express or implied warranty or condition, of merchantability, fitness for a particular purpose, or otherwise with respect to this product, except as set forth herein. Some states or countries do not allow limitation on how long an implied warranty lasts and some do not allow exclusions or limitations of incidental or consequential damages, so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which may vary, from location to location. This warranty will be interpreted pursuant to the laws of the United States. The original English language version/meaning of this warranty controls over all translations and Marin is not responsible for any errors in translation of this warranty or any product instructions.
No company or persons (including employees or agents of Marin) are authorized to modify, enlarge or extend this warranty in any way or to make any other warranties, expressed or implied on behalf of Marin. This warranty is not intended to confer any additional legal, jurisdictional or warranty rights to you other that those set forth herein or required by law. If any portion of this warranty is held to be invalid or unenforceable for any reason, such finding will not invalidate any other provision.
Useful Product Life
Bicycles have an unquantifiable useful product life. The useful life span of a bicycle is affected by riding style, riding conditions, frame material and construction, and other factors. The warranty period offered by Marin does not guarantee that the bicycle will last forever, or for the life span of the original purchaser. Bicycles should be inspected regularly by an authorized Marin dealer, or qualified bicycle technician to identify any issues, which could lead to a failure. Whether a failed frame will be covered by this warranty, or not, will be determined solely by Marin Bikes, based on an evaluation of the failure, useful life, and any other relevant factors.
To Obtain Warranty Service: In order to exercise your rights under this limited warranty, the complete bicycle must be presented to an authorized Marin dealer for inspection, together with a receipt, bill of sale and other appropriate written proof of purchase, which identifies the bicycle by serial number. Any labor, postage, insurance, or shipping costs incurred in sending your product for service are the responsibility of the owner. Marin will not be responsible for products lost or damaged in shipping.
Warranty Determination: Once received by Marin or Authorized Marin Warranty Center, the product will be inspected to determine if it is covered by the Marin warranty. Only Marin or an Authorized Marin Warranty Center may determine if a product is warrantable. If the product is not covered under warranty, all replacement, repair, labor, and shipping costs are responsibility of the customer. Marin cannot return un-repairable unwarranted products to the consumer if they are unsafe to use in their unrepaired condition.
At no time may any retailer or distributor make representations of what is covered or not covered under this warranty without express written permission from Marin. Should a retailer or distributor replace product before consulting Marin, it is at the sole discretion of the retailer or distributor, and may not be reimbursed by Marin. When a product or part is exchanged, any replacement item becomes property of the customer and the returned product becomes the property of Marin, which may destroy it.
Warranty Exclusions
This warranty does not cover the following:
- Products that have been modified, neglected or poorly maintained, used for commercial purposes, misused or abused or involved in accidents. It is your responsibility to regularly examine the product to determine the need for normal service or replacement.
- Damage occurring during shipment of the products (such claims must be presented directly to the shipper).
- Products sold or distributed by Marin, which are covered by another sellers’ warranty; this Marin warranty does not extend, modify or replace any other warranty.
- Products whose serial number or other identifying marks (such as decals) have been altered, defaced or removed.
- Products that are purchased used, or in not-new condition without original packaging.
- Damage to products resulting from improper assembly or repair (or the techniques used), the use or installation of parts or accessories not compatible with the original intended use of the product, or the failure to follow the product warnings, installation and usage instructions.
- This warranty does not apply if the original product decals are removed
Suspension Setup
-
REAR SHOCK SETUP
Recommended Sag = 30%/19.5mm
Step 1: Set correct pressure in rear shock.
Step 2: Sit on the bike and cycle the suspension (*with correct riding gear).
Step 3: Reset O-ring and sit on the bike, DO NOT BOUNCE, carefully step off.
Step 4: Measure sag (from o-ring to seal of shock), If it does not match the bike’s recommended sag in millimeters repeat process.
Step 5: Adjust rebound setting to ensure proper control.
-
FORK SETUP
Marin recommends that all bikes front and rear suspension feel balanced
Step 1: After rear sag is set follow the recommended pressure from the fork manufacturer.
Step 2: Bounce evenly up and down on the bike, cycling the suspension up and down to make sure both front and rear suspension feel balanced, if the front does not match the rear add or release pressure.
Step 3: Once the bike feels balanced adjust the rebound damping to ensure proper control.
