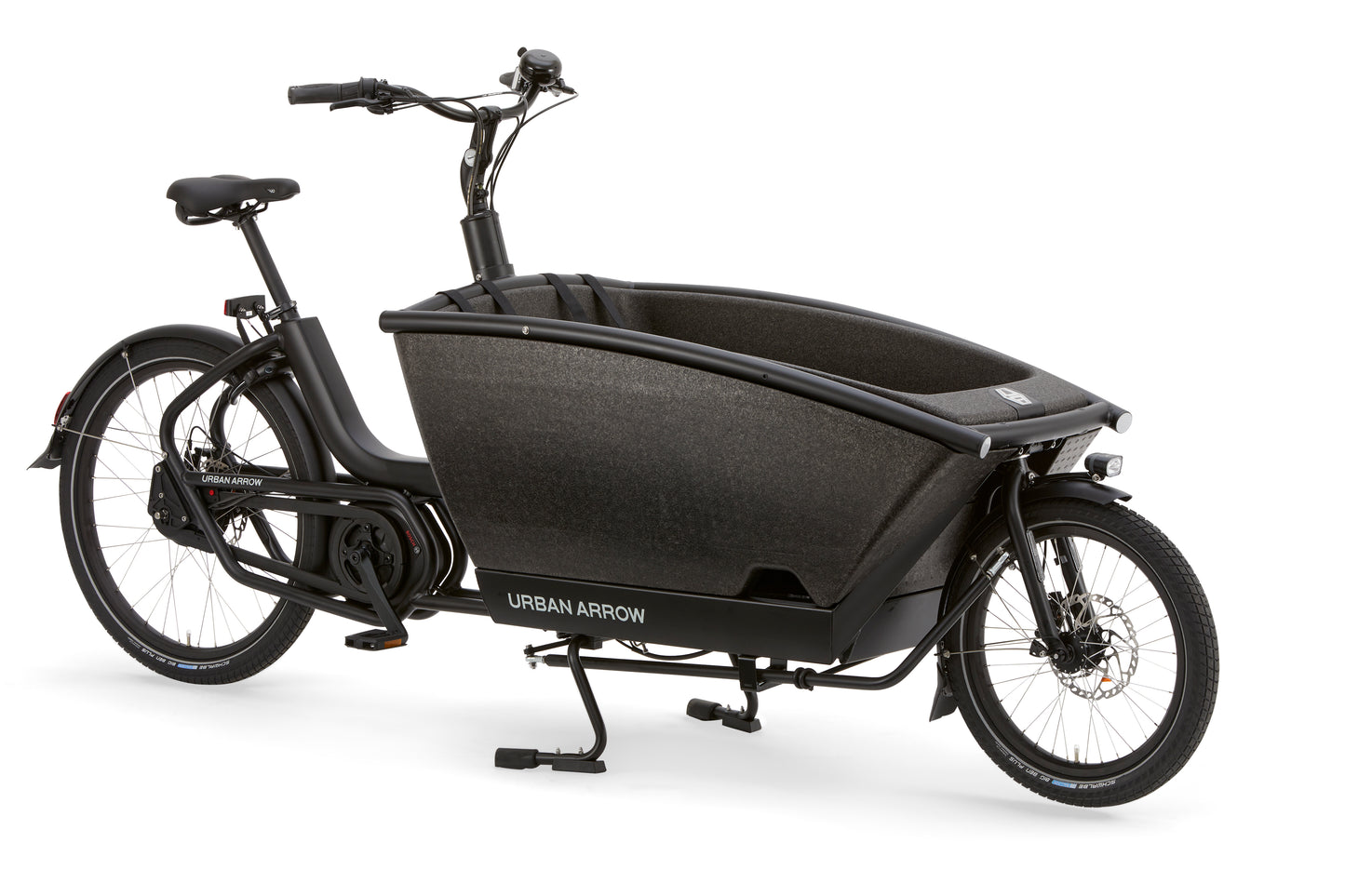

Urban Arrow: Family Cargo Line (Demo)
Urban Arrow: Family Cargo Line (Demo)
**Demo Model with less than 100km**
Premium Electric Cargo Bike for Families
The Urban Arrow Family Cargo Line is widely regarded as the world’s leading electric cargo bike for families, combining Dutch design, class-leading safety, and effortless electric assist. Built in the Netherlands and trusted by thousands of families worldwide, this front-load family cargo e-bike is designed to replace car trips with a smoother, healthier, and more joyful way to get around.
Powered by the Bosch Cargo Line motor rated at 85Nm torque, the Urban Arrow Family delivers strong, smooth assistance — even when fully loaded with kids, groceries, or gear. The motor is specifically engineered for heavy-load electric cargo bikes, making hills, starts, and stop-and-go riding feel effortless.
At the front, the iconic EPP foam cargo box provides outstanding impact protection, insulation, and durability. With seating for up to two children, integrated seatbelts, and optional accessories like a rain cover, extra bench, and infant seat adapter, the Urban Arrow Family is built for everyday school runs, errands, and weekend adventures — year-round.
Thanks to its low center of gravity, long wheelbase, and rigid frame design, the Urban Arrow Family offers exceptional stability and confidence, even for first-time cargo bike riders. It handles more like a standard bicycle than a loaded vehicle — a key reason it’s considered the benchmark in electric family cargo bikes.
Key Features
- Bosch Cargo Line motor — purpose-built for electric cargo bikes
- Front-load cargo design with low center of gravity for superior stability
- EPP foam cargo box — lightweight, weather-resistant, and impact-absorbing
- Seats up to 3 children with integrated safety belts
- Compatible with rain cover, accessories, and child seating options
- Made in the Netherlands with premium craftsmanship
Ideal For
- Families replacing car trips with an electric cargo bike
- School drop-offs, daycare runs, and grocery errands
- Parents looking for a safe, stable, and long-lasting family e-bike
- Urban and suburban riding, including hills
Why Buy the Urban Arrow Family from Reckless Shipyards
At Reckless Shipyards, we specialize in premium European e-bikes and cargo bikes. Every Urban Arrow Family is professionally assembled, fitted, and supported by our expert service team — plus access to test rides, accessories, and ongoing care.
👉 Book a test ride today and experience why the Urban Arrow Family Cargo Line is the most trusted electric cargo bike for families worldwide.
Share
Couldn't load pickup availability

Specifications
Battery
Range - Long running Bosch 500Wh
Frame And Fork
Frame - Aluminum Alloy - Powder-coated
Wheels And Brakes
Wheels - Ryde Andra 29 - 26", Ryde Andra 40 - 20"
Tires - Schwalbe Super Moto
Brakes - Magura / Tektro Hydraulic 180mm front, 203mm rear
Brake Levers - Magura / Tektro
Motor
Motor - 250W Mid drive (80Nm of torque
Shimano Alivio 9 speed
Shimano 11-32T 9 speed
Full Spec
FRAME Aluminum Alloy - Powder-coated
BOX Expanded Polypropylene (EPP) foam
DRIVE UNIT Bosch Performance Cargo Line with 85nm torque
BATTERY Long running Bosch 500Wh
COMPUTER Bosch Kiox
COMPUTER MODES Eco, Tour, Sport, Turbo
MAX ASSISTED SPEED 32km/h
RANGE
50-100km
CHARGE TIME
0-80% - 2 Hours
0-100% - 4 Hours
HEADSET
STEM 110mm 31.8mm adjustable
HANDLEBAR Ergotec Moon Cruiser 31.8mm
GRIPS Ergon GC10
SEATPOST UA Custom
SEAT
Selle Royal Rio Plus
BRAKES Magura / Tektro Hydraulic 180mm front, 203mm rear
BRAKE LEVERS Magura / Tektro
SHIFTER Enviolo Twist Display Pro
FRONT HUB Alloy Disc
REAR HUB Enviolo Heavy Duty - 330%
SPOKES Stainless steel, 36H, 13G
RIMS Ryde Andra 29 - 26", Ryde Andra 40 - 20"
TIRES Schwalbe Super Moto
BOTTOM BRACKET Bosch Sealed
CRANKS Miranda
COGSET Gates 22T for Enviolo
PEDALS VP836
KICKSTAND Integrated spring loaded
RACK Optional
FENDERS SKS PET 65R
LOCK ABUS Cafe Lock
LIGHTING Lezyne Power E115 & Spanninga Plateo XE
STEERING DAMPER No
KIDS STEP Integrated Mouse Holes on either side
SEAT BELTS 2 x Three Point Harnesses
BIKE DIMENSIONS 255 x 65 x 110 cm
BOX DIMENSIONS +/- 90cm x 61cm x 86cm
RIDER CAPACITY 125kg
BOX CAPACITY 125kg
BIKE WEIGHT 51 kg / 112 lbs
Manufacturer Warranty
What are the warranty conditions for the different parts of the Urban Arrow Family?
If (a part of) your Urban Arrow is defect or no longer works properly, visit your Urban Arrow dealer within 2 months of noticing the defect. The dealer is aware of our guarantee conditions and can assess whether the defect falls within the guarantee.
Has the dealer determined that the defect may fall within our warranty? Then they can submit a warranty request to us. This application will be assessed and processed by us. At Urban Arrow, we will assess whether the warranty is applicable. The dealer will send the part in question together with the purchase invoice to us, stating the complaint, after which (if applicable) replacement items will be sent to the dealer.
Please note! Your dealer may charge for any assembly, disassembly or transport costs.
The following warranty conditions apply to your Urban Arrow*:
- 5-year warranty on the frame and fork, excluding wear parts;
- 2-year guarantee on the paintwork and visible rust from the inside;
- 2-year warranty on all other parts. Wear parts such as tyres, chain, pedals, bearings, seatbelts, ball bearings among others, are not covered by this warranty;
- 2-year warranty on all accessories;
- 2-year warranty on the battery. The capacity of the battery will decrease depending on the number of charging cycles and the life of the battery. This reduction in capacity is not covered by the warranty;
- During the valid warranty period(s), all parts which Urban Arrow has determined to have a construction or material defect will be repaired or reimbursed at Urban Arrow's discretion.
- The manufacturer's warranty can only be claimed on presentation of the original purchase invoice.
*All conditions apply from the date of purchase and only apply to the first owner.
Your warranty becomes invalid or inapplicable if your Urban Arrow and/or its parts:
- Has been modified in construction. Never make changes to your electric drive unit or other products suitable to improve the performance of your e-bike;
- Has had inadequate maintenance;
- Has been abused or been involved in an accident;
- Has defects due to normal wear and tear;
- Has been damaged during transport;
- Has been damaged by attachments (such as bags) not sold or manufactured by Urban Arrow;
- Has been used other than for which the product is intended;
- Despite damage and/or defects having been found, use has continued and as a result has worsened the damage;
- Has not been serviced/repaired by an authorised Urban Arrow dealer.
More info can be found here.
